- Merk: X-Security
- Productcode: XS-IPD909A-4P-DL-WIZ
- Levertijd: Op voorraad
                        Om te bestellen en prijzen te kunnen zien moet u zich registreren of inloggen.
To order and view prices you must register or login.

              To order and view prices you must register or login.

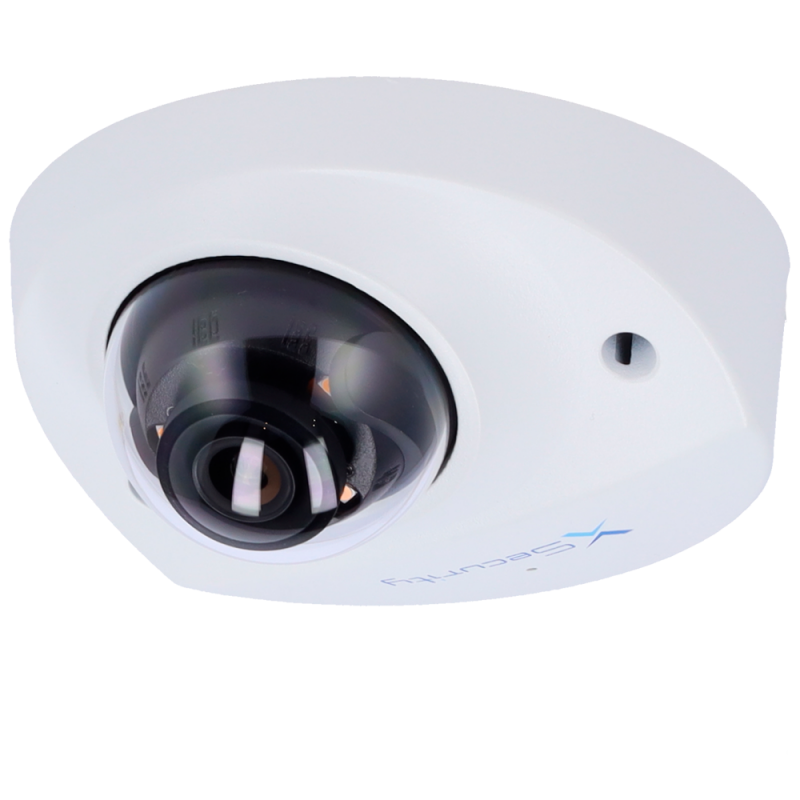

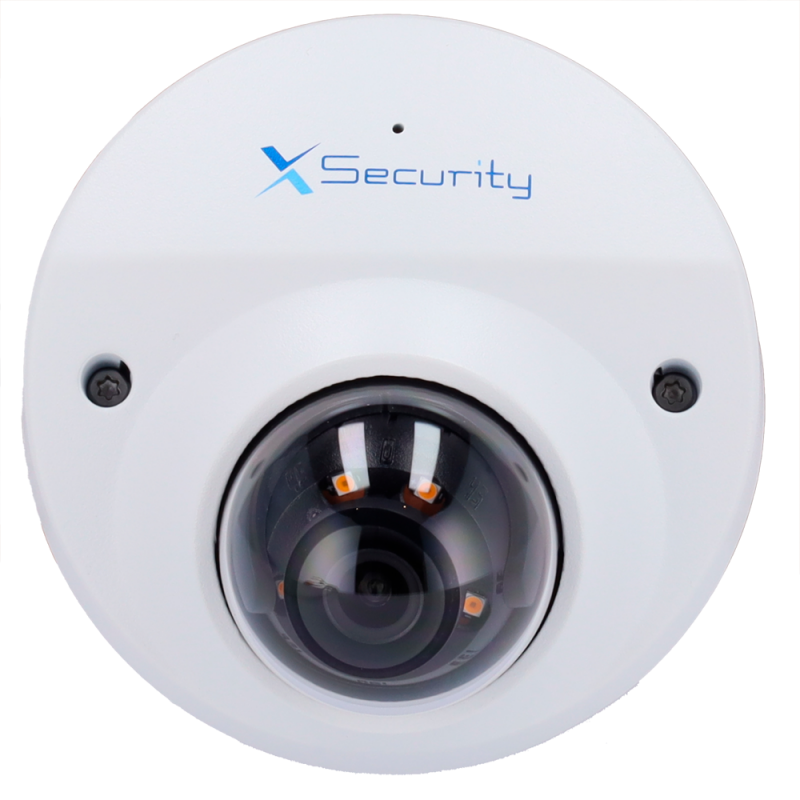

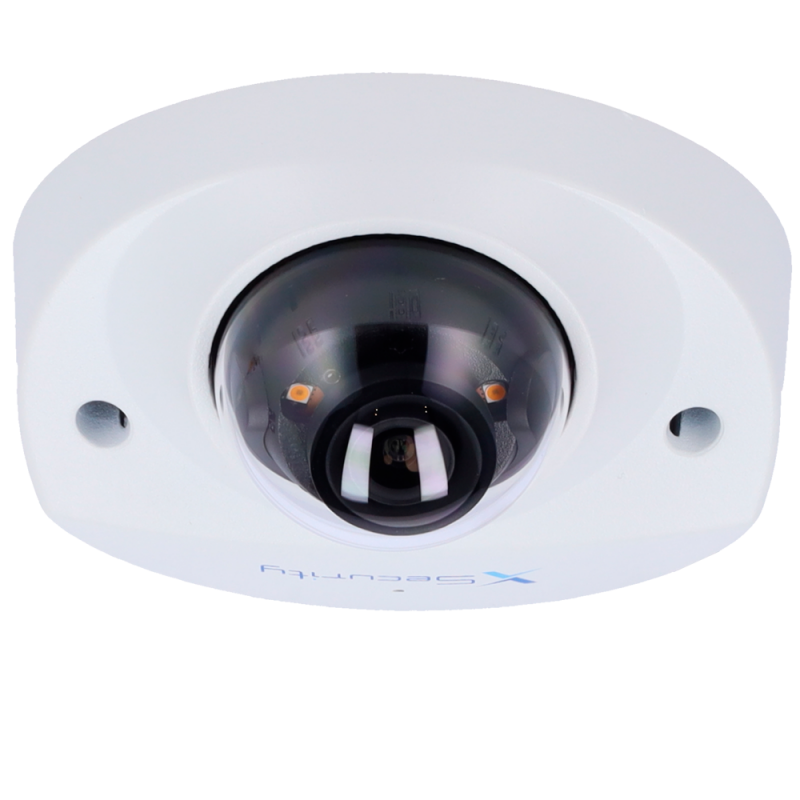

X-Security Mini Dome IP Camera - 4 Megapixel (2688x1520) - 2.8mm fixed lens - WDR 120dB | Dual Light(IR 60m and White Light 60m) - WizSense, with human and vehicle classification - MicroSD 256GB / IP67 & IK10
- X-Security
- Mini Dome IP Camera with Dual Light
- PRO Range
- 1/2.9" Progressive CMOS
- 4 Megapixel (2688×1520)
- 2.8mm lens
- 0.006 Lux
- Dual Light: IR30m + 30m White LED
- Compression H.265+/H.265/H.264+/H.264
- RJ-45 10/100 BaseT
- SMD Plus
- IVS WizSense: classification of human and vehicle
- Intelligent search
- Built-in microphone
- Audio
- Alarms
- WDR 120dB
- IR Cut
- MicroSD up to 256GB
- PoE IEEE802.3af
- Weatherproof IP67
- Vandal proof IK10
- ONVIF Compatible
ToolBox V1_008_0000000_5 build 20180524
ToolBox Suite 2022 V1.010.0000001.0.R.20220302
SmartPlayer-Win32_Eng_IS_V4.003.0000000.0.R.230519 V4.003.0000000.0.R.230519
Disk Calculator_v.3.02.1 V3.02.1
Smart PSS for Mac V2.003.19FU001.0.R.20230512 V2.003.19FU001.0.R.20230512
SmartPSSLite_V1.003.0000006.0.R.240517 V1.003.0000006.0.R.240517
ConfigTool_V5.001.0000005.0.R.20240925 V5.001.0000005.0.R.20240925
Smart PSS for Mac V1.003.0000002.0.R.240620 V1.003.0000002.0.R.240620
| General | |
| Dimensions | 55 (D) x 108.9 (Ø) mm |
| Dual Light | Detection modes: Intelligent Mode (By default, IR activated and switches to white LED in the presence of a target) IR mode |
| Internal storage | 256 GB microSD card slot |
| Material | Metallic |
| Video Bit Rate | H.264: 32 kbps–6144 kbps H.265: 12 kbps–6144 kbps |
| Audio compression | G.711a; G.711Mu; G.726; PCM |
| Image sensor | 1/2.9” CMOS image sensor |
| IVS (Perimeter Protection) | Intrusion, tripwire (both functions support the accurate classification and detection of vehicles and persons) |
| Range performance | 63.6 (D), 25.4 (O), 12.7 (R), 6.4 (I) |
| Main Stream Rate | 2688×1520@(1–20 fps) / 2560×1440@(1–25/30 fps) |
| Maximum resolution | 4 Megapixel (2688 × 1520) |
| Power Supply | DC 12 V / 2.5 W, PoE IEEE802.3af |
| Color | White |
| Extra Stream rate | 704 × 576@(1–25 fps) / 704 × 480@(1–30 fps) |
| Network Interface | Ethernet 10/100m BaseT |
| Remote Access | WEB, CMS (DSS/PSS), Smartphone and NVR interface |
| Interoperability | ONVIF (Profile S/Profile G); .CGI; P2P |
| Weight | 410 g |
| Lens | 2.8 mm (H: 102°; V: 54°; D: 121°) |
| Lens Adjustment | 3 Axis |
| Audio | Built-in microphone |
| Minimum illumination | 0.006 lux@F1.6 (Colour, 30 IRE) 0.0006 lux@F1.6 (B/W, 30 IRE) 0 lux (Illuminator on) |
| Image improvements | WDR (120 dB), BLC, HLC, AWB, AGC, 3D-NR, ROI , Smart IR |
| Temp. operation | -40º C ~ +60º C |
| Degree of protection | Waterproof IP67, Anti-vandal IK10 |
| Compression | H.265; H.264; H.264H; H.264B; MJPEG |
