- Merk: Milesight
- Productcode: MS-TS5511-GH
- Levertijd: On Request
Om te bestellen en prijzen te kunnen zien moet u zich registreren of inloggen.
To order and view prices you must register or login.
To order and view prices you must register or login.

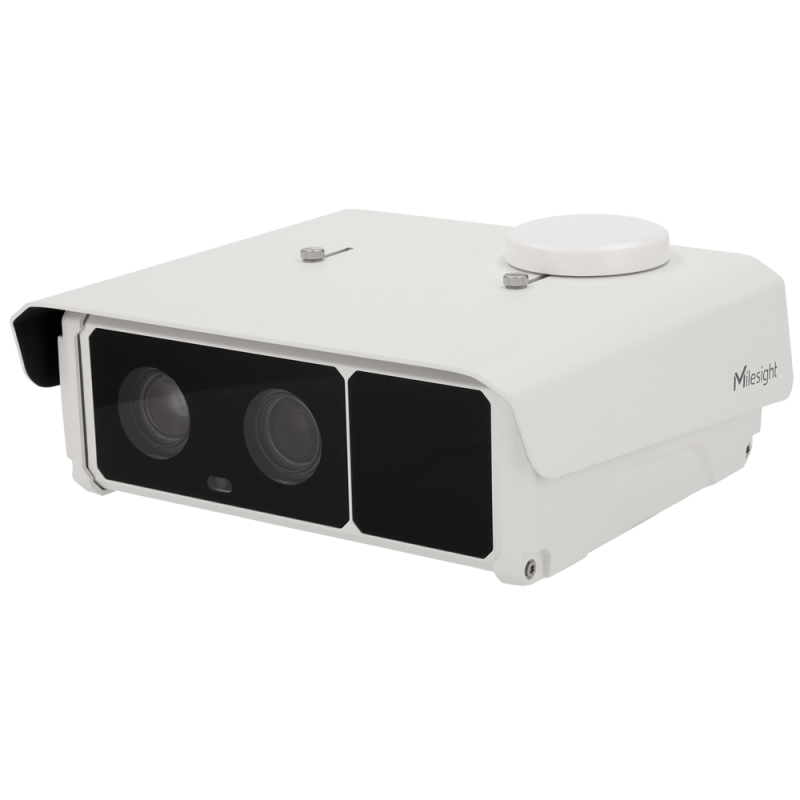

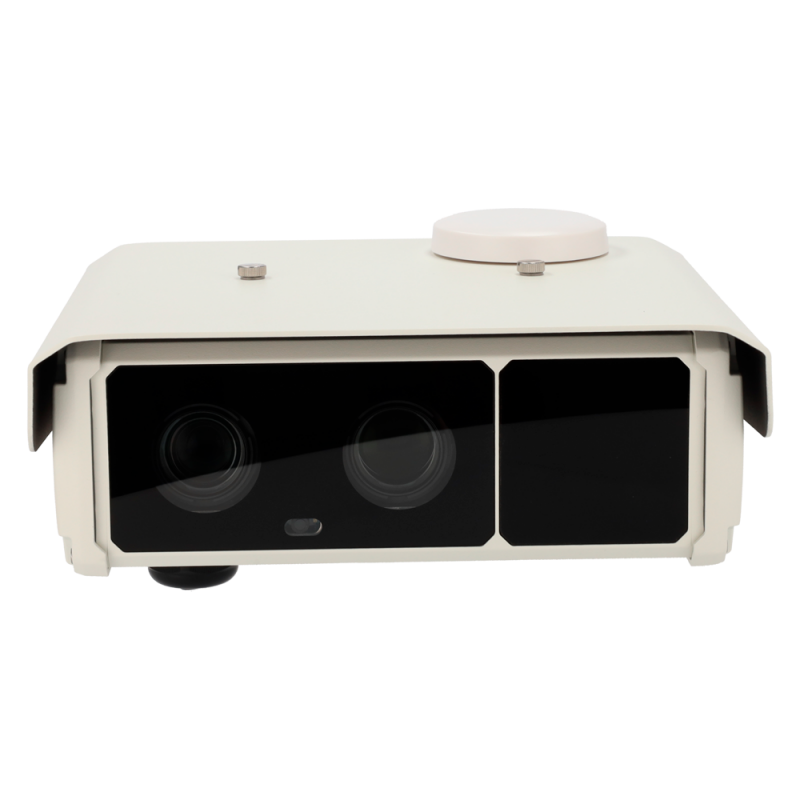

5Mpx verkeerscamera voor detectie van verkeersovertredingen - 2/3" globale sluiter. 15~50mm gemotoriseerde lenzen - Dubbele lens (OCR + omgevingsbeeld) - Detectie van verkeersovertredingen - IR60m | MicroSD tot 1TB | ONVIF & RTSP
- Milesight
- Dubbele IP-camera voor detectie van roodlichtovertredingen
- 2/3" Global Shutter
- 2x 5 megapixel (2592x1444) @ 30 fps - Gemotoriseerde varifocale lens
- 0 lux
- IR-bereik 60 m
- Registratie van kentekenplaten op voertuigen tot 250 km/u
- Bewaking van maximaal 4 rijstroken (installatie op de weg)
- Detectie van verkeersovertredingen
- Roodlichtdetectie: Alarmmelding bij overschrijding van een rood licht
- Detectie van de status van het verkeerslicht via videoanalyse en alarmingang
- Vastleggen van maximaal 3 beelden
- Compressie H.265+/H.265/H.264+/H.264
- RJ-45 10/100/1000 Mbps BaseT
- Audio
- Alarmen
- WDR (120 dB)
- MicroSD-kaart tot 1 TB
- WEB- & API-interface
- Compatibel met ONVIF
- Waterdicht IP67
| General | |
| Attributes Identification | Plate Color, Vehicle Type, Vehicle Color, Vehicle Brand, No-plate Vehicle Capture |
| Capture Rate | Up to 99% |
| Country Region Supported | More than 74 countries and regions |
| Dimensions | 121mmx295mmx245mm (Without Mounting Bracket) |
| Encryption Protocol | FIPS 186 |
| Image Capture | Stores 6 overview snapshots and 2 LPR snapshots per violation |
| Image Setting | Brightness/Contrast/Saturation |
| Language Support | Chinese, English, Arabic, Greek |
| LPR Smart Search | Support |
| Max. ANPR Range | Up to 50m |
| Max. FPS | 45fps |
| Max. Vehicle Speed | 250 km/h |
| Power Consumption | 22W MAX 26W MAX (With IR on) |
| Recognition Accuracy | Up to 98% |
| Supplement Light | |
| System Compatibility | API, HTTP, TCP, MQTT, ONVIF Profile G & S & T |
| Video Bit Rate | 16Kbps~16Mbps (CBR/VBR Adjustable) |
| Violation Management | Red Light Running, Cross Line at Red Light, Minimum Red Time for Valid violation, Reverse Driving, Vehicle Attributes Event Detection |
| White/Black List | Up to 2000 records inside the camera |
| Wireless Network (Optional) | Cellular 4G LTE NA: B2/B4/B5/B12/B13/B25/B26 EU: B1/B3/B7/B8/B20/B28 AU: B1/B2/B3/B4/B5/B7/B8/B28/B66 SIM Card Nano SIM |
| Working Temperature | -40°C ~ 70°C |
| Image sensor | Color, 2/3" Global Shutter |
| Max. Resolution | 2464x2056 |
| Min. Illumination | Color: 0.001 Lux@(F1.4, AGC ON) |
| Power Supply | 24 V DC/AC |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 1TB |
| Coverage | Recommended for 2~3 lanes |
| Weight | 4.3Kg |

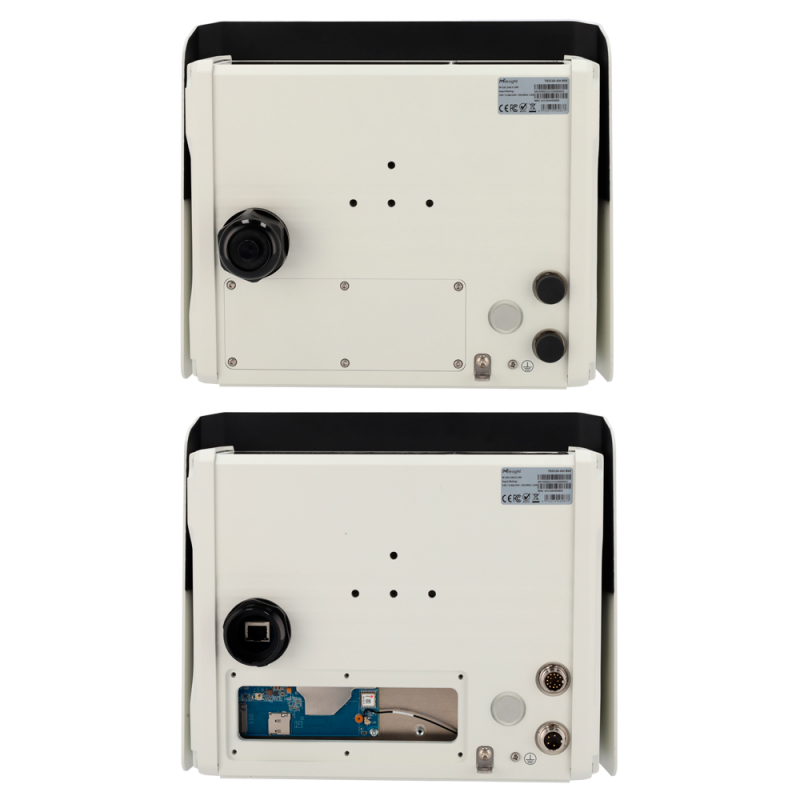

| Interface | Ethernet: 1*RJ45 10M/100M/1000M Ethernet Port / RS485: Support / Input: 4 * Optoisolated Input / Output 2 *Strobe Output and 1 * Relay Output |
| Working Humidity | 0~95% (Non-condensing) |
| Lens | 15-50mm, Motorized zoom and focus |
| Logs | Log and filter the type of each violation as CONFIRMED, INVALID, FALSE START, STOPPED and UNKNOWN |
| Privacy Masking | Supports up to 8 mosaic areas per sensor |
| Day / Night | Day/Night/Auto |
| Housing | Vandal-proof IK10-rated metal housing Up to IP67-rated for Weather-resistant Performance |
| Video Compression | H.265/H.264/MJPEG |

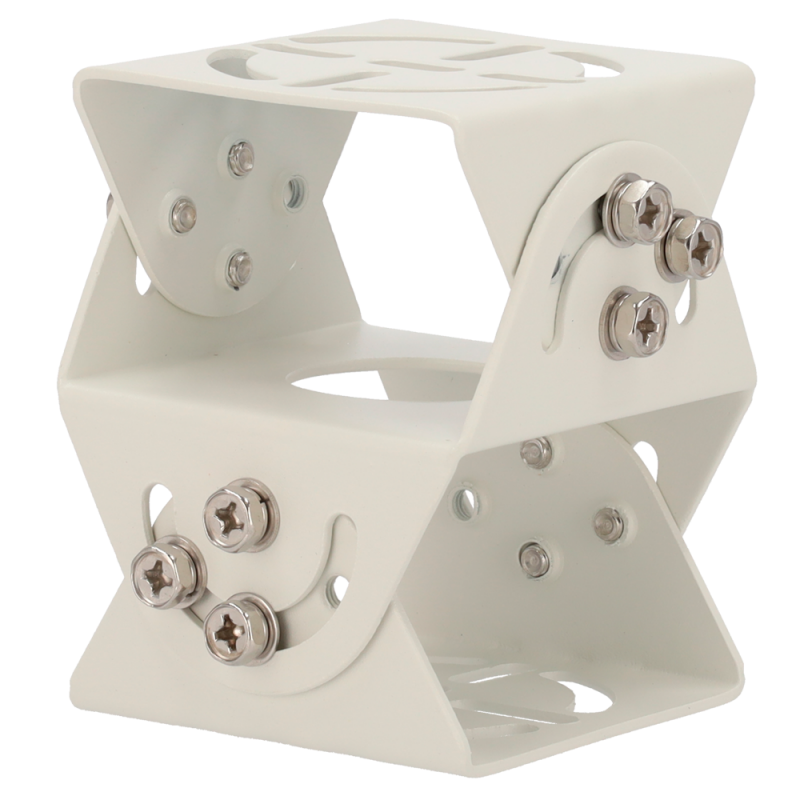

| Mount Type | Custom mount |
| Field of View | horizontal FOV 41.4° to 10.3°, vertical FOV 26.8° to 8.42°, diagonal FOV 32° to 13.3° |
| Shutter Time | 30 us- 40000 us |
| GPS | Built-in High-accuracy GPS Module |
