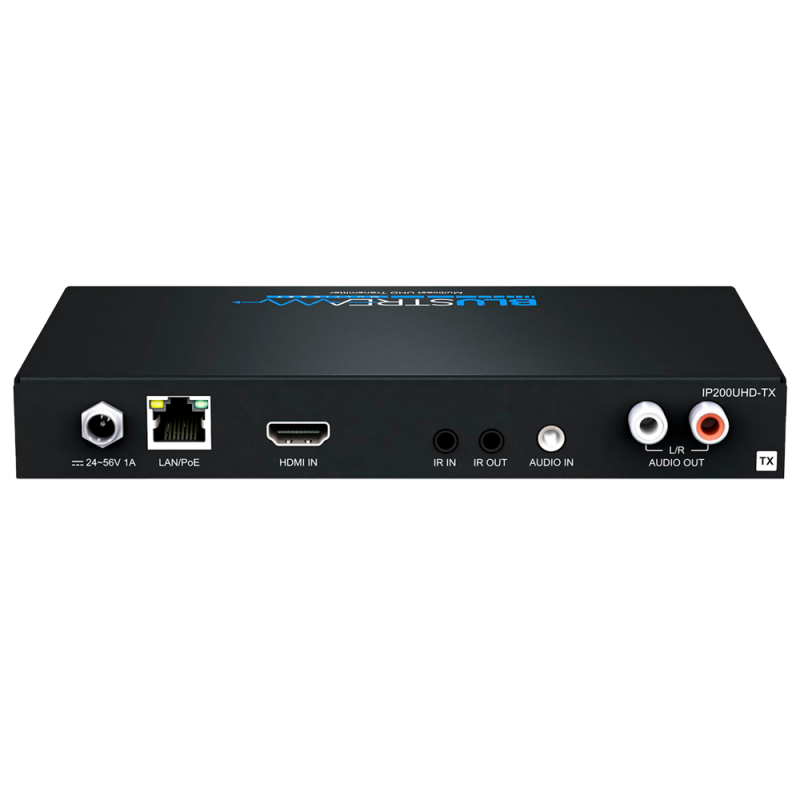

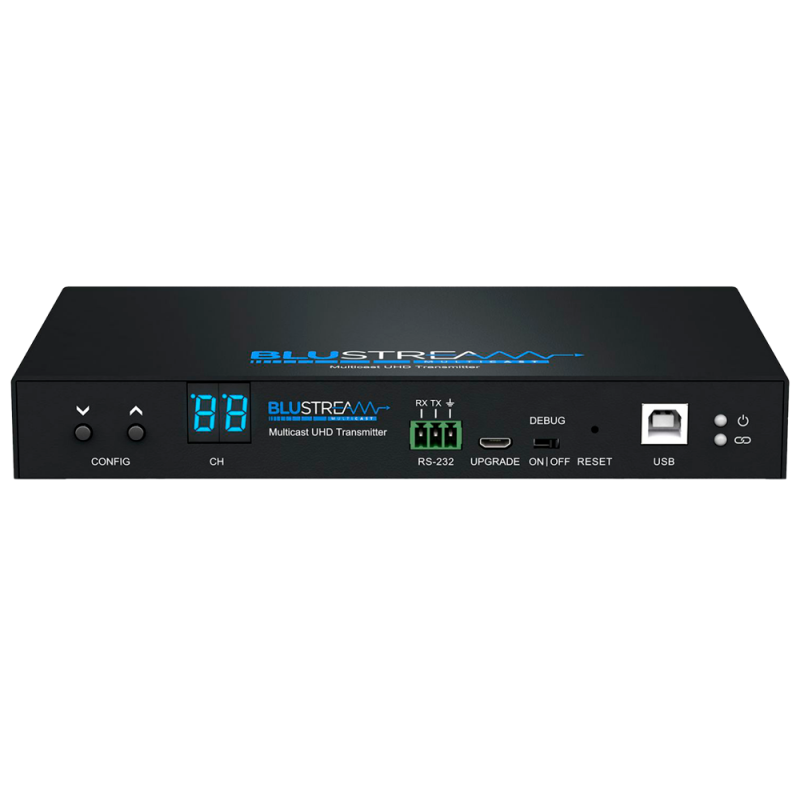

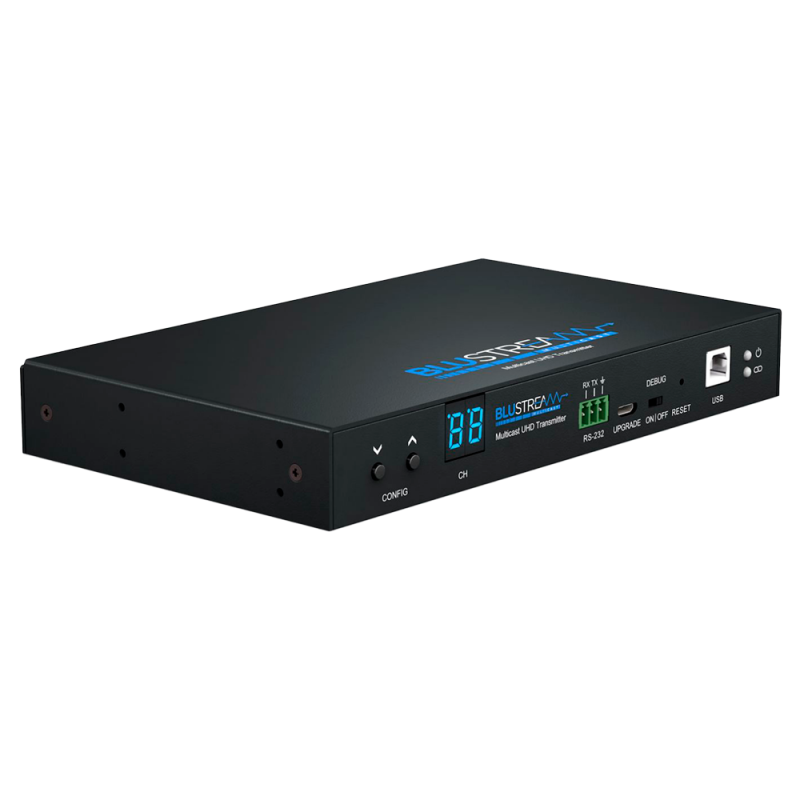

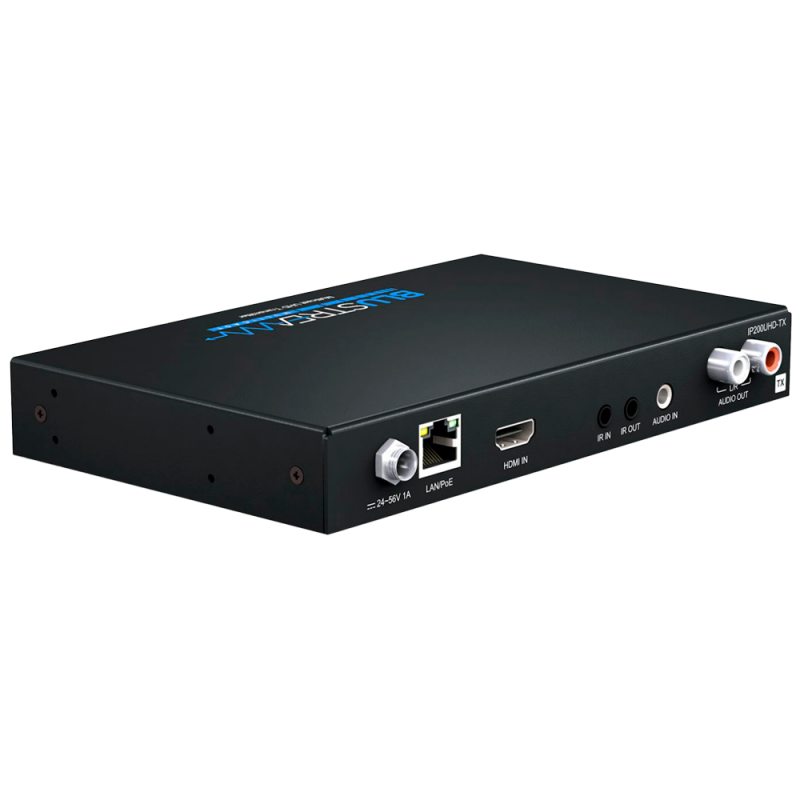

Video over IP transmitter - UHD resolution - 1 HDMI input - 1 LAN output (RJ45) - KVM function

Om te bestellen en prijzen te kunnen zien moet u zich registreren of inloggen.
To order and view prices you must register or login.

Omschrijving

Datasheet

package contents

Specificaties

General
Dimensions	190mm (W) x 114mm (H) x 25mm (D)
EDID	HDCP 2.2
Ethernet port	1x LAN (RJ45)
Functionalities	- Distribution matrix (requires a network switch of 1GB) - Video Wall (requires a network switch of 1GB) - HDMI Extender 1:1 (no network switch required) - HDMI Extender 1:N (no network switch required)
IR inputs	1x 3.5mm Jack stereo
IR outputs	1x 3.5mm Jack mono
KVM/USB port	1x USB-B
Latency	1 frame (16-33ms)
Serial port RS232	1x Phoenix series connector 3 pins
System upgrades	1x Micro-USB
Audio Input	1x 3.5mm (Analog Audio L/R)
PoE	- 6.0W (typical) - 7.2W (maximum load)
Power Supply	24V ~56V
Resolution	- 3840x2160@30Hz 4:4:4 - 4096x2160@24Hz 4:4:4 - 4K@60Hz 4:2:0
Range	100m on CAT cable
Video Input	1x HDMI
Video Output	1x LAN (RJ45)
Weight	0.8kg
Audio Outputs	- Dolby TrueHD - Dolby Digital Plus - DTS-HD Master Audio
Temp. operation	0ºC ~40ºC
