- Merk: InfiRay
- Productcode: IRS-XSENTRY-UM619
- Levertijd: Op voorraad
Om te bestellen en prijzen te kunnen zien moet u zich registreren of inloggen.
To order and view prices you must register or login.
To order and view prices you must register or login.
InfiRay panoramische thermische camera - 640x512 VOx | 19mm lens - Pixelgrootte 15 μm - Thermische gevoeligheid ≤40 mK - Resolutie 9900 x 512

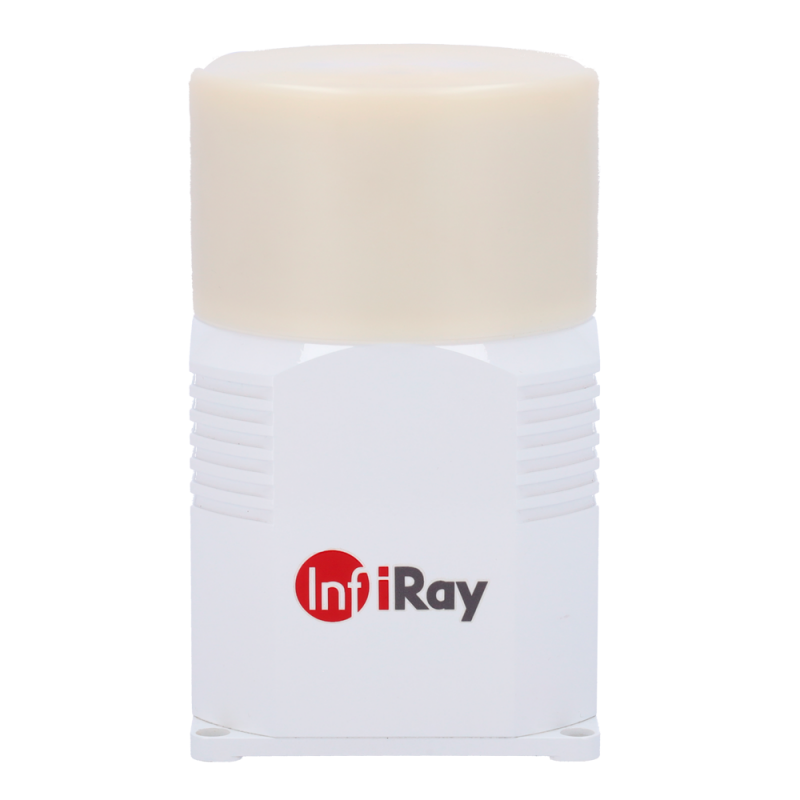

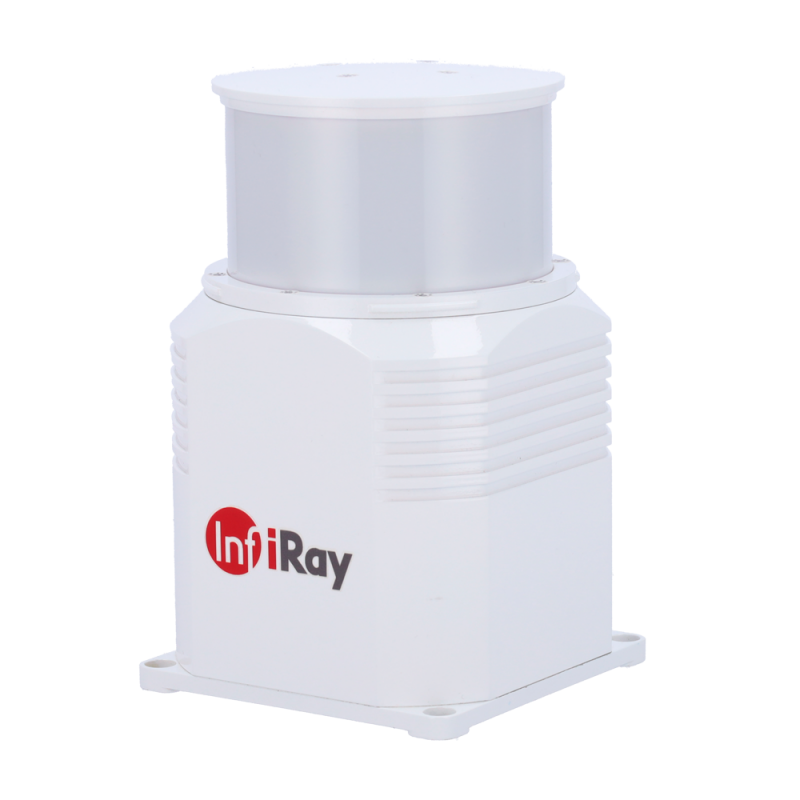

- InfiRay - Panoramische warmtebeeldcamera
- Thermische sensor 640x512 VOx
- 19mm lens
- Thermische gevoeligheid ≤40mK
- Pixelgrootte 15μm
- Resolutie 9900 x 512
- RJ-45 10/100M BaseT
- 24VDC 15W
- Weerbestendig IP66

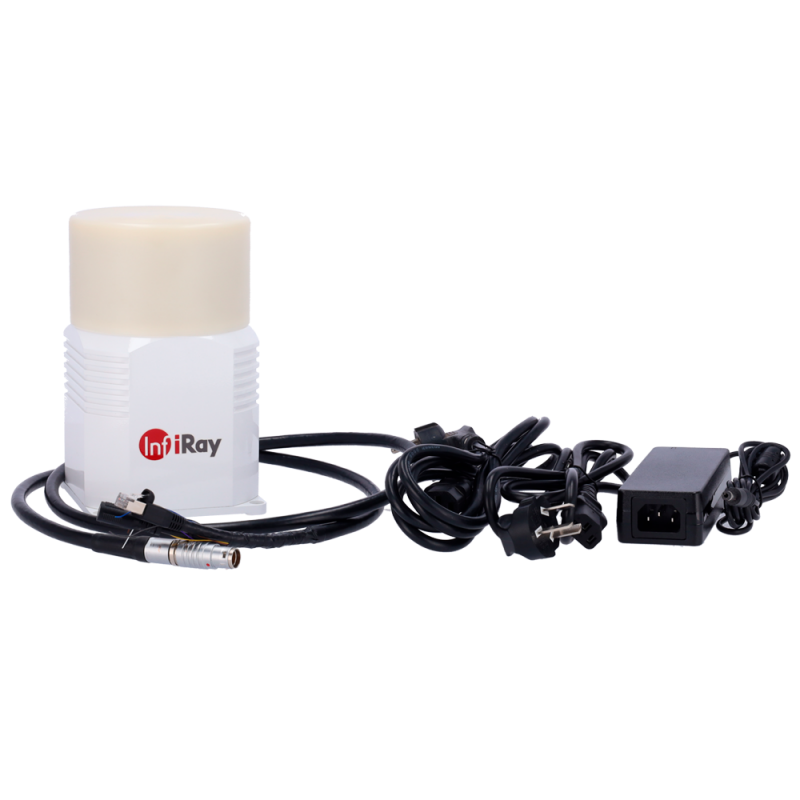

- InfiRay panoramische warmtecamera
- Voeding
- Kabelaansluitingen

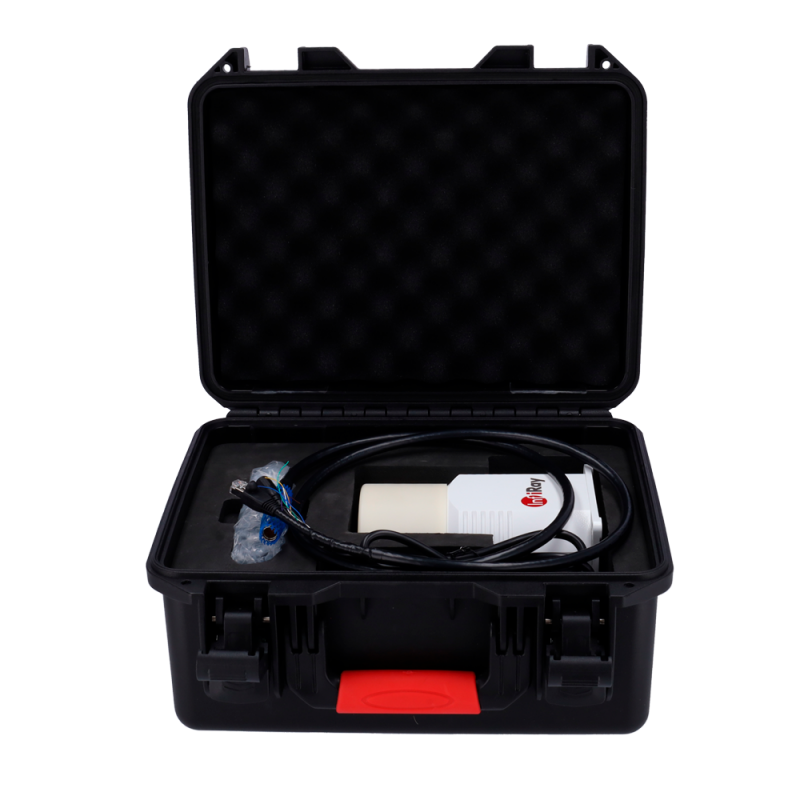

- Draagtas
| General | |
| Dimensions | 108 x 112 x 184 mm |
| Scan speed 180º | 1,23Hz |
| Scan speed 360º | 0.61Hz |
| Thermal sensor resolution | 640x512 |
| Pixel Pitch | 15μm |
| Thermal sensor | VOx FPA niet-gekoeld |
| Power Supply | 24VDC, max.15W |
| Network Interface | Ethernet 10/100M BaseT |
| Remote Access | Infiray XSENTRY Software |
| Weight | ≤2100 g. |
| Lens | 19mm |
| Thermal sensitivity | ≤40mK |
| Video Resolution | 9900 x 512 |
| Viewing angle | 360°×18.4° |
| Spectral range | LWIR 8~14μm |
| Temp. operation | -40ºC~+60ºC |
| Degree of protection | Weerbestendig IP66 |
