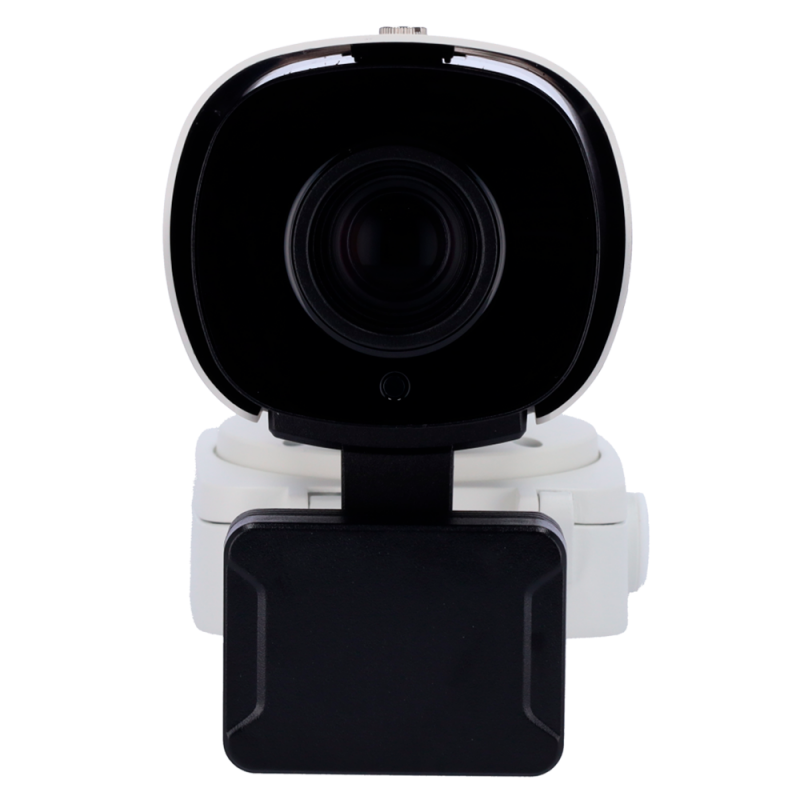

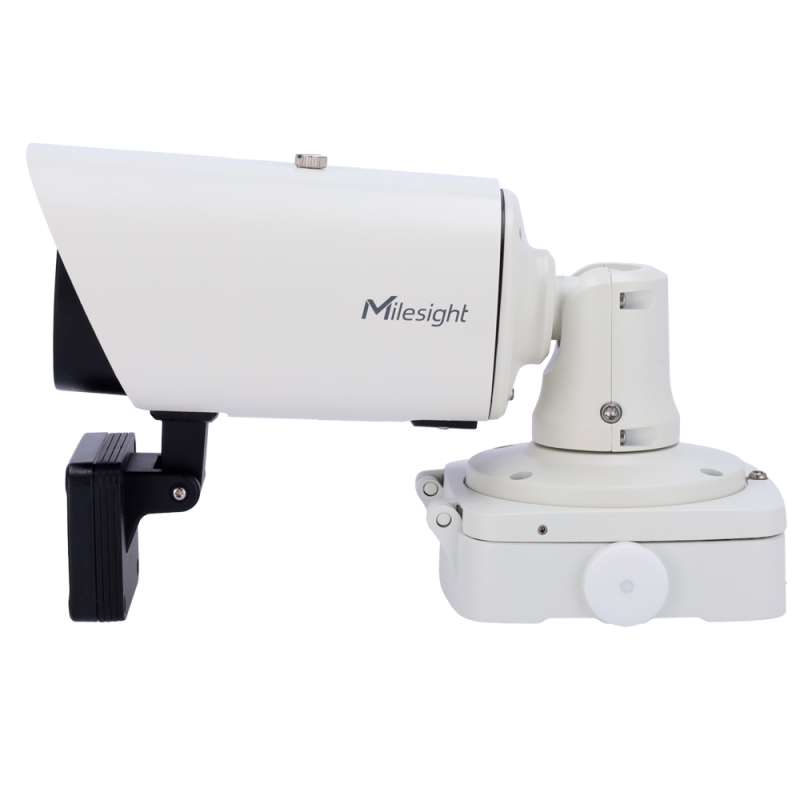

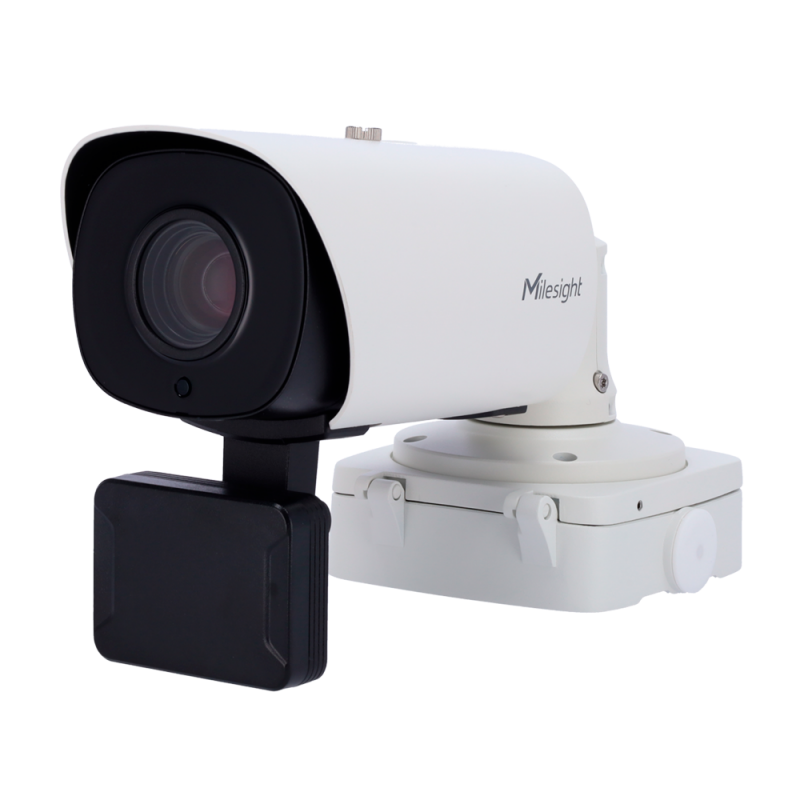

Verkeerscamera 5Mpx met radarsnelheidscamera - 1/2,8" Progressive Scan CMOS - OCR-functie, geïntegreerde kentekenplaatlezer - 5,3~64mm gemotoriseerde autofocuslens - IR100m | WDR (120dB) - Detectie van verkeersovertredingen
  • Merk: Milesight
  • Productcode: MS-TS5366-X12VPE
  • Levertijd: Op voorraad
Om te bestellen en prijzen te kunnen zien moet u zich registreren of inloggen.
To order and view prices you must register or login.

Verkeerscamera 5Mpx met radarsnelheidscamera - 1/2,8" Progressive Scan CMOS - OCR-functie, geïntegreerde kentekenplaatlezer - 5,3~64mm gemotoriseerde autofocuslens - IR100m | WDR (120dB) - Detectie van verkeersovertredingen


  • Milesight
  • IP-verkeerscamera met kentekenherkenning en snelheidsradar
  • 1/2,8" Progressive Scan CMOS
  • 5 megapixel (2592x1444) @ 30 fps - Gemotoriseerde varifocale lens 5,3~64 mm autofocus
  • 0 lux
  • IR-bereik 100 m
  • Kentekenherkenning tot 200 km/u
  • Monitort tot 4 rijstroken
  • Detectie van verkeersovertredingen
  • Snelheidsdetectie met Radar 3D
  • Compressie H.265+/H.265/H.264+/H.264
  • RJ-45 10/100/1000 Mbps BaseT
  • Audio
  • Alarmen
  • Waarschuwing bij detectie van een kenteken op de lijst van ongeregistreerde kentekens
  • PoE+ IEEE802.3at
  • IR-onderdrukking
  • WDR (120 dB)
  • Registratie en opslag van kentekenplaten op MicroSD-kaart
  • WEB-, CMS-, smartphone- en NVR-interface
  • ONVIF-compatibel
  • Weerbestendig IP67 - Anti-vandaal IK10



  • IP bulletcamera LPR
  • Installatiemateriaal
  • CD met software en instructies
  • Sjabloon voor eenvoudige installatie

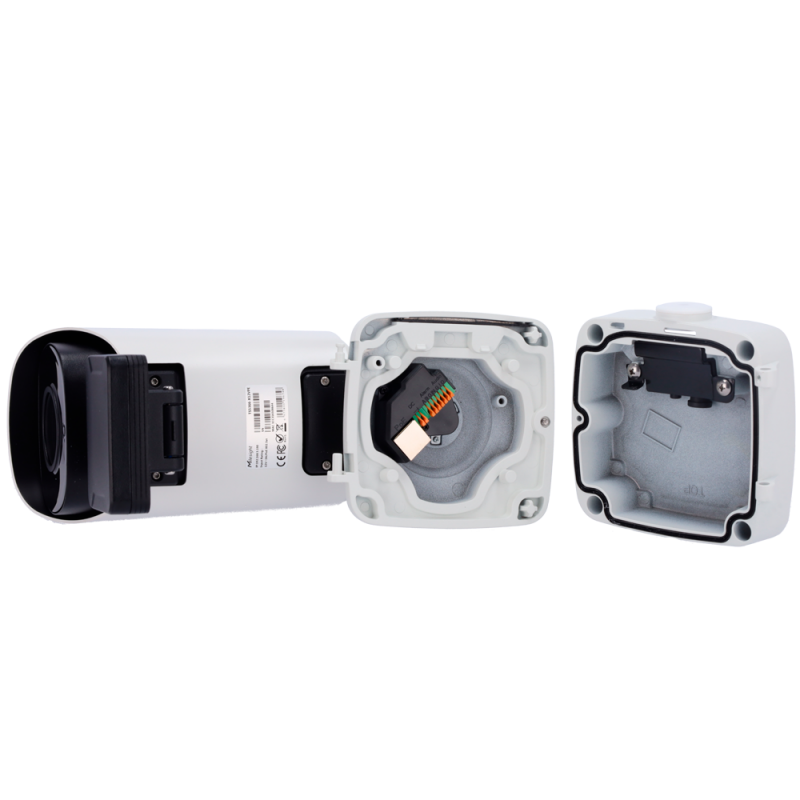

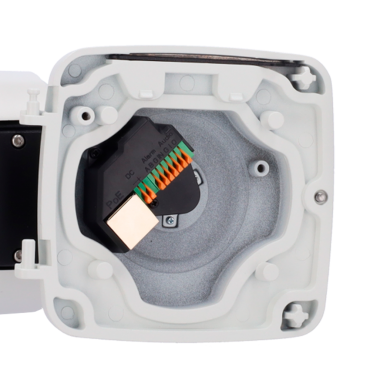

  • Aansluitdoos

alt


Camera
Day/Night Mode Day/Night/Auto/Customize/Schedule
Image Sensor 1/2.8″ Progressive Scan CMOS
IR Wave Length 850nm (Default); 740nm (Optional)
Name AI Road Traffic Radar Pro Bullet Plus Camera
S/N >55dB
Shutter Time 1/100000s∼1s
WDR 120dB Super WDR
Min. Illumination Color: 0.008Lux@F1.6 B/W: 0Lux with IR on
Illumination Distance Up to 180m
Radar
Angle Measurement Accuracy ±0.5°
Capture Rate >99% (Traffic jam >95%)
Detection Distance Up to 90m
Distance Detection Accuracy ±0.4m
Installation Height 2~7m
Lane Coverage 1~4 Lanes (Recognition ≥95% individually）
Speed Detection Accuracy ±0.36km/h
Speed Detection Range ±5km/h~±120km/h
Tracking Target Up to 32
Working Frequency 60GHz, 61~62GHz
Road Traffic Management
ANPR Distance Up to 150m during the day; Up to 80m during the night with illumination
Attributes Identification Plate Color, Vehicle Type, Vehicle Color, Vehicle Brand, No-plate Vehicle Capture, Vehicle Direction Detection, Speed Detection, Traffic Flow Detection
Country/Region Supported More than 80 countries and regions
Coverage 2 lanes
LPR Smart Search Support
Max. Vehicle Speed 120km/h
Recognition Accuracy >95%
Smart Traffic Function Evidence Camera Linkage, Specific Lane Management
Lens
Aperture F1.6~F2.8
Field of View H57°~H4°/D69°~D5°/V44°~V1°
Focus Control Auto/Manual
Iris Control Auto
Lens 5.3~64mm, 12X Optical Zoom
Mount Φ14
Video
Image Settings Saturation/Brightness/Contrast/Sharpness
Max. Image Resolution 2592x1944
Primary Stream 60Hz: 30fps@(2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 25fps@(2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
ROI Up to 8 areas
Secondary Stream 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240)
Video Bit Rate 16Kbps∼16Mbps (CBR/VBR adjustable)
Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Privacy Masking Up to 8 Areas (Mask Area and Mosaic Area are optional)
Network
Network protocols IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2
Network Storage NAS(Support NFS, SMB/CIFS), ANR
Interface
Alarm I/O 1/1
Audio I/O 1/1
Ethernet 1*RJ45 10M/100M Ethernet Port
Audio
Two-way Audio Support
Audio compression G.711/AAC/G.722/G.726
Audio Sampling Rate 8/16/32/44.1/48KHz
Audio Bit Rate 16~256kbps
System
Advanced Function BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
Event Action FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc
Event Trigger Black/White List, Attributes Event, Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
SIP/VoIP Support Yes, Voice&Video-over-IP
Storage Support microSD/SDHC/SDXC Card Local Storage, up to 1TB
System Compatibility API, HTTP, TCP, ONVIF Profile G & M & S & T
General
Dimensions 320mmX134mmX171mm
Power Consumption 9W MAX 15W MAX (With IR on)
Surge Protection 4KV
White/Black List Up to 20,000 records inside the camera
Working Temperature -40℃∼60℃
Power Supply PoE (802.3at) / DC 12V±10%
Weight 1623g
Working Humidity 5~90%(Non-condensing)
Housing Up to IP67-rated for weather-resistant performance
