X-Security Pinhole Camera Kit - 4 Megapixel (2688x1520) | 2.8mm lens - WDR(120dB) | 3DNR | Audio | alarms - Capacity for 3 streams - H.265+/H.265/H.264+/H.264 compression - IEEE802.3af PoE
  • Merk: X-Security
  • Productcode: XS-IPMCKIT-4U-L5
  • Levertijd: Op voorraad
Om te bestellen en prijzen te kunnen zien moet u zich registreren of inloggen.
To order and view prices you must register or login.

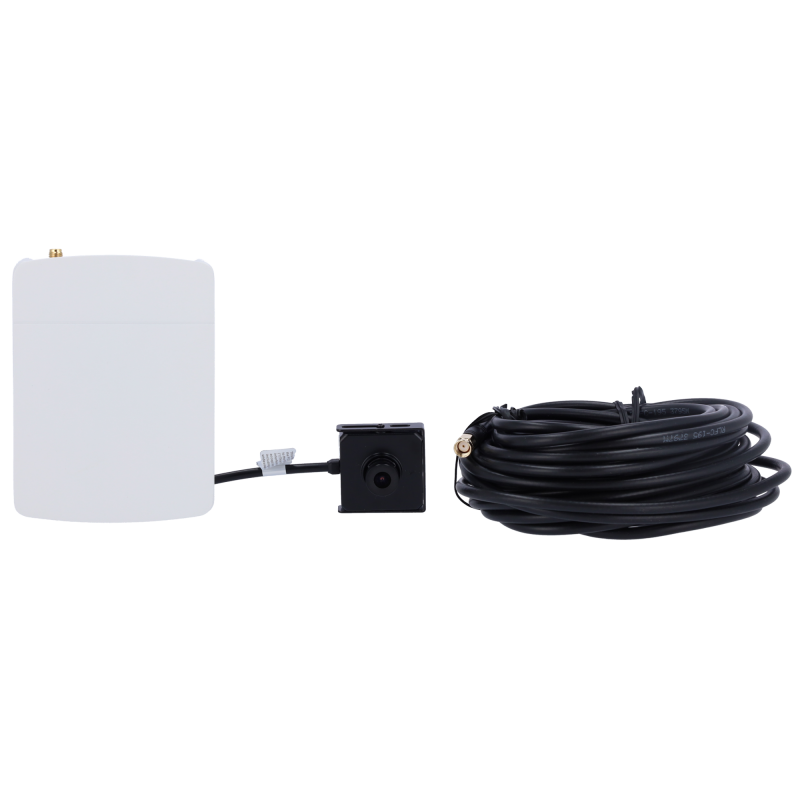

X-Security Pinhole Camera Kit - 4 Megapixel (2688x1520) | 2.8mm lens - WDR(120dB) | 3DNR | Audio | alarms - Capacity for 3 streams - H.265+/H.265/H.264+/H.264 compression - IEEE802.3af PoE


  • X-Security
  • Mini Mini IP Camera Kit (Main box + sensor)
  • ULTRA range
  • 1/2.7" Progressive Scan CMOS
  • 4 Megapixel (2688x1520)
  • 2.8mm pinhole lens
  • M12 lens mount
  • High Sensitivity Starlight
  • Color 0.005Lux
  • WDR
  • 3DNR
  • Capacity for 3 streams
  • H.265+/H.265/H.264+/H.264 compression
  • RJ-45 10/100 BaseT
  • Perimeter protection, false alarm filter for vehicles and people
  • Face Capture: Compatible with facial recognition recorders
  • IEEE802.3af PoE
  • Audio
  • alarms
  • SD card recording
  • Intelligent detection: faces, line crossing, intrusion, scene changes
  • WEB interface, CMS (DSS/ PSS), Smartphone and NVR
  • ONVIF Compliant


  • Main Box X-SECURITY
  • Camera XS-IPMC004SW-4U-L5
  • installation material
  • Instructions for use

alt





Article
Brand X-Security
Product Code XS-IPMCKIT-4U-L5
General
Internal storage SD Card Slot, Max 128GB
Protection Class Interior
Image sensor 1/2.7" Progressive Scan CMOS
Max. Resolution 4 Megapíxel (2688x1520)
Main Stream Rate 2592×1944 (1–20 fps), 2688×1520 (1–25 fps )
Extra Stream rate Sub stream: 704×576, 704×480 (1–25 fps) Third stream: 1920×1080 (1–25 fps)
Network Interface Ethernet 10/100 BaseT
Remote Access WEB interface, CMS (DSS/PSS), Smartphone and NVR
Interoperability ONVIF
Weight 210 g
Image Enhancements BLC, HLC, DWDR, AWB, AGC, 3D-NR, MD, ROI, Mirror, Privacy Masking
Lens 2.8 mm (H: 109º) XS-IPMC004SW-4U-L5
Audio 1 Input / 1 Output
Day / Night automatic electronic filter
Minimum illumination Color 0.005 Lux @ F2.0 B/W 0.0005 Lux @ F2.0
Power DC 12 V / 5.1W mA, PoE IEEE802.3af
Smart Features Face detection, line crossing, intrusion, scene changes and audio detection
Temp. operation -40º C ~ 60º C
Dimensions Unit: 110 mm (H) x 83 (W) x 24 (D) mm
Alarm 2 Input / 2 Relay
Compression H.265+/H.265/H.264+/H.264
