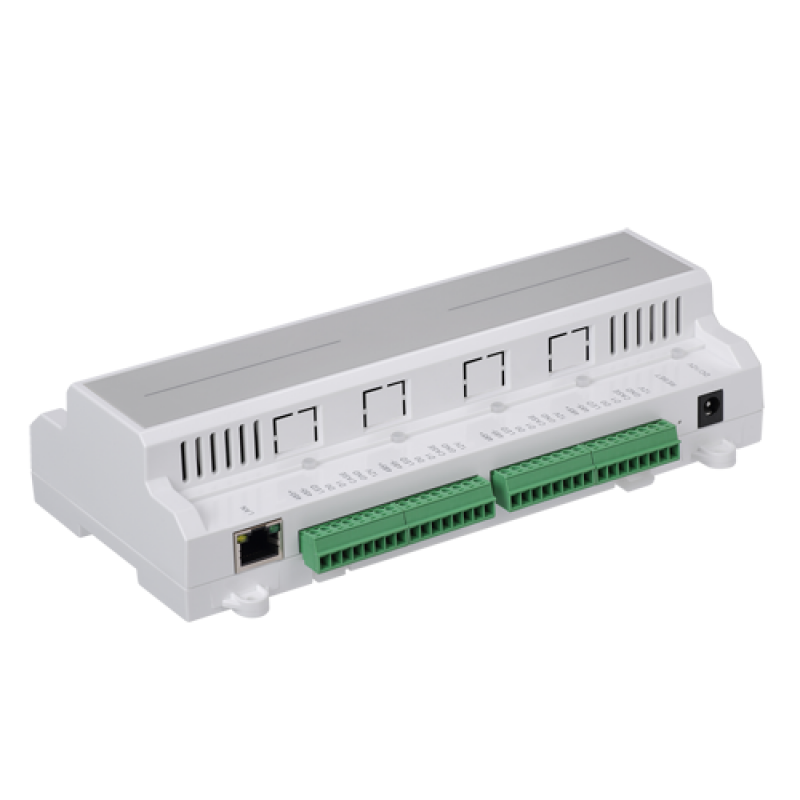

Biometric access controller - Access by fingerprint, card or password - TCP / IP communication - 4 inputs Wiegand 26 / RS485 - Relay output for four doors - SmartPSS software
  • Merk: X-Security
  • Productcode: XS-AC1204-C
  • Levertijd: Niet meer leverbaar
Om te bestellen en prijzen te kunnen zien moet u zich registreren of inloggen.
To order and view prices you must register or login.

Biometric access controller - Access by fingerprint, card or password - TCP / IP communication - 4 inputs Wiegand 26 / RS485 - Relay output for four doors - SmartPSS software

  • X-Security
  • Access controllers
  • 4-door management
  • Capacity 100,000 users and 150,000 records
  • Supports up to 4 Wiegand or RS485 readers
  • TCP / IP communication
  • Input of 4 pushbuttons, 4 door sensors and 1 auxiliary input
  • 4 Relay outputs and 1 alarm output
  • Relay configuration NO / NC
  • Compatible with SmartPSS software for management of access control and reports

  • X-Security Access controller
  • Mounting material
  • User instructions


General
Power DC 12 V / 1A max.
Hardware CPU 32bit CPU
Identification modes Fingerprints, Card and/or passwords
Weight 500 g
Communication TCP/IP | RS485
Records 150.000 registers
Temp. operation -30º C ~ +60 ºC
Software SmartPSS
Capacity Up to 100.000 cards
Inputs 4 x Wiegand 26/34 IN/RS485, 4 x Door sensor, 4 x Open button, 1 x Alarm input
Proximity card EM RFID (125 KHz) / MF (13,56MHz)
Dimensions 210 (W) x 51 (H) x 106 (D) mm
Outputs 4 x Relay Output, 1 x Alarm output
