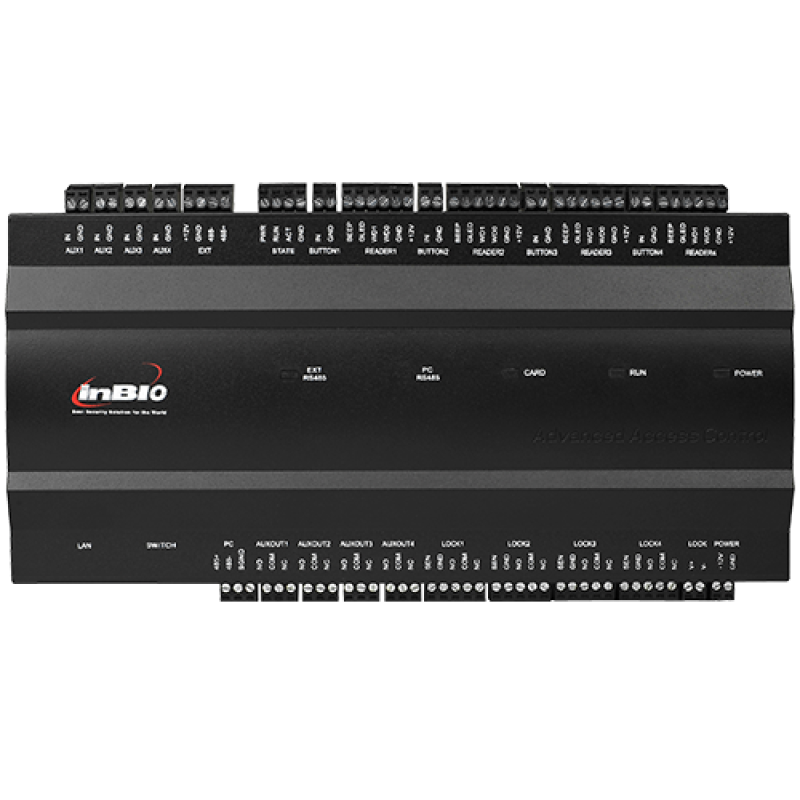

Biometric access controller - Access by fingerprint, card or password - TCP/IP communication | RS485 - 4 Wiegand inputs 26 - Relay output for 4 doors - Software ZK Access 3.5

Om te bestellen en prijzen te kunnen zien moet u zich registreren of inloggen.
To order and view prices you must register or login.

Description

ZKTeco
Biometric access control panel
Management of 4 doors
Capacity 3.000 users and 100.000 records
Supports up to 4 Wiegand readers and 8 RS485 readers
TCP/IP communication and RS485
Input of 4 pushbuttons, 4 door sensors and 4 auxiliary inputs
4 relay outputs and auxiliary 4 outputs
Relay configuration NO/NC
Compatible with ZKBioAccess IVS software for access control management and reporting

Datasheet

Installation Guide

Manual

inBIO Series User Manual V1.4-20140417

09/10/2018

3.22 MB

Data Sheet

In Bio 160/260/460 Data Sheet

09/10/2018

2.04 MB

package contents

Specifications

Article
Brand	ZKTeco
Product Code	ZK-INBIO460
General
Manufacturer no	INBIO460
Baud rate	9.600bps, 19.200bps, 38.400bps (aanbevolen) en 57.600bps
Power	DC 9.6 ~ 14.4 V / 1 A max.
Hardware CPU	32bit MIPS CPU
Identification modes	Fingerprint, card and/or password
Weight	300 g
Communication	TCP/IP \| RS485
Records	100.000 registers
Temp. operation	0º C ~ +55 C
Software	ZKBioAccess IVS
Capacity	Up to 3.000 tracks or 30.000 cards
Inputs	4 x Wiegand 26/34, 4 x door sensor, 4 x open button, RS485 (up to 8 readers), 4 x auxiliary
Proximity card	EM RFID (125 kHz) / MF (13.56 MHz)
Dimensions	350 (W) x 300 (H) x 90 (D) mm
Outputs	4x relaisuitgang, 4x aux-uitgangen
