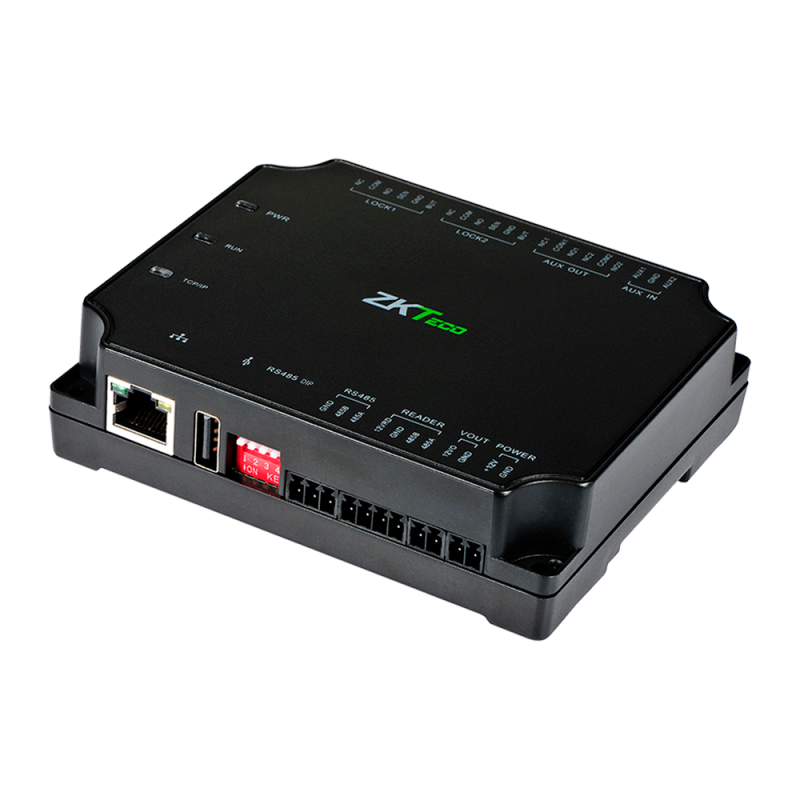

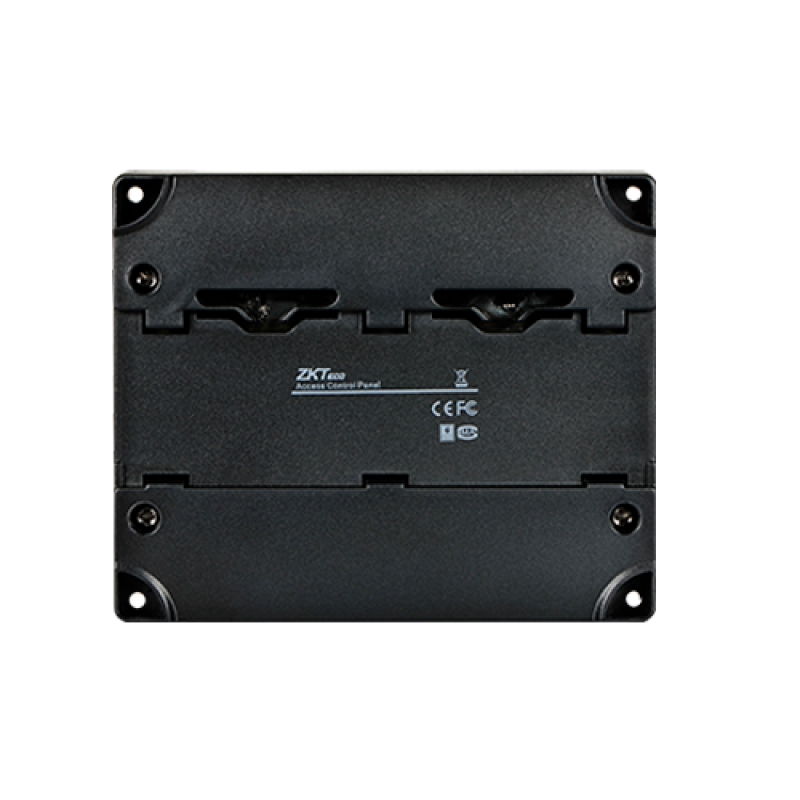

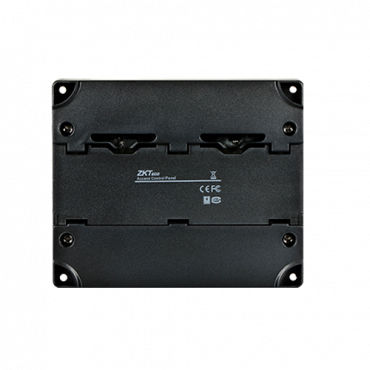

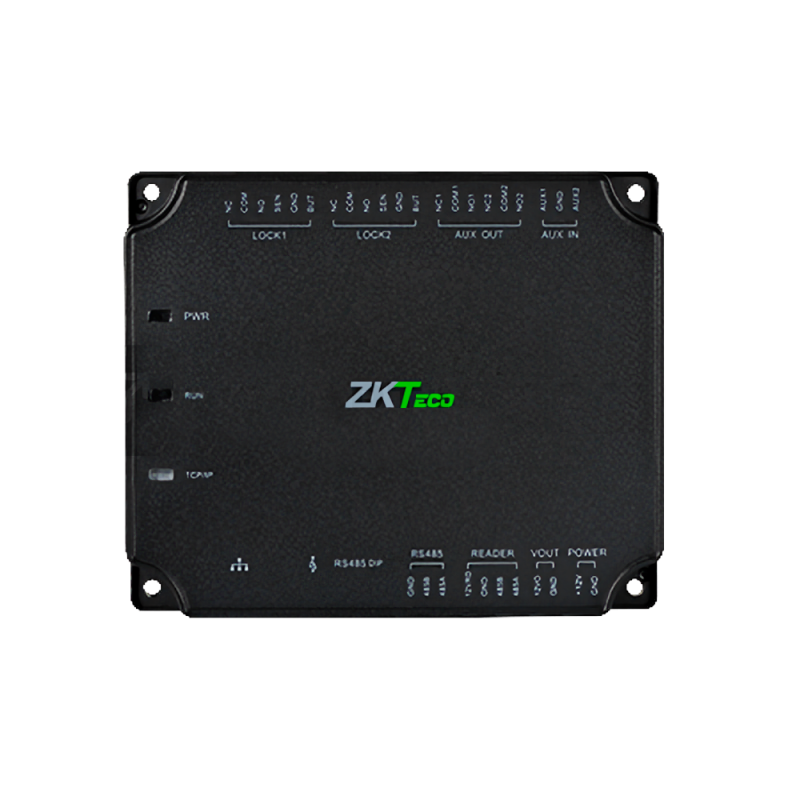

Access Controller - Card, QR or PIN - TCP/IP | RS485 for ZK-SRB-DM10 - 4 readers by OSDP ZKTeco - Relay output for 2 doors - ZKBioCV
  • Brand: ZKTeco
  • Product Code: ZK-C2-260
  • Availability: In Stock
Om te bestellen en prijzen te kunnen zien moet u zich registreren of inloggen.
To order and view prices you must register or login.

Access Controller - Card, QR or PIN - TCP/IP | RS485 for ZK-SRB-DM10 - 4 readers by OSDP ZKTeco - Relay output for 2 doors - ZKBioCV


  • ZKTeco
  • Access Controller
  • Management of 2 doors
  • Capacity 30.000 users and 200.000 records

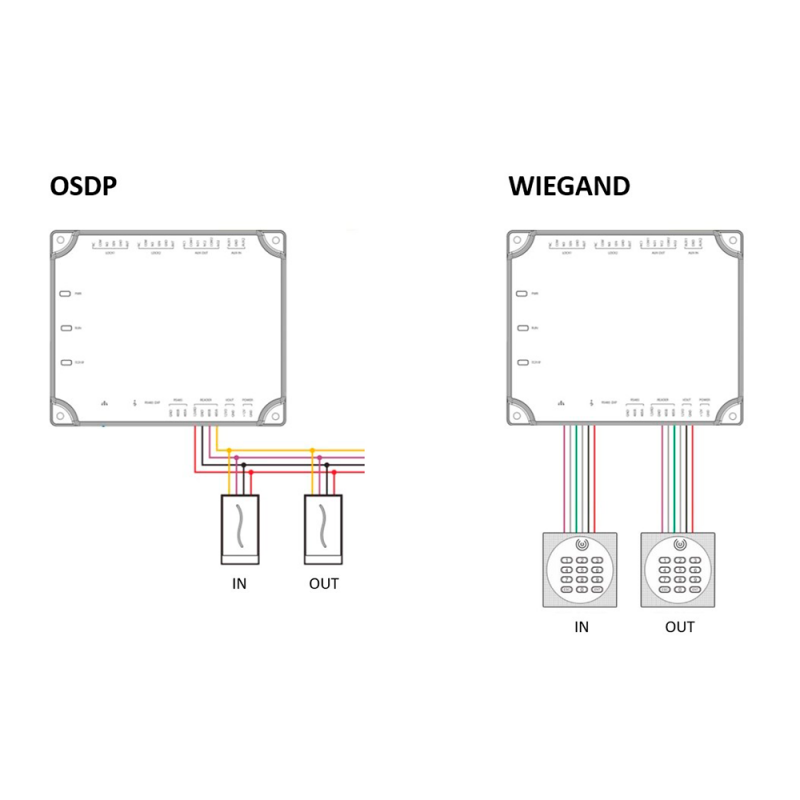

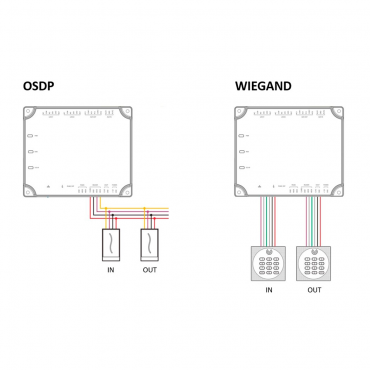

  • Supports up to 4 card readers by OSDP ZKTeco
  • Compatible with ZKTeco OSDP readers
  • TCP/IP communication and OSDP ZKTeco
  • Input of 2 push buttons, 2 door sensors and 1 auxiliary input
  • 2 relay outputs and auxiliary 2 outputs
  • Relay configuration NO/NC
  • Compatible with ZKBio CVSecurity Software

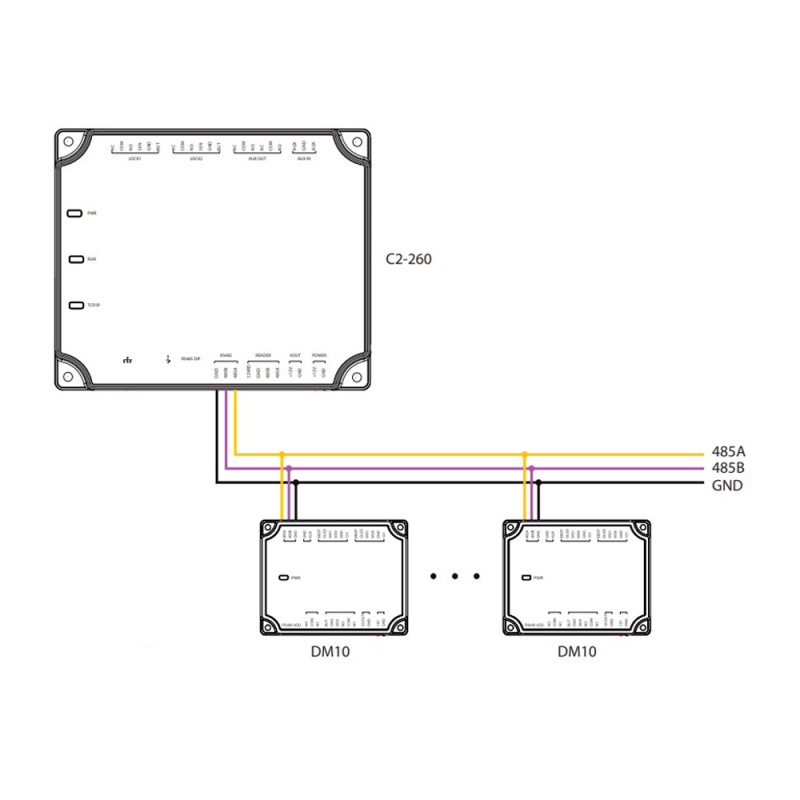

  • Connection of up to 8 controllers ZK-SRB-DM10 slaves with RS485 connection



BrandZKTeco
ModelCON-C2-260
CapacityUp to 30.000 users
Records200.000 registers
Identification modesCard, QR and/or password
Proximity cardEM RFID (125 kHz) / MF (13.56 MHz)
CommunicationTCP/IP | RS485 for slave connection | OSDP ZKTeco for reader connector
Outputs2 x relay output, 1 x auxiliary output, RS485 for communication with ZK-SRB-DM10
Inputs2 x door sensor, 2 x open button, OSDP ZKTeco (up to 4 readers), 1 x auxiliary entry
Compatible readersRS485 ZKTeco of cards and OSDP ZKTeco of cards
Secondary controllersConnection of up to 8 secondary controllers ZK-SRB-DM10 via RS485
SoftwareZKBio CVSecurity
PowerDC 9.6 ~ 14.4 V / 3 A max. | Locks not powered with controller
Temp. operation-10º C ~ +50 ºC
Dimensions117 (W) x 97 (H) x 32 (D) mm



  • ZKTeco Access Controller
  • Mounting material
  • User instructions
