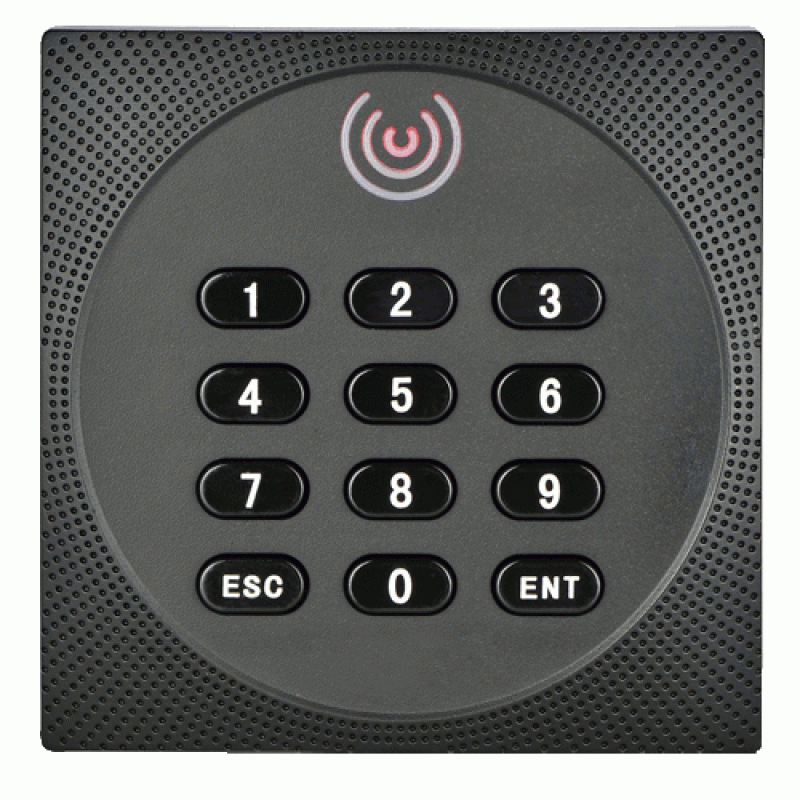

Access reader - Card or PIN access - LED and acoustic indicator - Wiegand 26 | MF or Desfire - Compatible with C3 / Atlas / SRB-DM10 - Suitable for outdoor use IP64
  • Brand: ZKTeco
  • Product Code: ZK-KR612D
  • Availability: In Stock
Om te bestellen en prijzen te kunnen zien moet u zich registreren of inloggen.
To order and view prices you must register or login.

Access reader - Card or PIN access - LED and acoustic indicator - Wiegand 26 | MF or Desfire - Compatible with C3 / Atlas / SRB-DM10 - Suitable for outdoor use IP64

The KR Series is the main accessories line of external wiegand readers for all our access control devices.

With an elegant and robust design, they are easy to connect and install, and offer the possibility to control one door from both sides. The LED lights indicate allowed or denied access. They have a proximity reading range of up to 10cm in the E series case and up to 5cm in the M series case. The fact that this series is waterproof, and the operating temperatures can range from -20º to +65º, it is the ideal solution for outdoor installation. Also they can be connected with our C3 controllers.

  • Easy to install
  • 125KHz Proximity/ 13,56 MHz ISO14443A Card Reader
  • Read Range: Up to 10CM(125KHz)/5CM(13.56MHz)
  • 26/34bit Wiegand (default)
  • Easy to install on Metal Door Frame or Mullion
  • External LED Control
  • External Buzzer Control
  • Indoor / Outdoor Operation
  • Solid Epoxy Injection
  • Waterproof IP65
  • Reverse Polarity Protection
  • Elegant and robust design





  • ZKTeco device
  • Mounting material

alt

Article
Brand ZKTeco
Product Code ZK-KR612D
OPERATING ENVIROMENT
Operating temperature -20°C to 65°C(-10° to +70°C)
Operating humidity 10% to 90% relative humidity non-condensing
General
Manufacturer no KR612D
Protection Class IP64
Reading distance Up to 4.5 cm
Input Port External LED Control / External Buzzer Control
Reading time ≤300ms
Output Format 34/66 bits
Power/Current DC 6-14V / Max.70mA
Cable Length Standard 35 cm (Optional 150 cm)
Dimensions 86x86x20 mm
Proximity Desfire 13.56 MHz
Material ABS+PC with texture
Beeper Yes
LED Red and Green LEDs
