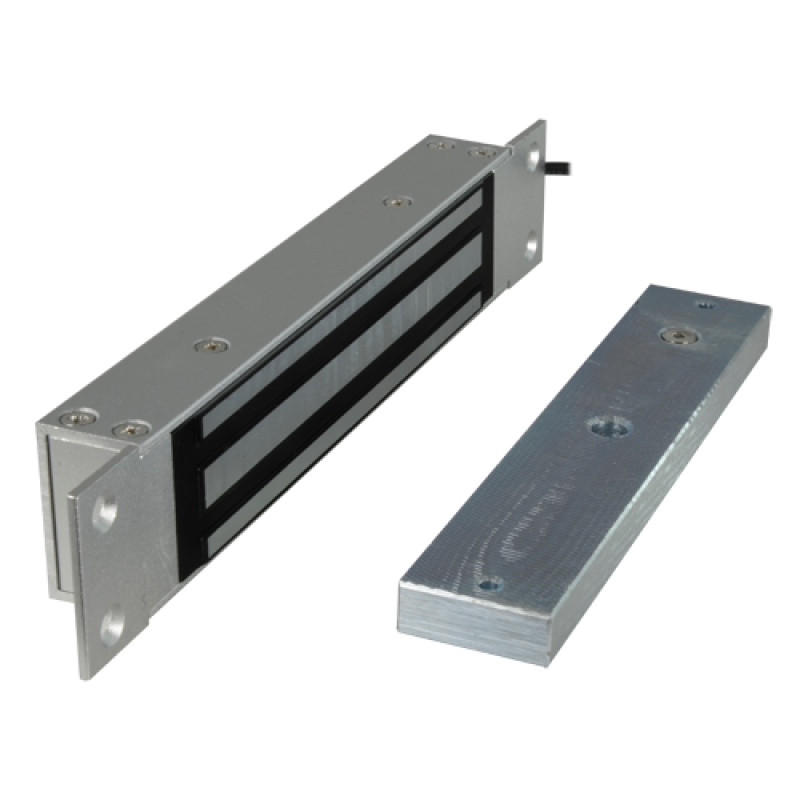

Electromagnetic Lock - For simple door - Fail Safe opening mode - Holding force 500 Kg - Door status sensor - For flush mounting
Om te bestellen en prijzen te kunnen zien moet u zich registreren of inloggen.
To order and view prices you must register or login.

Electromagnetic Lock - For simple door - Fail Safe opening mode - Holding force 500 Kg - Door status sensor - For flush mounting

  • Electromagnetic lock for single doors
  • Incorporates monitoring signal
  • Output of contact NO/NC/COM
  • For flush mounting
  • Linear load resistance of 500 kg


  • Electromagnet
  • Magnetisation plate
  • Installation material
  • User instructions

alt


Article
Brand YLI Electronic
Product Code YF-500CS
General
Door type Single, 1 door
Opening mode Fail Safe
Retention force 500 kg
Signalling Door status sensor NO/NC
Weight 4.5 kg
Armature size 38 (H) x 180 (W) mm
Dimensions 39.5 (D) x 74.5 (H) x 265 (W) mm
Power DC 12 V / 660 mA máx. o DC 24 V / 330 mA max.
Temperature -10º C ~ +55º C
