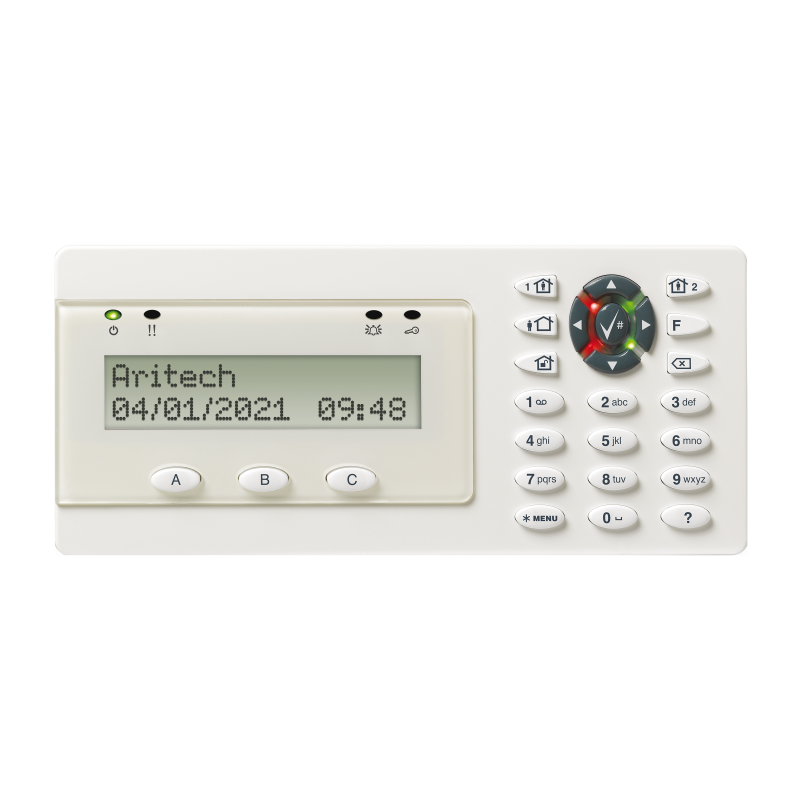

ATS Advanced Prox Keypad, LEDs, incl Dedicated Arming Keys
  • Brand: Aritech
  • Product Code: ATS1135
  • Availability: Price / delivery time on request
Om te bestellen en prijzen te kunnen zien moet u zich registreren of inloggen.
To order and view prices you must register or login.

ATS Advanced Prox Keypad, LEDs, incl Dedicated Arming Keys

  • Stylish design
  • Simplified end user operation
  • Large 2 x 16 characters LCD
  • User adjustable LCD contrast
  • User adjustable buzzer
  • Built-in smart card proximity reader
  • Compatible with all Advisor Advanced control panels
  • Clear system status indication
  • 3 programmable function keys


Datasheet
ATS1135


  • ATS1135 Keypad
  • Manual
  • Installation material
Article
Brand Aritech
Product Code ATS1135
INPUT / OUTPUT
Inputs 1
Outputs 1
Physical
Physical dimensions 200 x 90 x 24 mm
Colour White
Net weight 350 g
Form factor Horizontal
General
Communication type Wired
EN50131 Grade Grade 3
User interface 2 x 16 Char LCD,​ Touch Buttons
Certification VdS
Input type Request to Exit
Product Line Advisor Advanced
Environment Indoor
Mounting type Surface mount
Status LEDs 2
Integrated reader Proximity
Output type Open collector,​ 15 V max. at 50 mA max.
Supported cable type WCAT 52/54 or equivalent
Communication
Reading distance 5 cm
Standards & regulation
Compliancy CE,​ RoHS
Environmental
Operating temperature -10 to +55°C
Relative humidity 0 to 95% noncondensing
IP rating IP30
Electrical
Operating voltage 8.5 to 14 VDC
Current consumption 35 mA normal operation 155 mA max.
