- Brand: B-Tech
- Product Code: BT-BTV501
- Availability: Discontinued
Om te bestellen en prijzen te kunnen zien moet u zich registreren of inloggen.
To order and view prices you must register or login.
To order and view prices you must register or login.

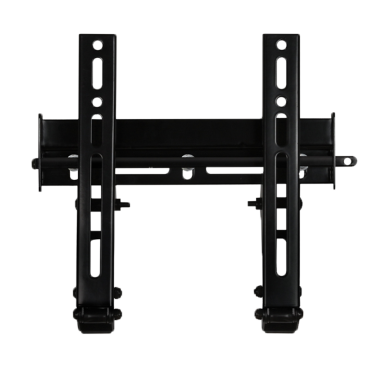

Flat screen bracket with tilt function - Up to 47" - Max weight 40Kg - VESA 200x200mm
Designed to mount medium sized screens the BTV501 is ideal for home installations. With 5 fixed tilt poistions up to +15° available, this mount features a simple ‘hook-on’ installation and post installation screen alignment making screen mounting as quick and simple as possible. The BTV501 also features a security locking bar to help prevent un-authorised removal of the screen. All fixings and mounting hardware included.
- 5 fixed tilt positions up to +15°
- Lateral adjustment of screen once mounted
- Security locking bar to prevent unauthorised screen removal
- Suitable for concrete, brick or stud walls up to 10”
- Simple ‘hook-on’ installation
- All mounting hardware included
- Available in Black
Datasheet
Installation Guide
Technical Drawing
- BTV501 tiltable wall bracket
- Mounting material
| Article | |
| Brand | B-Tech |
| Product Code | BT-BTV501 |
| Manufacturer No. | BTV501 |
| General | |
| Distance from wall | Flat: 44mm (1.7”) / Full tilt: 101mm (4”) |
| Max load | 40kg (88lbs) |
| Recommended screen size | up to 47” (119 cm) |
| Tilt | +15° |
| VESA® & non-VESA fixings | up to 225 x 200 |
