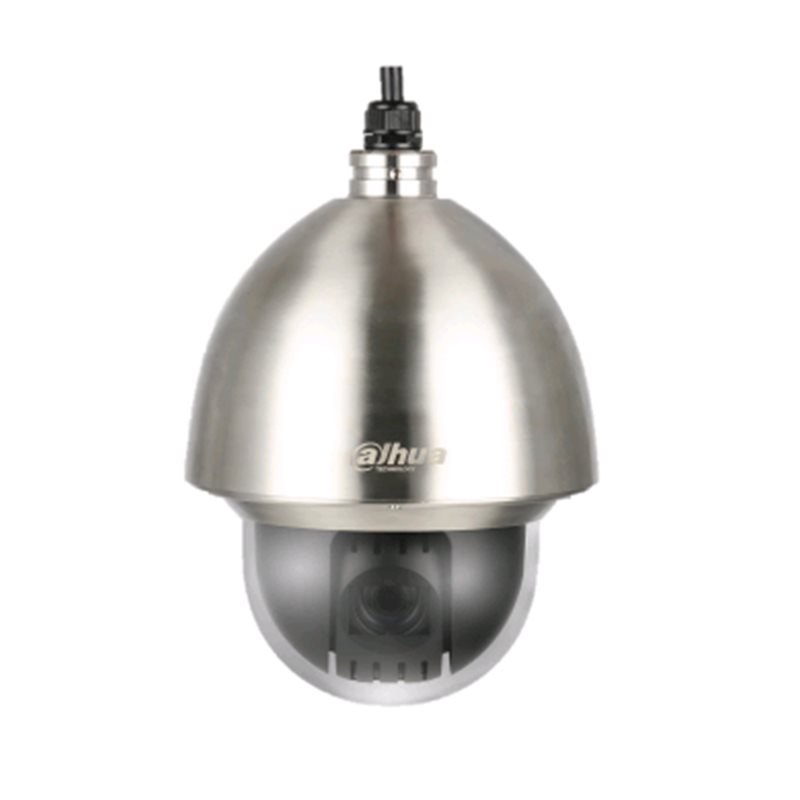

Speed Dome | 1/2.8” 2Megapixel STARVIS™ CMOS | Powerful 30x optical zoom | Starlight technology | Max. 50/60fps@1080P | Support PoE+ | IP68, IK10, NEMA 4X | 316L Stainless steel
  • Brand: Branded
  • Product Code: SD60230U-HNI-SL
  • Availability: On Request
Om te bestellen en prijzen te kunnen zien moet u zich registreren of inloggen.
To order and view prices you must register or login.

Speed Dome | 1/2.8” 2Megapixel STARVIS™ CMOS | Powerful 30x optical zoom | Starlight technology | Max. 50/60fps@1080P | Support PoE+ | IP68, IK10, NEMA 4X | 316L Stainless steel


  • 2Mp 1/2.8 inch PS Exmor CMOS
  • H.264 / H.265, 3stream encoding
  • Max 50fps @ (1080p)
  • Max 600°/s pan speed
  • 30x optical zoom
  • 4.5mm to 1350mm
  • Auto Iris
  • Auto Focus
  • 120dB WDR
  • D&N(ICR)
  • DNR (2D & 3D)
  • AWB, AGC, BLC, defog
  • 1 / 1 channel audio in / out
  • 7 / 2ch alarm On/Off
  • IP 68, IK10
  • -40°C to 70°C
  • Micro SD card slot
  • 24 VAC / PoE+
  • wall bracket included
  • 316L stainless steel

  • Anti-corrosion PTZ Network Camera
  • AC 24V/3A Power Adapter
  • PFB303W-SL Wall Mount
Camera
Effective Pixels 1920(H) x 1080(V), 2 Megapixels
IR LEDs N/A
RAM/ROM 512M/128M
Image sensor 1/2.8” STARVIS™ CMOS
Electronic Shutter Speed 1/1s~1/30,000s
Scanning System Progressive
Minimum Illumination Color: 0.005Lux@F1.6; B/W: 0.0005Lux@F1.6
IR Distance N/A
S/N Ratio More than 55db
IR On/Off Control N/A
Lens
Focus Control Auto/Manual
Focal Length 4.5mm~135mm
Max. Aperture F1.6 ~ F4.4
Angle of View H: 67.8° ~ 2.4°
Optical Zoom 30x
Close Focus Distance 100mm~ 1000mm
Video
Backlight Compensation BLC / HLC / WDR (120dB)
Bit Rate H.265/H.264: 448K ~ 8192Kbps
Frame Rate Main stream: 1080P/1.3M/720P(1~50/60fps) Sub stream1: D1/CIF(1 ~ 25/30fps) Sub stream2: 1080P/1.3M/720P/D1/CIF (1~25/30fps)
Resolution 1080P(1920×1080)/1.3M(1280×960)/720P(1280×720)/D1(704×576/704×480)/CIF(352×288/352×240)
Compression H.265+/H.265/H.264+/H.264
Streaming Capability 3 Streams
Bit Rate Control H.265/H.264: 448K ~ 8192Kbps
Day / Night Auto(ICR) / Color / B/W
White Balance Auto, ATW, Indoor, Outdoor, Manual
Electronic Image Stabilization (EIS) Support
Gain Control Auto / Manual
Defog Support
Noise Reduction Ultra DNR (2D/3D)
Digital Zoom 16x
Flip 180°
Motion Detection Support
Region of Interest (RoI) Support
Privacy Masking Up to 24 areas
Network
Ethernet RJ-45 (10Base-T/100Base-TX)
Protocol IPv4/IPv6,HTTP,HTTPS,SSL,TCP/IP, UDP,UPnP, ICMP,IGMP,SNMP,RTSP,RTP, SMTP, NTP,DHCP, DNS,PPPOE,DDNS,FTP, IP Filter,QoS,Bonjour,802.1x
Streaming Method Unicast / Multicast
Interoperability ONVIF, PSIA, CGI
Edge Storage NAS (Network Attached Storage),Local PC for instant recording, Micro SD card 128G
Max. User Access 20 users
Management Software Smart PSS, DSS
Web Viewer IE, Chrome, Firefox, Safari
Smart Phone IOS, Android
Interface
Alarm I/O 7/2
Audio I/O 1/1
Video Interface 1 port(BNC, 1.0V[p-p], 75Ω)
RS485 1
Audio
Compression G.711a/G.711Mu/AAC/G.722/G.726/MPEG2-L2
DORI Distance
Detect 1862m(6109ft)
Identify 186m(610ft)
Observe 744m(2441ft)
Recognize 372m(1220ft)
PTZ
Idle Motion Activate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period
Manual Control Speed Pan: 0.1° ~300° /s; Tilt: 0.1° ~200° /s
Pan/Tilt Range Pan: 0° ~ 360° endless; Tilt: -20° ~ 90°,auto flip 180°
Power up Action Auto restore to previous PTZ and lens status after power failure
Preset Speed Pan: 600° /s; Tilt: 500° /s
Presets 300
Protocol DH-SD, Pelco-P/D (Auto recognition)
PTZ Mode 5 Pattern, 8 Tour, Auto Pan ,Auto Scan
Speed Setup Human-oriented focal Length/ speed adaptation
Intelligence
Auto Tracking Support
IVS Tripwire, Intrusion,Abandoned/Missing, Face Detection, Heat Map
Environmental
Ingress Protection IP68
Operating Conditions -40°C ~ 70°C (-40°F ~ +158°F) / Less than 95% RH
Vandal Resistance IK10
Certifications
Certifications CE: EN55032/EN55024/EN50130-4 | FCC: Part15 subpartB,ANSI C63.4- 2014 | NEMA 4X: UL60950-1+CAN/CSA C22.2,No.60950-1
Electrical
Power Consumption 13W, 20W (Heater on)
Power Supply AC24V/3A(±25%), PoE+(802.3at)
Construction
Casing 316L stainless steel
Dimensions Φ222(mm) x 292(mm)
Gross Weight 11.0Kg(24.25lb)
Net Weight 5.9kg(13.01lb)
