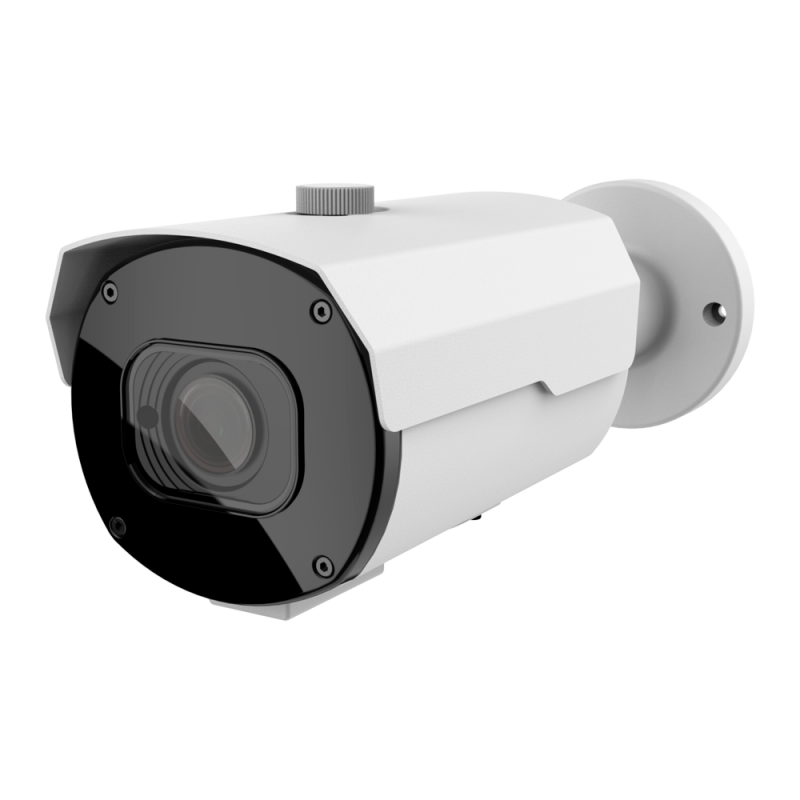

Bullet Camera ECO Range - Output 4in1 - 1/2.7" Progressive CMOS - 2.8~12 mm Varifocal lens - IR Matrix LEDs IR Matrix LEDs Range 35 m - Weatherproof IP66
  • Brand: Private Brand
  • Product Code: B729V-5E
  • Availability: Discontinued
Om te bestellen en prijzen te kunnen zien moet u zich registreren of inloggen.
To order and view prices you must register or login.

Bullet Camera ECO Range - Output 4in1 - 1/2.7" Progressive CMOS - 2.8~12 mm Varifocal lens - IR Matrix LEDs IR Matrix LEDs Range 35 m - Weatherproof IP66


  • HDTVI, HDCVI, AHD and Analog Bullet Camera
  • ECO Range
  • 1/2.7" Progressive CMOS
  • 5 Mpx (2592x1944)
  • Output 4in1
  • 2.8~12 mm Varifocal lens
  • 0 Lux
  • IR Matrix Range 35 m
  • DNR
  • DWDR
  • IR Cut
  • Weatherproof IP66

  • 4N1 Bullet Camera
  • Installation material
  • User instructions

alt

Article
Brand Oem
Product Code B729V-5E
Series ECO
General
Resolution TVI: 5 Mpx (20 fps) / 4 MP (25~30 fps) AHD: 5 Mpx (20 fps) / 4 Mpx (25~30 fps) CVI: 4 Mpx (25~30 fps) CVBS: PAL / NTCS
Image sensor 1/2.7" Progressive CMOS
Base diameter 71 (Ø) mm / 3 screws
Video Output 1 x BNC switchable between HDTVI / HDCVI / AHD / CVBS
Maximum resolution 5 MP (2592x1944) to 20 fps
Weight 760 g
Lens 2.8~12mm varifocal
Audio No
Day / Night Auto / Color / BW (black and white)
Dimensions 241 (D) x 89 (W) x 84 (H) x 84 (Ø) mm
Minimum illumination 0.05 Lux @ (F1.2, AGC ON)
Material Metallic
Power DC 12 V / 600 mA, 7.2 W max.
Viewing angle 107º - 35º (H), 54º - 20º (V), 133º - 40º (D)
Infrared lighting 0 Lux / IR Matrix LEDs (range 35 m)
Video output switching Via Switch
Temp. operation -30º C ~ +55º C
Alarm No
Basic functions OSD menu (remote)
Degree of protection Weatherproof IP66
Configurable OSD functions DWDR, DNR, AE, ATW, AWB, BLC, Mirror, Flip
