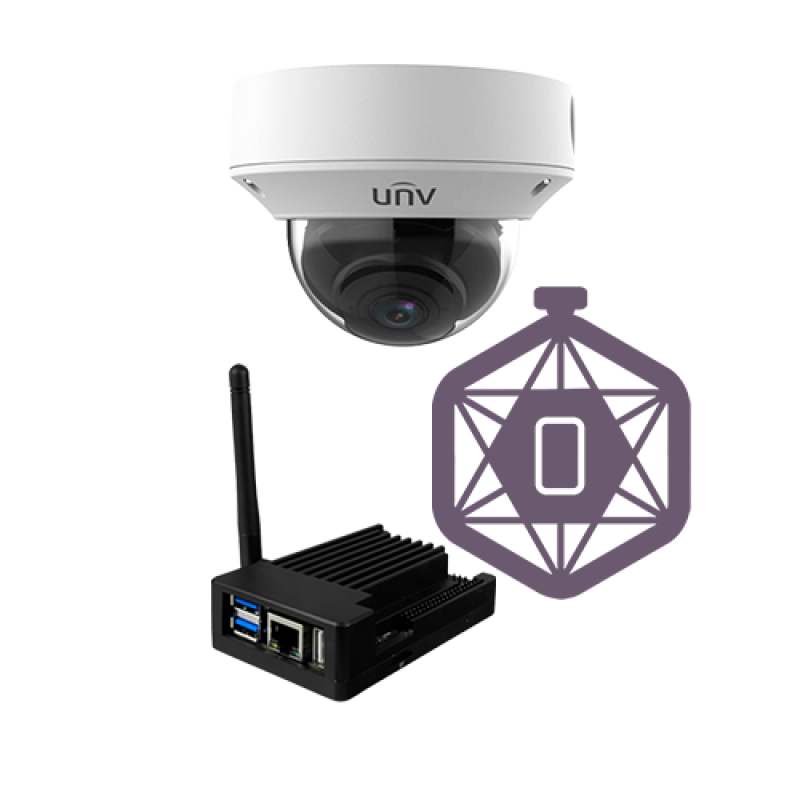

ECO Capacity Control Kit - Camera UV-IPCOUNT-Z-4 - PC with SF-COUNT-LITE software - Multiple viewers at the entrances - Customized reports - Multi-channel system up to 20 cameras
  • Brand: Uniview
  • Product Code: KIT-PEOPLECOUNT-1E
  • Availability: In Stock
Om te bestellen en prijzen te kunnen zien moet u zich registreren of inloggen.
To order and view prices you must register or login.

ECO Capacity Control Kit - Camera UV-IPCOUNT-Z-4 - PC with SF-COUNT-LITE software - Multiple viewers at the entrances - Customized reports - Multi-channel system up to 20 cameras


  • Uniview
  • All in 1 ECO Capacity Control Kit
  • People counting camera UV-IPCOUNT-Z-4
  • PC with Safire Link Counting Software LITE installed
  • Multi-channel system up to 20 people counting cameras (Expandable)
  • Partial or general capacity per camera
  • Hourly, daily, monthly and yearly statistical reports
  • Multiple viewers on different devices via web server
  • Sound and visual notification on the screen when the permitted capacity is reached
  • Fully centralized

Datasheet

KIT-PEOPLECOUNT-1E

EN
PDF
-

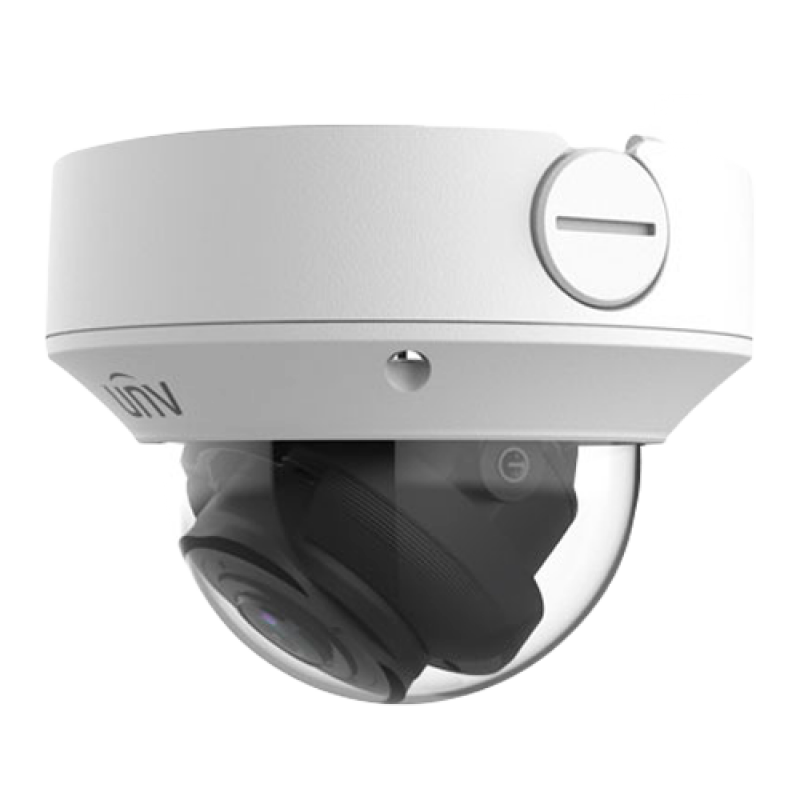

  • UV-IPCOUNT-Z-4 IP Camera

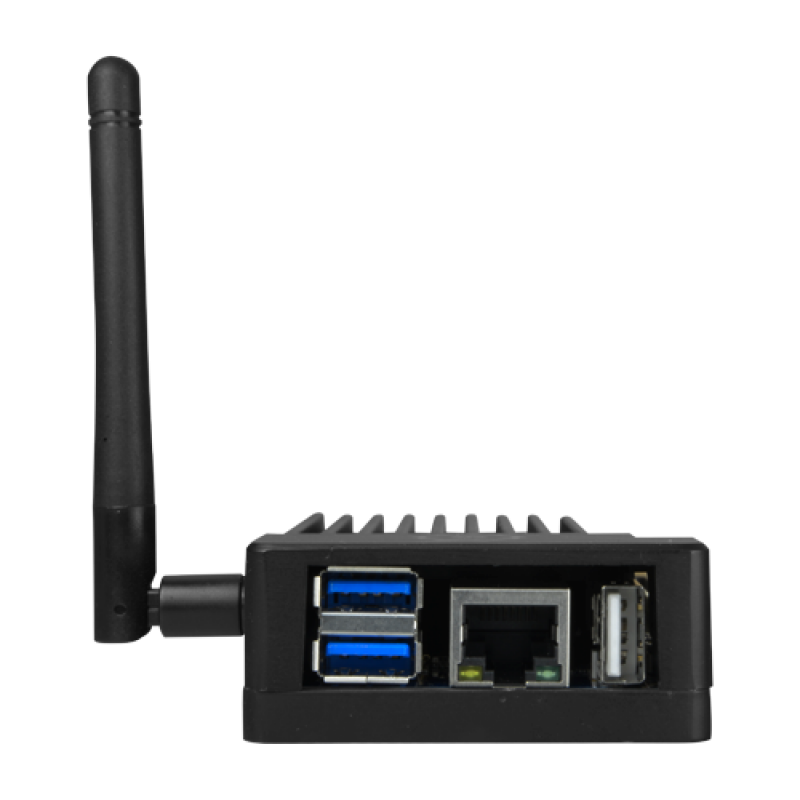

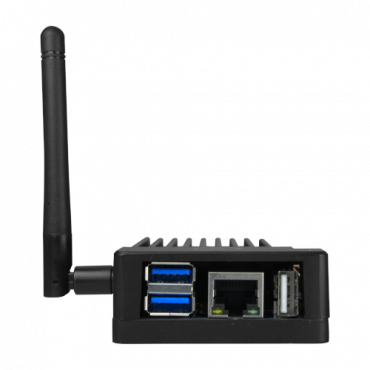

  • Mini PC
  • Safire Link Count Lite software

alt


Article
Brand Uniview
Product Code KIT-PEOPLECOUNT-1E
PC
Audio MIC Input / 3.5mm Jack & HDMI Output
Communication 1xGigabit Ethernet, Wifi 5 (802.11ac dual band), Bluetooth 5.0, USB 3.0, USB 2.0, USB 3.0 (Type C)
CPU 6-core
Memory 4GB LPDDR4
Operating System Linux Based
Power DC 5V / 3A
Video 1 x HDMI 2.0 (Type A) Up to 4K @ 60 FPS
IP camera
Model UV-IPCOUNT-Z-4
Alarms 1 input / 1 relay
Day / Night Mechanical ICR filter
Image sensor 1/1.8" Progressive Scan CMOS
Infrared Illumination 40 m
Intelligent functions People Counting, Perimeter Protection, Face Capture
Interoperability ONVIF
Maximum resolution 4 Megapixel (2688×1520)
Main Stream rate 2688x1520 (1 ~ 30 FPS)
Compression UltraH.265/H.265/H.264 (Triple Stream)
Lens Motorized 2.8~12mm @ F1.2 Autofocus
Minimum illumination 0.0005 Lux (Color)
Image improvements True WDR (120dB), Watermark, Motion detection, ROI, Privacy Mask, Smart IR
Audio 1 IN / 1 OUT
Internal storage MicroSD card, Max 256 GB
Network interface Ethernet 10/100 BaseT
Power DC 12 V / AC 24 V / 4.5-10 W, PoE IEEE802.3af
Degree of protection Weatherproof IP67, Anti-vandal IK10
Remote access Web Browser, CMS Software (EZStation), Smartphone (EZView/EZLive)
Temp. operation -30º C ~ 60º C
Dimensions 111.3 mm (D) x 148 (Ø) mm
Weight 960 g
Software
Cameras Up to 20 people counting cameras (Supports Safire, Uniview and X-Security devices)
Capacity Control Control over a room
Display Via web browser. Unlimited devices and independent image on each device.
Model SF-COUNT-LITE (Safire Doors Lite)
Other Customizable notifications and logos. 3 user levels: Administrator, Supervisor and Operator. Remote Update.
Reports Personalized. Ability to download reports in Excel file
