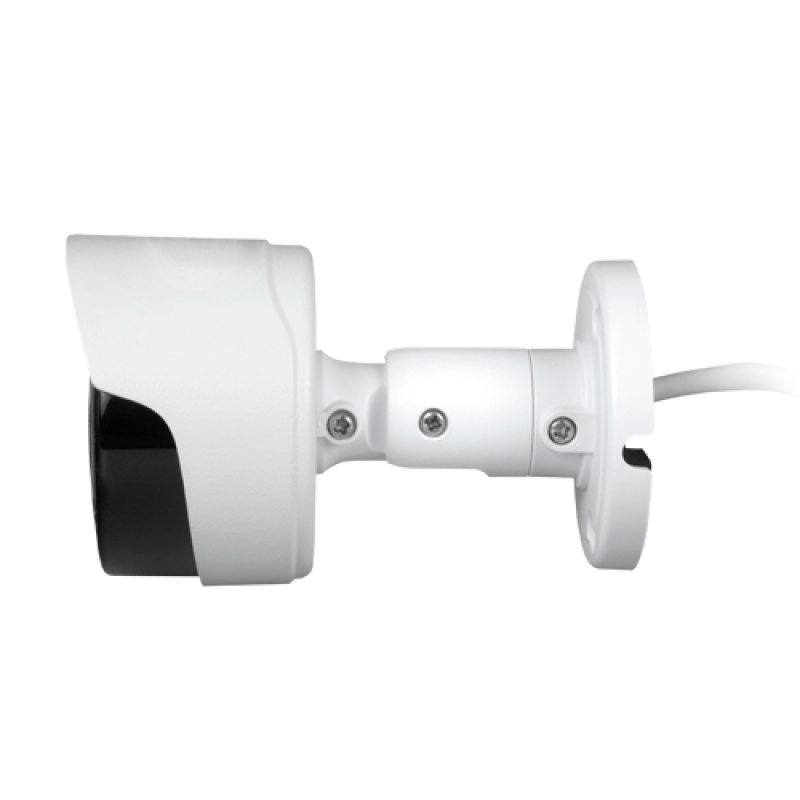

1080p ECO Bullet Camera - 4 in 1 (HDTVI / HDCVI / AHD / CVBS) - 1/2.7" SmartSens© SC2235+FM8536E - 2.8 mm Lens - IR LEDs SMD Range 30 m - OSD remote menu from DVR
  • Brand: Private Brand
  • Product Code: CV020-F4N1
  • Availability: In Stock
Om te bestellen en prijzen te kunnen zien moet u zich registreren of inloggen.
To order and view prices you must register or login.

1080p ECO Bullet Camera - 4 in 1 (HDTVI / HDCVI / AHD / CVBS) - 1/2.7" SmartSens© SC2235+FM8536E - 2.8 mm Lens - IR LEDs SMD Range 30 m - OSD remote menu from DVR


  • HDTVI, HDCVI, AHD and Analogue bullet camera
  • ECO Range
  • Sensor 1/2.7" 2.0Mpx CMOS
  • SC2235+FM8536E
  • HD 1080P (1920x1080)
  • Output 4in1
  • 2.8 mm Lens
  • 0 Lux - IR SMD Range 30 m
  • IR Cut
  • Weatherproof IP66




  • Bullet camera 4 in 1
  • Mounting material
  • User instructions

alt


Article
Brand Oem
Product Code CV020-F4N1
Series 5Mpx/4Mpx ECO
POWER
Operating Voltage DC 12 V
Power Consumption 4.2 W max.
Power supply DC 12 V / 4.2 W max.
General
Resolution 1080p@25FPS (HDTVI, HDCVI, AHD)
Image sensor 1/2.7" SmartSens© SC2235
DSP FH8536E

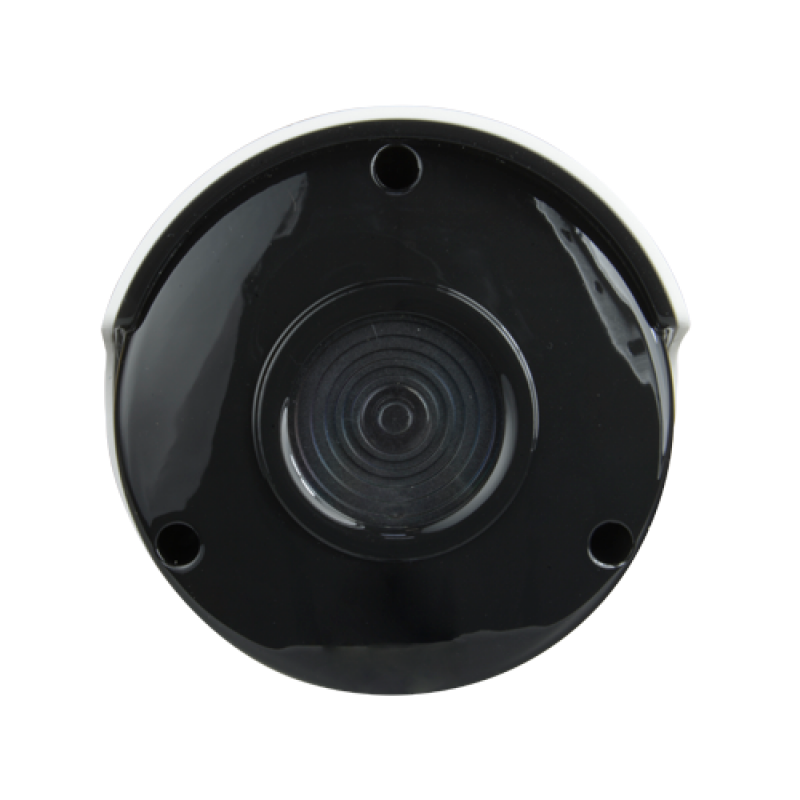

Lens 2.8 mm
Minimal illumination 0 Lux / IR SMD LEDs (30 m)

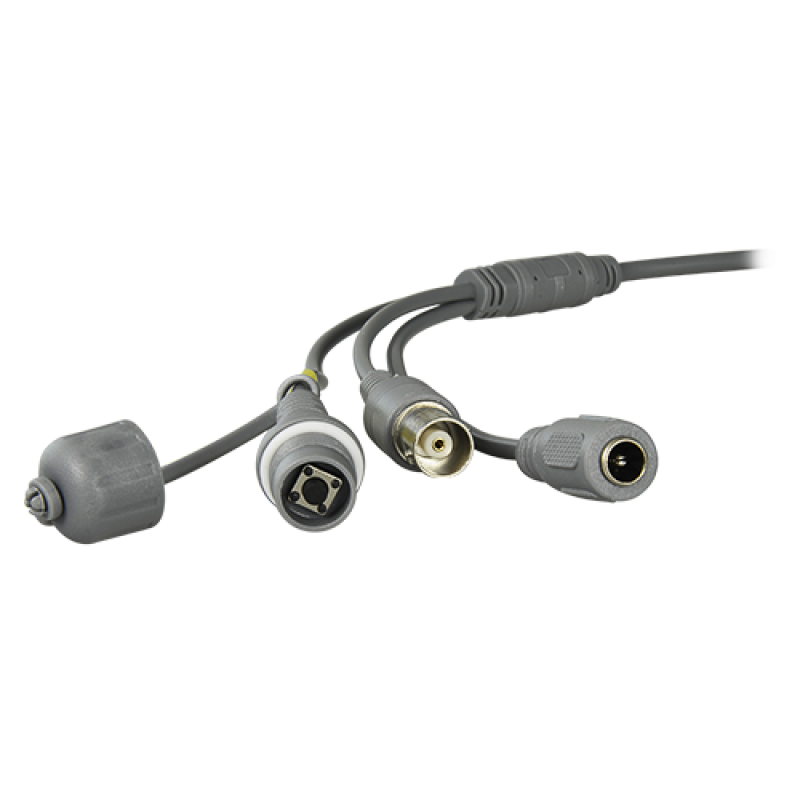

Video output 1 x BNC switchable HDTVI 2.0 / HDCVI / AHD / CVBS
Basic functions OSD menu, day / night with IR-CUT (ICR)
Configurable OSD functions AE, 2DNR, AWB
Weight 350 g
General Characterisitics
Protection Grade Weatherproof IP66
Temp. operation -30º C ~ +55º C
Dimensions 114 (D) x 63 (Ø) mm
