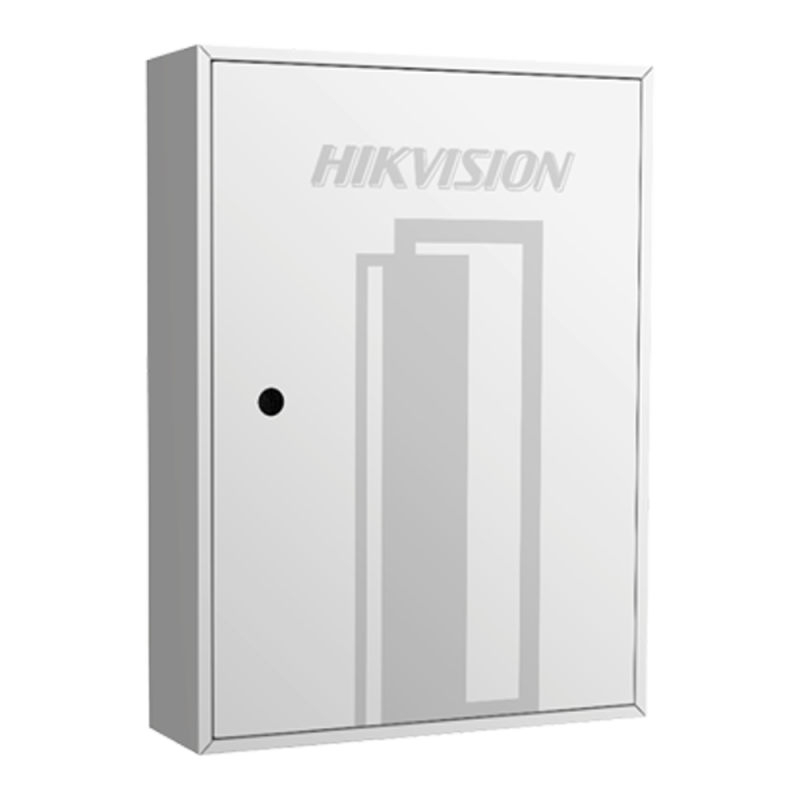

Hikvision - Parking guidance NVR recorder - Up to 32CH dual (16 parking cameras) - Up to 16 internal RJ45 ports (8 PoE ports) - Space for 6 hard disks
  • Brand: Hikvision
  • Product Code: DS-TPM400-P
  • Availability: On request
Om te bestellen en prijzen te kunnen zien moet u zich registreren of inloggen.
To order and view prices you must register or login.

Hikvision - Parking guidance NVR recorder - Up to 32CH dual (16 parking cameras) - Up to 16 internal RJ45 ports (8 PoE ports) - Space for 6 hard disks


  • Hikvision
  • NVR recorder for parking guidance
  • 32 CH for parking cameras ((16 dual cameras)
  • 8 Hikvision PoE Ports
  • Supports 6HDDs
  • Compatible with HikCentral Professional
  • Audio
  • Alarms
  • HDMI FullHD



  • Hikvision NVR recorder
  • Instructions Manual
  • Hard disk connection wiring
  • Installation material

alt


General
Operating temperature -10ºC ~ 50ºC (10%-90% Humidity)
Inputs for IP cameras LAN port up to 32 channels
IP compatible cameras HIKVISION (native protocol), ONVIF
Recording method Manual, programmed, motion detection
Remote Access Web Browser and Hik-Central
Communication 1 x USB 2.0, 1 x USB 3.0 16 x RJ45 10/100M for internal network (Ethernet), including 8 Hikvision PoE ports 4 x RJ45 10/100/1000M for external network (Ethernet) 1 x SFP Port 1 x RS-485
Installation Wall
Video compression format H.265+ / H.265 / H.264+ / H.264
Video outputs 1xHDMI FullHD
Display Resolution HDMI 1080p: 1920x1080, 1280x1024, 1280x720, 1024x768
Bidirectional audio 1 RCA input / 1 RCA output
Power AC 100~240 V, ≤ 500 W (without HDD)
Alarms 3 inputs / 3 relay
Dimensions 540 (H) x 410 (W) x 130 (D) mm
Internal memory 6 HDD SATA 3.5" of up to 10 TB each (not included)
Power over Ethernet 8 Hikvision PoE port switch
