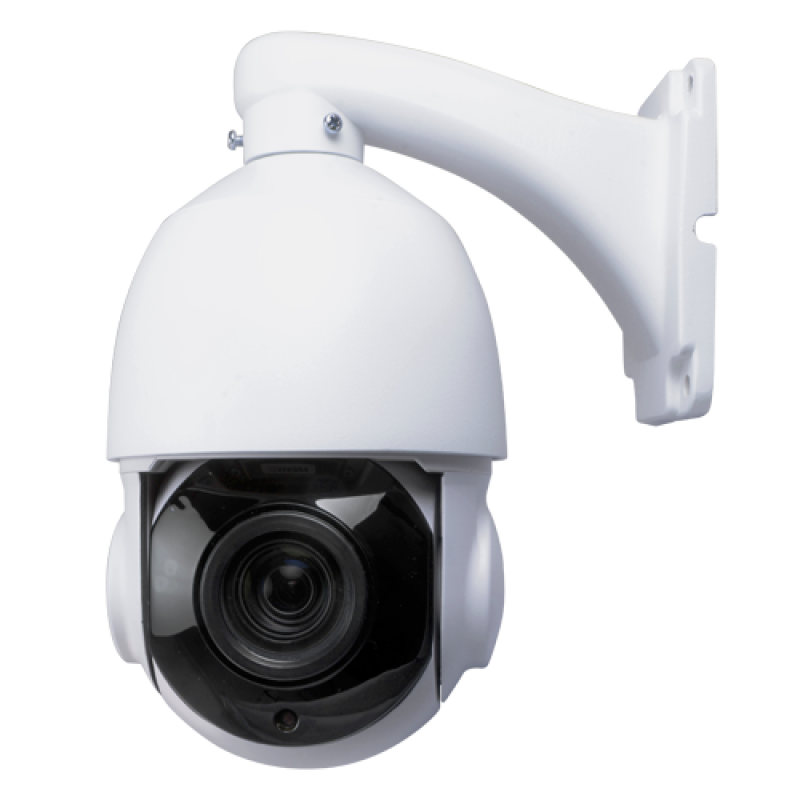

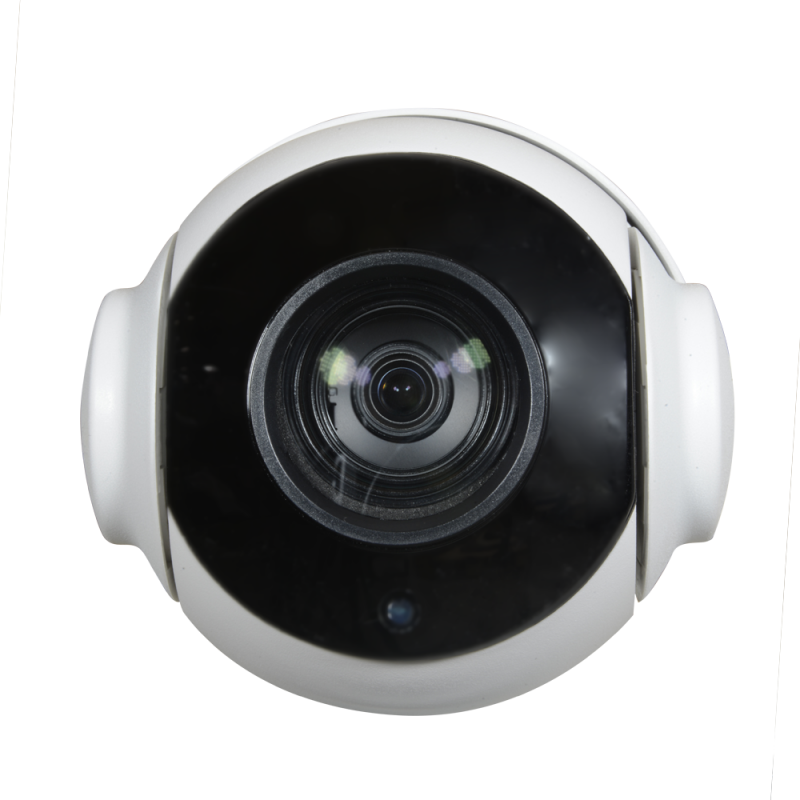

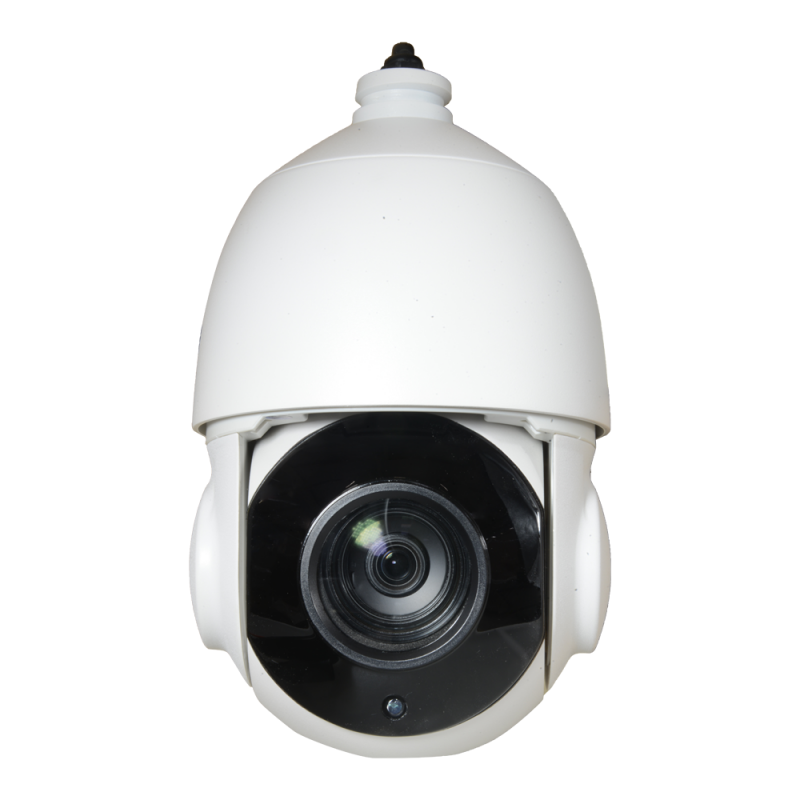

Motorized HDCVI camera 200º/s - 1080P (25FPS) - 1/3" Panasonic© CMOS PN34227 - Optical Zoom 18X (4.7 ~ 85.0 mm) - IR LEDs Range 120 m - IP66
  • Brand: Branded
  • Product Code: SD6118I-FHAC
  • Availability: Discontinued
Om te bestellen en prijzen te kunnen zien moet u zich registreren of inloggen.
To order and view prices you must register or login.

Motorized HDCVI camera 200º/s - 1080P (25FPS) - 1/3" Panasonic© CMOS PN34227 - Optical Zoom 18X (4.7 ~ 85.0 mm) - IR LEDs Range 120 m - IP66


  • HDCVI Speed dome camera
  • Mini format
  • High Speed 200º/segundo
  • 18X Optical zoom
  • 1/3" Panasonic© CMOS PN34227
  • HD 1080P (1920x1080)
  • HDCVI output
  • 4.7~85.0 mm Varifocal lens
  • 0 Lux
  • IR Range 120 m
  • IR Cut
  • Pelco P/D protocols supported
  • OSD Menu
  • Weatherproof IP66
  • Wall bracket included



  • Speed dome camera
  • User instructions
  • Power supply DC 12V / 3000 mA

alt


Article
Brand Branded
POWER
Power DC 12 V / 3 A
General
S/N Ratio >50 dB
Image sensor 1/3" Panasonic© CMOS PN34227
Pan/Tilt Range Horizontal: 0°~360°, Vertical: 0°~93° auto flip 180°
Manual Control Speed Horizontal: 0.02° ~ 45°/sec, Vertical: 0.02° ~ 30°/sec
Resolution 1080P at 25 FPS
Weight 2.8 kg (without bracket)
Communication RS485, Pelco P / Pelco D
Lens Varifocal 4.7~85.0 mm (Optical Zoom 18X)
Audio No
Preset positions 220 preset, 1 auto tour, auto pan, auto scan
Minimal illumination 0.1 Lux (colour) / 0.01 Lux (B/N)
Backlight compensation BLC, DWDR, AWB, AGC, 2D-NR
Gain Control Auto / Manual
Video output BNC HDCVI format
Day / Night Removable mechanical ICR filter
Alarm No
General Characterisitics
Protection Grade P66
Temp. operation -40º C ~ +60º C
Dimensions 250 mm (H) x 120 (Ø) mm (without bracket)
