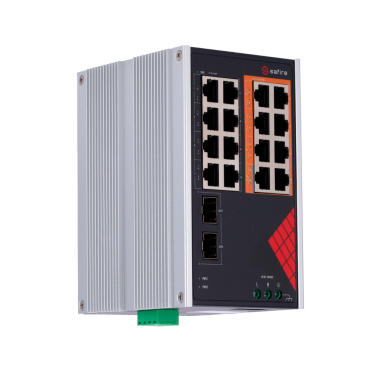

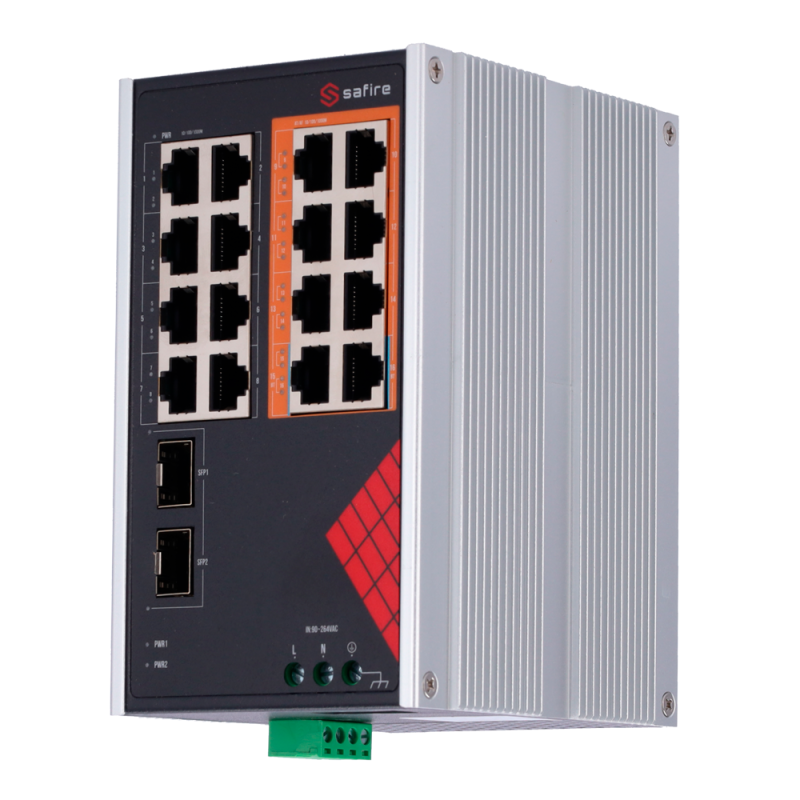

Safire Industrial Switch AC Power 90~264V | 16 Gigabit ports + 2 Gigabit SFPs | 6 PoE+ 30W Ports + 2 Hi-PoE 60W Ports | PoE Watchdog | Up to 130W total PoE power | DIN rail installation
- IP40 Industrial Switch
- AC Power
- 16 RJ45 Gigabit 10/100/1000 Mbps ports
- 6 PoE+ Ports 30W 802.3af/at + 2 Hi-PoE Ports 60W 802.3bt
- 2 Gigabit SFP Ports
- Supports PoE power up to 130W total for all ports
- AI Watchdog
- Extended temperature range -40ºC to 70ºC
- DIN rail installation
- Hi-PoE switch
- Manual
General | |
AI PoE | PoE Watchdog Ports 9~16 - Automatic restart of power to a PoE port when a possible fault is detected. |
Latency | 10 to 100MBps <16μs (using 64 byte packet size) |
Resend Data | 26,78Mbps |
Temp. functioning | -40° C - 70° C |
Port speed RJ45 | 8x RJ45 Gigabit 10/100/1000Mbps 8x RJ45 PoE Gigabit 10/100/1000Mbps 2 SFP Gigabit 10/100/1000Mbps |
MAC Table | 8K |
Weight | 0,5 Kg |
Interface | 16 RJ45 + 2 SFP ports |
Bandwidth | 36Gbps |
PoE features | Up to 130W total for all ports Ports 9~14 PoE+ Up to 30W 802.3af/at Port 15~16 Hi-PoE Up to 60W 802.3af/at/bt |
Transmission Distance | 130 meters |
Power | AC 90~264V |
Protections | 6KV against Lightning 8KV ESD Protection IP40 |
Dimensions | 145 x 110 x 88mm |
