- Brand: TP-Link
- Product Code: CPE510
- Availability: No Stock
Om te bestellen en prijzen te kunnen zien moet u zich registreren of inloggen.
To order and view prices you must register or login.
To order and view prices you must register or login.

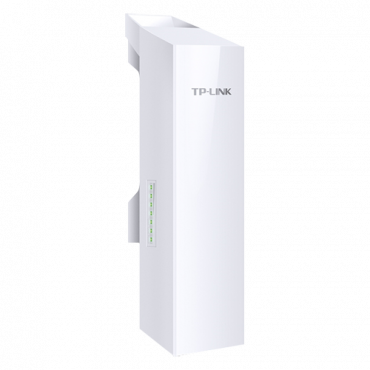

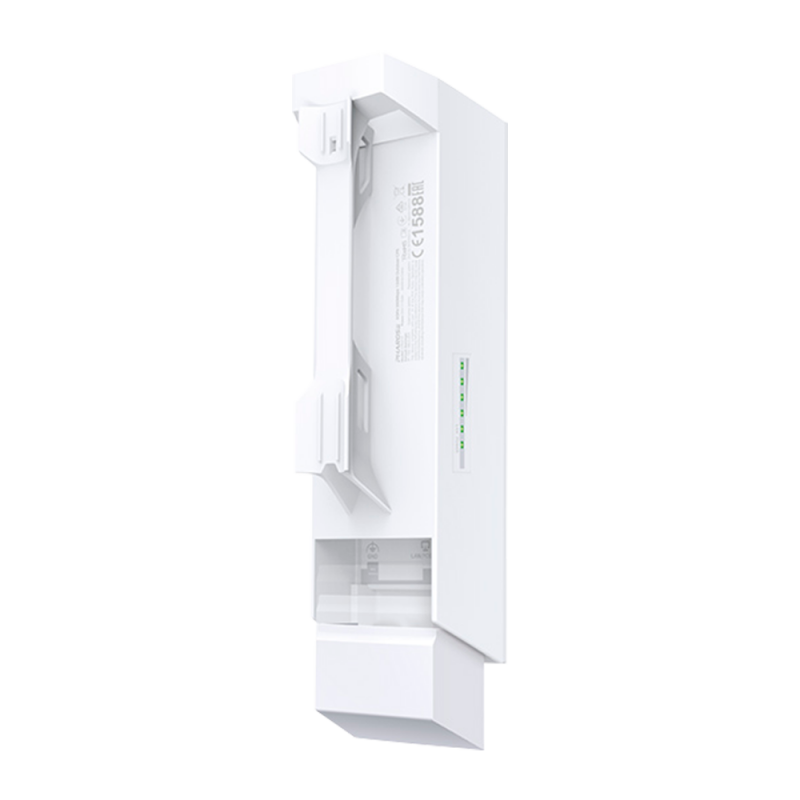

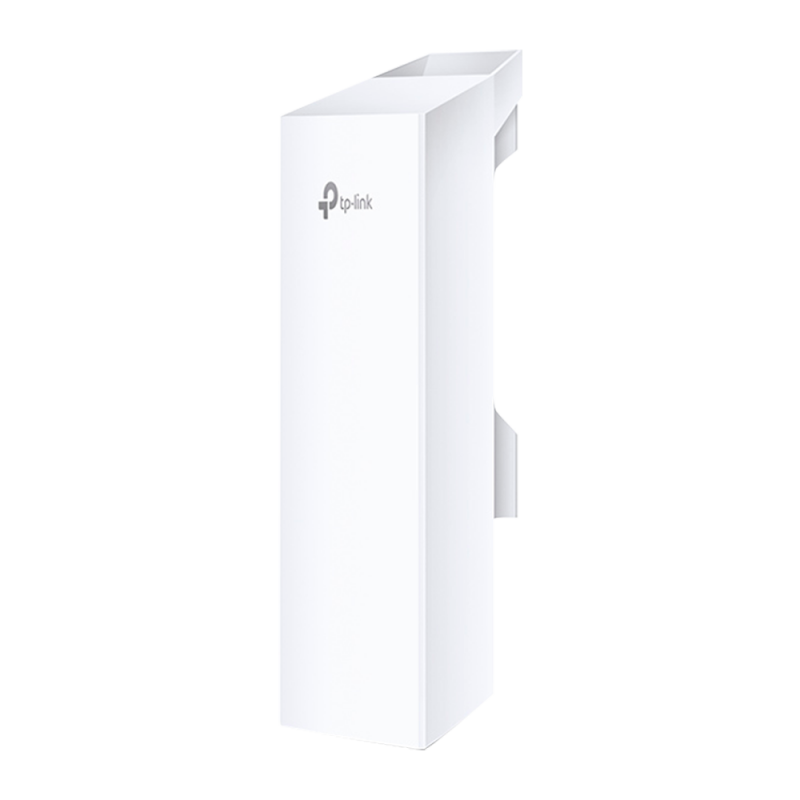

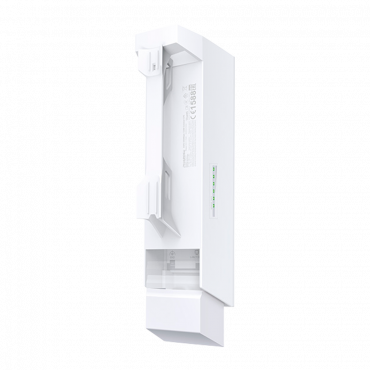

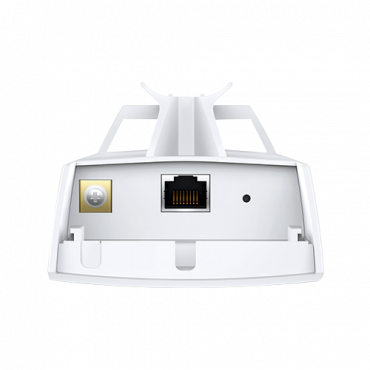

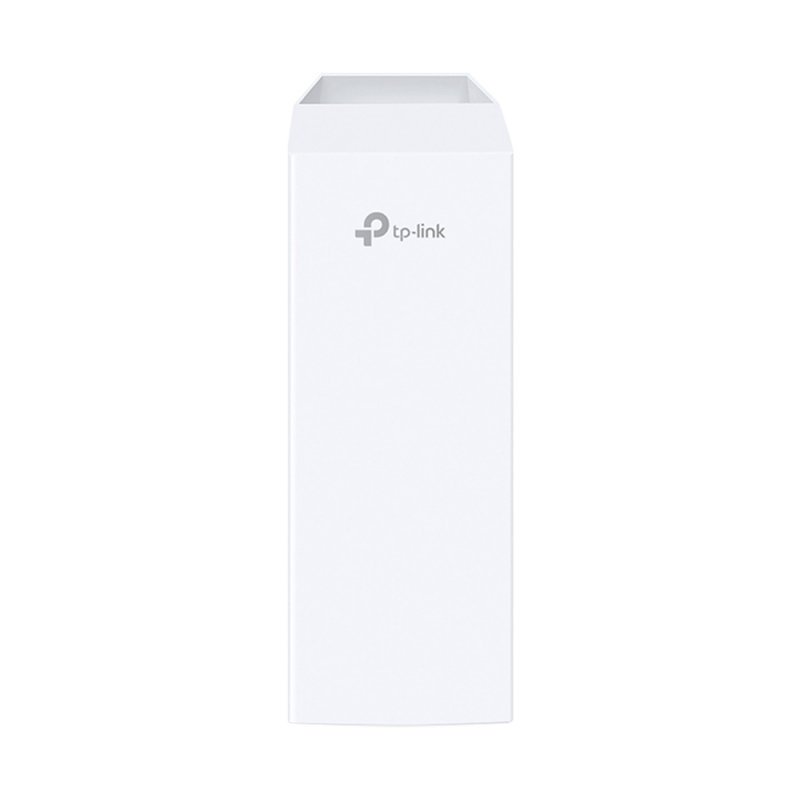

Wireless antenna - Frequency 5.15GHz 5.85GHz - Supports 802.11a/n - IPX5, suitable for exterior - Power 500 mW - Compatible with IP cameras and DVR
- TP-LINK
- CPE Sector Antenna
- Working frequency 5GHz
- Gain 13 dBi
- Double polarized MIMO antennas 2x2
- Transmission power up to 27dBm/500mw
- Pharos MAXtream TDMA technology
- Can be used as AP / Client / Bridge / Repeater / AP Router / AP Client Router
- Passive PoE up to 60 meters
- IPX5, suitable for exterior
- External wireless CPE
- 24V 0.6A Passive PoE adapter
- Mounting straps
- Power supply cable
- Installation guide
| OPERATING ENVIROMENT | |
| Operating Temperature | -40ºC – 70 º C |
| General | |
| Processor | CPU Qualcomm Atheros Enterprise AR9350B 560MHz, MIPS 74Kc |
| Protection | Suitable for exterior IPX5 |
| Antenna | 2x2 13dBi Dual-Polarized Directional MIMO |
| Beam width | 45° (horizontal plane) / 30° (vertical plane) |
| Frequencies | 5.15 ~ 5.85GHz |
| Wireless standard | IEEE 802.11a/n |
| System tools | WiFi Signal quality indicators: Signal strength, Spectrum analyser, Speed test, Ping Traceroute |
| Maximum power transmission | 500 mW (27 dBm) |
| Maximum sensitivity | -93 dBm at MCS0/MCS8 |
| Weight | 355 g |
| Operating modes | AP / Cliente / Bridge/ Repeater / AP Router / Cliente AP Client (WISP) |
| Power | PoE Passive 24 VDC 0.5 A |
| Security | WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP), 64/128/152 bit WEP encryption |
| Dimensions | 60(W) x 79(D) x 224(H) mm |
| Management | Configuration via web interface |
