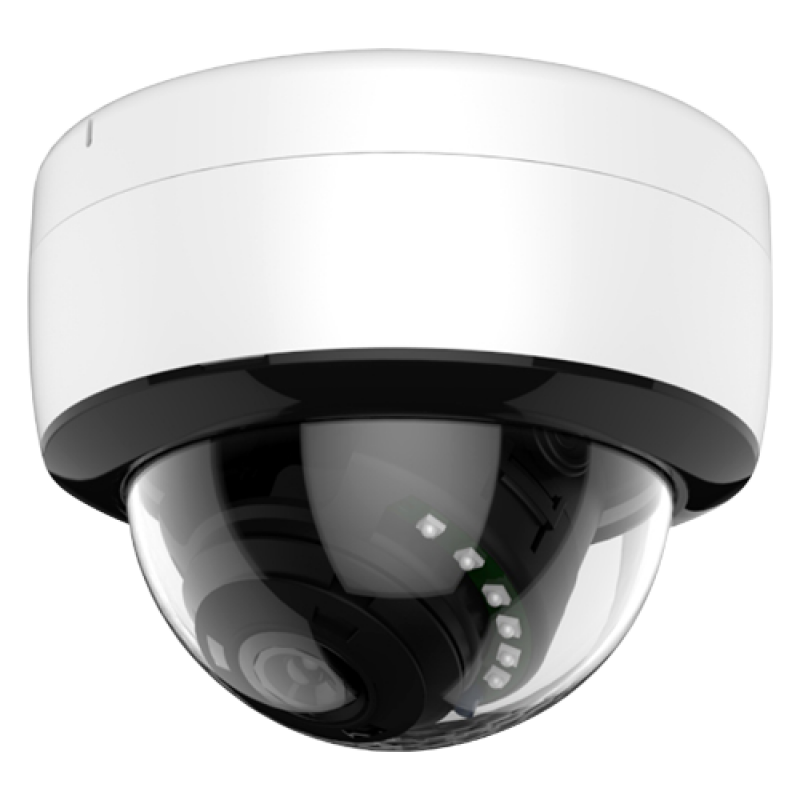

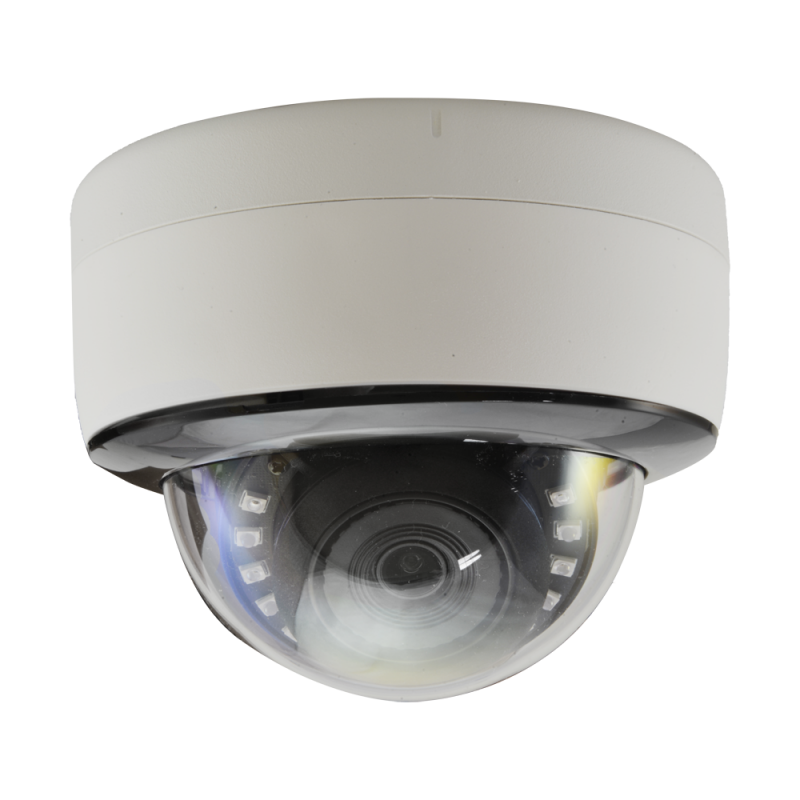

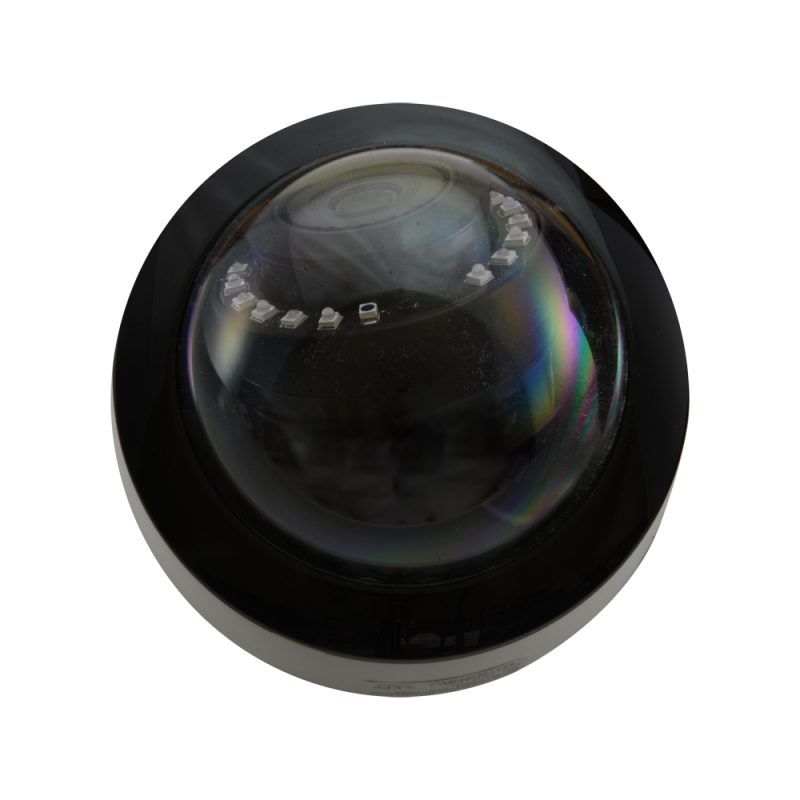

Dome Camera ECO Range - Output 4in1 - 1/3" CMOS 3K - 2.7~13.5 mm Varifocal lens - IR Matrix LEDs IR Matrix LEDs Range 20 m - Waterproof IP66 | Anti-vandal IK10
  • Brand: Oem
  • Product Code: D926V-3KE
  • Availability: Discontinued
Om te bestellen en prijzen te kunnen zien moet u zich registreren of inloggen.
To order and view prices you must register or login.

Dome Camera ECO Range - Output 4in1 - 1/3" CMOS 3K - 2.7~13.5 mm Varifocal lens - IR Matrix LEDs IR Matrix LEDs Range 20 m - Waterproof IP66 | Anti-vandal IK10

  • HDTVI, HDCVI, AHD and Analog Dome Camera
  • ECO Range
  • 1/3" CMOS 3K
  • 3K (2880x1620)
  • Output 4in1
  • 2.7~13.5 mm Varifocal lens
  • 0 Lux
  • IR Matrix Range 20 m
  • 2D DNR
  • IR Cut
  • Weatherproof IP66
  • Vandal proof IK10



  • Dome Camera 4N1
  • Installation material
  • User instructions

alt


Article
Brand Oem
Product Code D926V-3KE
Series ECO
General
Resolution TVI: 3K (20 fps) / 4 Mpx (15~30 fps) / 1080p (25~30 [%VAR%] fps) CVI: 4 Mpx (25~30 fps) / 1080p (25~30 [%VAR%] fps) AHD: 4 Mpx (15~30 fps) / 1080p (25~30 [%VAR%] fps) CVBS: PAL/NTSC
Image sensor 1/3" CMOS 3K

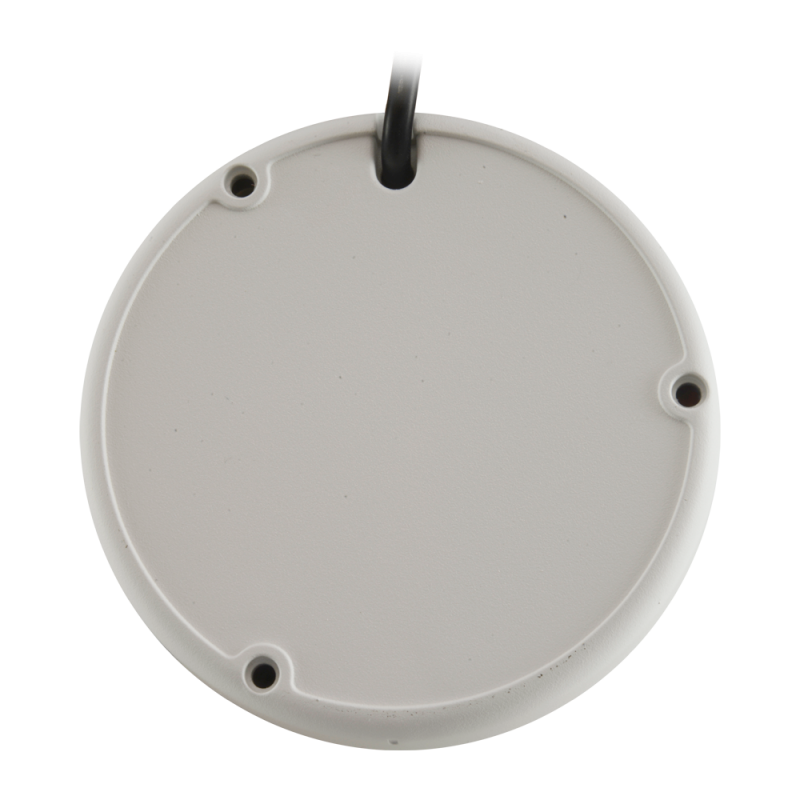

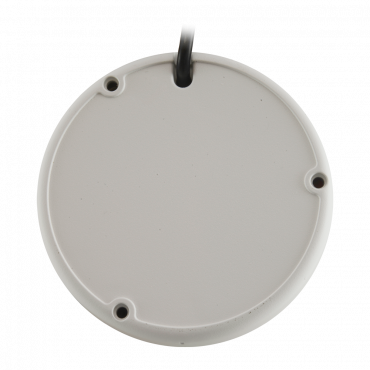

Base diameter 100 (Ø) mm / 3 screws

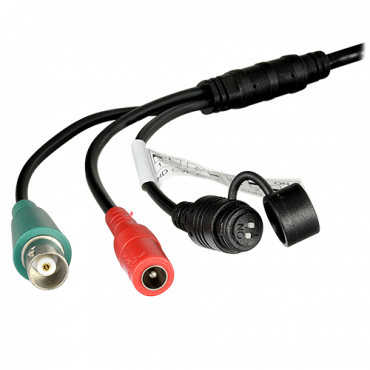

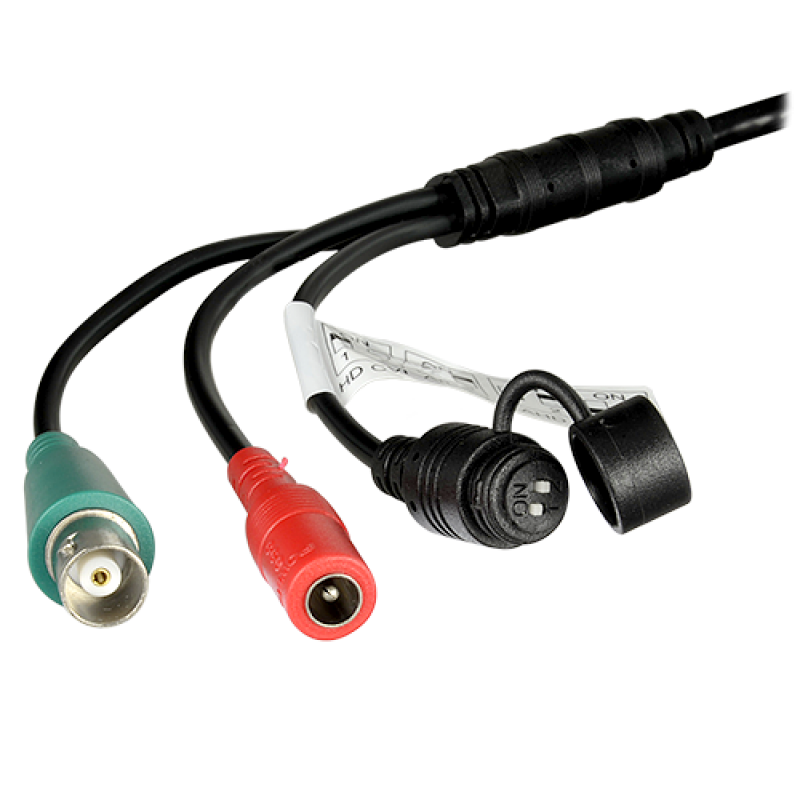

Video Output 1 x BNC switchable between HDTVI / HDCVI / AHD / CVBS
Maximum resolution 3K (2880x1620) to 20 fps
Weight 380 g
Lens 2.7~13.5mm varifocal
Audio No
Day / Night Auto / Color / BW (black and white)
Dimensions 88 (H) x 112 (Ø) mm
Minimum illumination 0.01 Lux @ (F1.2, AGC ON)
Material Metal and plastic
Power DC 12 V / 400 mA, 4.8 W max.
Viewing angle 105º (H)
Infrared lighting 0 Lux / IR Matrix LEDs (range 20 m)
Video output switching Via Switch
Temp. operation -10º C ~ +55º C
Alarm No
Basic functions OSD menu (remote)
Degree of protection Waterproof IP66 / Anti-vandal IK10
Configurable OSD functions DWDR, 2D DNR, AE, ATW, AWB, BLC, Mirror, Flip
