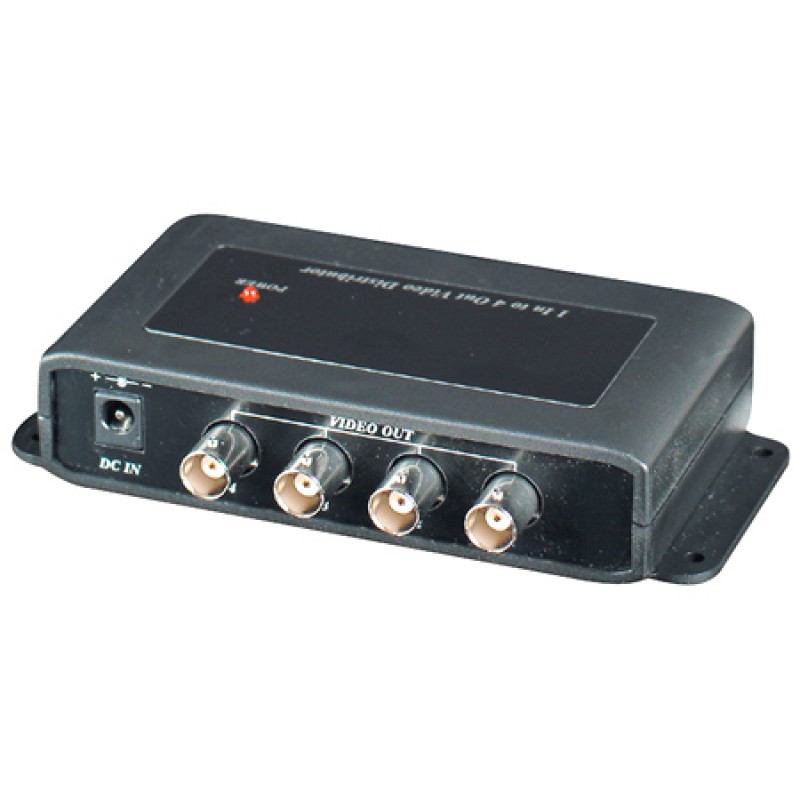

1 x 4 HD-TVI/AHD/HDCVI/CVBS Video Distributor
CD104HD is a video distributor that can split an HD-TVI/ AHD/ HDCVI/ CVBS signal into 4 ones with up to 4K (8MP) resolution.
- Extends and splits a video signal into 4 ones.
- Supports HD-TVI, AHD, HDCVI, 960H, NTSC, PAL video formats.
- Resolution up to 8MP(4K).
- Supports UTP (Up the Coax).
- Built in TVS protection.
_V1.0.png){kind=icon}
_V1.0.png){kind=icon}
- CD104HD-2
- Installation Manual
- Power supply
- screws and plugs
| General | |
| Dimensions | 138.8 x 85.6 x 29.5mm |
| Power Consumption | 110mA (Max) |
| Max. Video Resolution | 4K |
| Humidity | Up to 95% |
| Power Supply | DC 12V 500mA |
| Video Bandwidth | 100MHz 0.1dB |
| Video format | HD-TVI, AHD, HDCVI, 960H, NTSC, PAL |
| Storage Temperature | -20 to 85℃ |
| Video Input | 1 x BNC (1V p-p, 75Ω) |
| Video Output | 4 x BNC (1V p-p, 75Ω) |
| Weight | 140g |
| Temp. operation | 0 to 55℃ |
