Multi-Stance Capacity Control Kit - Camera IPCOUNT-3D-EXT-0280 - PC with SF-COUNT-MULTIROOM software - Multiple viewers at the entrances - Customized reports - Multi-channel system up to 100 cameras
  • Brand: X-Security
  • Product Code: KIT-PEOPLECOUNT-1PRO
  • Availability: In Stock
Om te bestellen en prijzen te kunnen zien moet u zich registreren of inloggen.
To order and view prices you must register or login.

Multi-Stance Capacity Control Kit - Camera IPCOUNT-3D-EXT-0280 - PC with SF-COUNT-MULTIROOM software - Multiple viewers at the entrances - Customized reports - Multi-channel system up to 100 cameras


  • X-Security

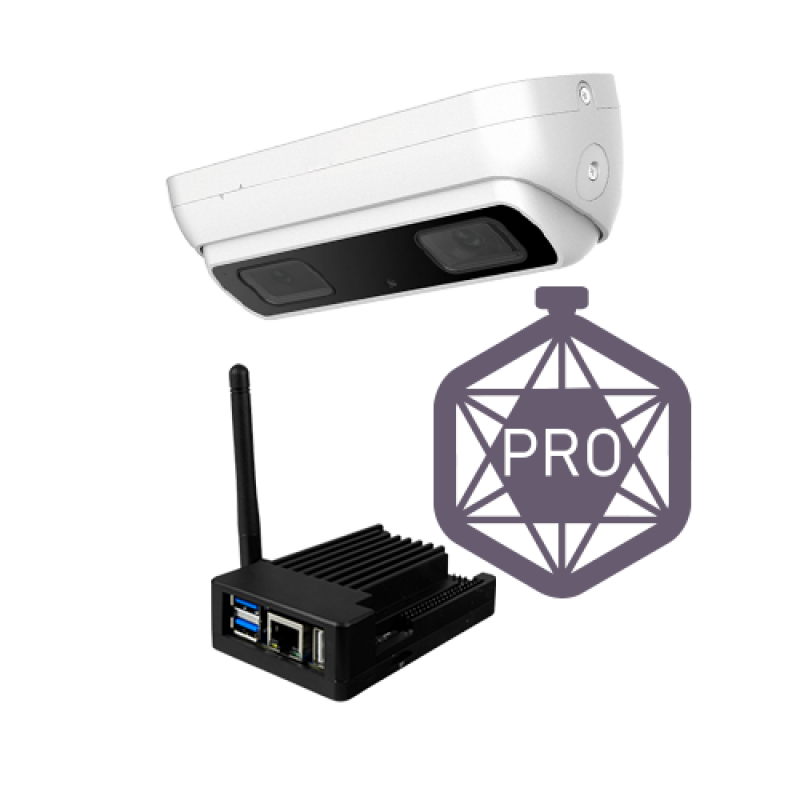

  • Full Capacity Control Kit in 1 Multi-Stance
  • People counting camera IPCOUNT-3D-EXT-0280
  • PC with installed SF-COUNT-PRO software
  • Capacity control up to 20 rooms
  • Multi-channel system up to 100 people counting cameras (Expandable)
  • Capacity per camera, floor, room or in total
  • Hourly, daily, monthly and yearly statistical reports
  • Multiple viewers on different devices via web server
  • Sound and visual notification on the screen when the permitted capacity is reached
  • Fully centralized


  • IPCOUNT-3D-EXT-0280 IP Camera
  • Mini PC
  • SF-COUNT-MULTIROOM software

alt



Article
Brand X-Security
Product Code KIT-PEOPLECOUNT-1PRO
PC
Audio MIC Input / 3.5mm Jack & HDMI Output
Communication 1xGigabit Ethernet, Wifi 5 (802.11ac dual band), Bluetooth 5.0, USB 3.0, USB 2.0, USB 3.0 (Type C)
CPU 6-core
Memory 4GB LPDDR4
Operating System Linux Based
Power DC 5V / 3A
Video 1 x HDMI 2.0 (Type A) Up to 4K @ 60 FPS

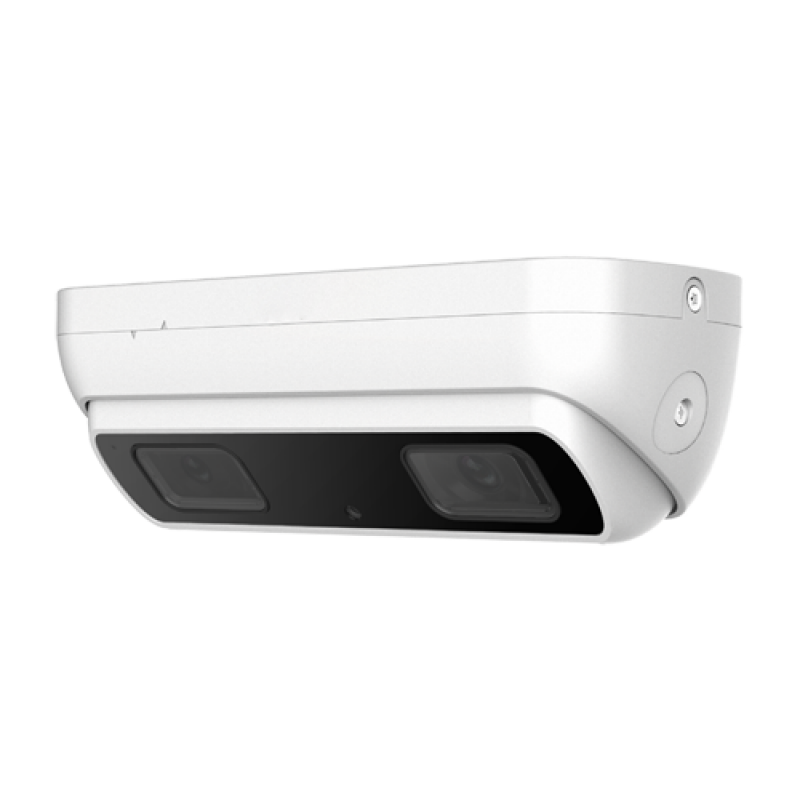

IP camera
Model IPCOUNT-3D-EXT-0280
Alarms 2 input / 2 output (Supports up to 30 VDC, 1 A / 50 VDC, 0.5 A)
Base dimensions 42 x 65 mm / 4 screws
Bitrate 3 Kbps ~ 16 Mbps
Communication interface 1 x Ethernet 10/100M BaseT
Day / Night Auto / Programmable / Manual
Functions 3D-DNR, BLC, DWDR
Image sensor 1/2.8” Progressive Scan CMOS
Infrared Illumination 20 m
Interoperability ONVIF
Material Body: Metallic
Maximum resolution 3 Mpx
Other functions Height Filter | Door Status Indicator
People counting Statistics of entries, exits and transit | Daily, weekly, monthly and annual reports
Main Stream rate 2048 x 1536
Compression H.265+ / H265 / H.264+ / H.264
Lens 2.8 mm (H: 96º, V: 70º)
Audio 2 IN / 1 OUT
Power DC 12 V / 600 mA, PoE (IEEE802.3af)
Degree of protection Interior
Remote access Web Browser, Smartphone App and Capacity Control Software
Temp. operation -40º C ~ +60º C
Dimensions 61.5 (H) x 204 (W) x 78 (D) mm
Weight 810 g
Software
Cameras Up to 100 people counting cameras (Supports Safire, Uniview and X-Security devices)
Capacity Control Control over 20 occupancies
Display Via web browser. Unlimited devices and independent image on each device.
Model SF-COUNT-LITE (Safire Doors Pro)
Other Customizable notifications and logos. 3 user levels: Administrator, Supervisor and Operator. Remote Update.
Reports Personalized. Ability to download reports in Excel file
