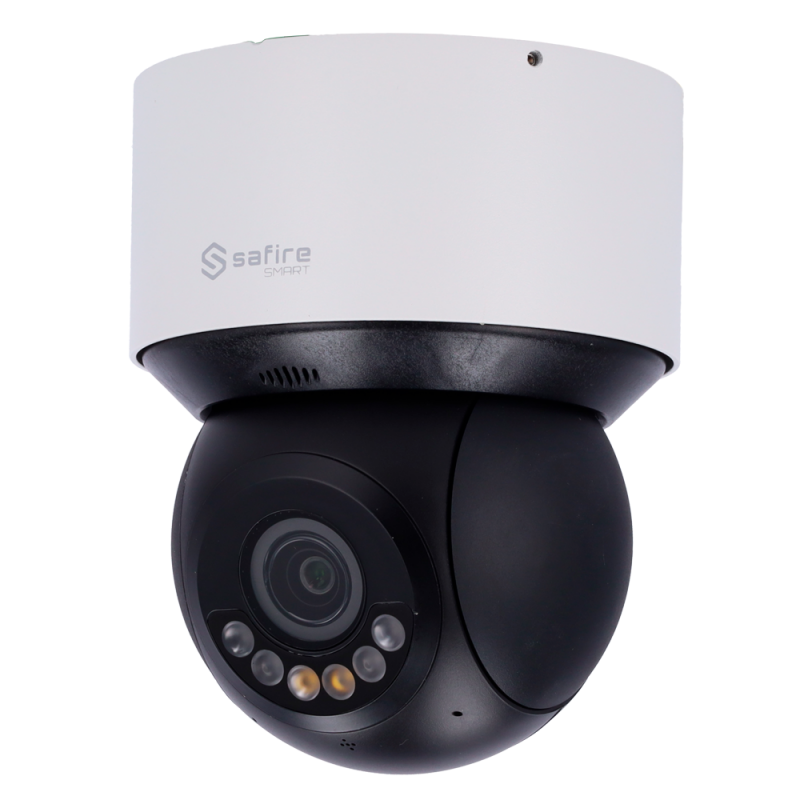

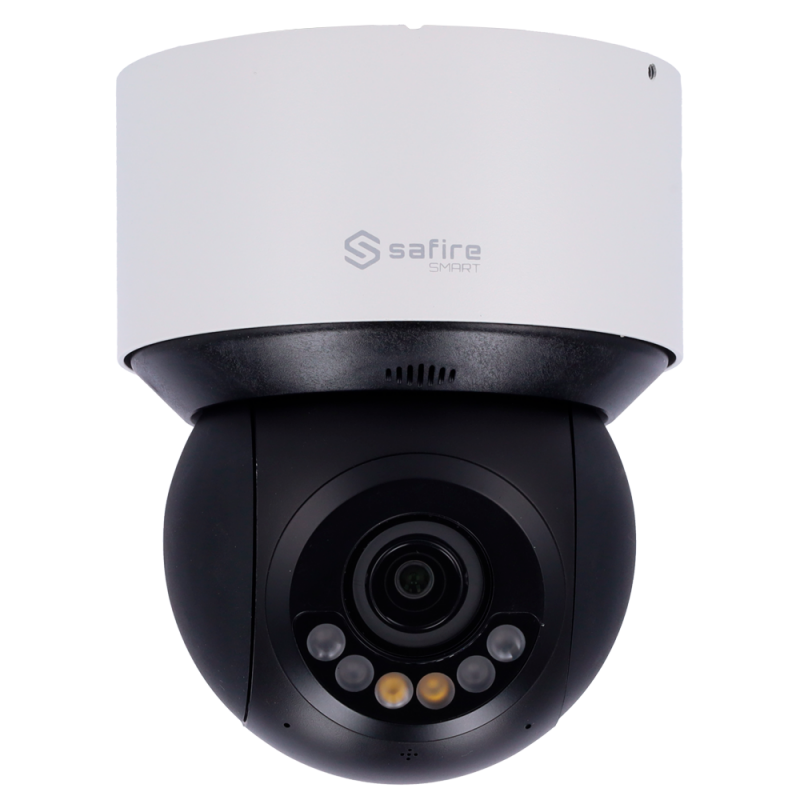

Safire Smart - IP PTZ camera B1 Range - Artificial Intelligence - Resolution 4 Megapixel (2560x1440) - Optical zoom 4x | Dual Light: IR 50m White 30 m - Autotracking, human and vehicle | Alarms - IP66 & IK10 Rating | PoE+ (IEEE802.3at)
  • Brand: Safire Smart
  • Product Code: SF-IPSD3004TA-4SB1-DL
  • Availability: In Stock
Om te bestellen en prijzen te kunnen zien moet u zich registreren of inloggen.
To order and view prices you must register or login.

Safire Smart - IP PTZ camera B1 Range - Artificial Intelligence - Resolution 4 Megapixel (2560x1440) - Optical zoom 4x | Dual Light: IR 50m White 30 m - Autotracking, human and vehicle | Alarms - IP66 & IK10 Rating | PoE+ (IEEE802.3at)


  • Safire Smart
  • Economic B1 range with Artificial Intelligence
  • IP PTZ camera
  • 1/2.7" Progressive Scan CMOS
  • 4 Megapixel (2560x1440)
  • 4X Optical zoom
  • 2.8-12 mm Lens
  • 0 Lux
  • Dual light: IR Range 50m & White Light 30m
  • Compression H.265+ / H.264+
  • WDR
  • 3DNR
  • Artificial Intelligence for human and vehicle classification
  • Intelligent autotracking, tracking of humans and vehicles
  • MicroSD card up to 256GB
  • Integrated microphone & speaker
  • Bidirectional audio
  • Alarm
  • WEB, CMS, Smartphone and NVR interface
  • ONVIF Compatible
  • PoE+ (IEEE802.3af)
  • Weatherproof IP66
  • Vandal proof IK10



  • Safire Smart B1 IP PTZ camera
  • Installation material
  • Installation quick guide

alt


General
Temperature protection Built-in temperature sensor, automatic shutdown in case of excess temperature
Active Deterrence Yes Upon detection of an area intrusion, the camera will follow the moving target, zoom in on the central display, turn off the IR light, turn on a white light and play a warning sound until the object leaves the perimeter area
Audio Compression G.711 A/U
Image sensor 1/2.7“ Progressive Scan BSI
Pan/Tilt Range Horizontal: 355°, Vertical: -5°~90° auto flip
Sub Stream Rate (704×576, 640×480, 352×288)
Third Stream Rate (1280×720, 704×576, 640×480, 352×288)
Bit Rate 64Kbps ~ 16Mbps
Optical Zoom 4X
Range performance W: 68 m (D), 27 m (O), 14 m (R), 7 m (I) T: 207m (D), 82 m (O), 41 m (R), 21m (I)
Main Stream Rate (2560×1440, 2048×1536, 1920×1080, 1280×960, 1280×720)
Power Supply DC 12 V / 2A, PoE+ IEEE802.3at
Resolution 4 Megapixel (1560x1440)
Network Interface Ethernet 10 / 100M BaseT
Remote Access Web Browser, Smartphone App Safire Smart, PC Software Safire Smart VMS
Interoperability ONVIF, PSIA, CGI
Preset positions 300 Preset, 8 Tours, 4 Patrols
Electronic shutter 1/1s~1/10,000s
Lens 2.8 - 12 mm
PTZ Control Through network access
Speed between Presets Horizontal: 80° /s, Vertical: 60° /s
Audio 1 Input / 1 Output Built-in microphone and speaker (two-way audio)
Day / Night Removable mechanical ICR filter
FOV H: 97º - 31º / V: 51º - 18º / D: 115º - 36º
Minimum illumination Colour: 0.01 Lux @(F1.6, AGC ON), 0 Lux with IR
Digital Zoom 16X
Manual speed Horizontal: 0.1° ~ 80°/sec, Vertical: 0.1° ~60°/s
Audio Bit Rate 64 Kbps
Image improvements BLC, HLC, WDR, 3D-NR, AGC, AWB, MD, Privacy Masking, ROI
Advanced functions Artificial intelligence based on human-vehicle classification on: Area Intrusion, Line Crossing, Entry Region, Exit Region
Temp. operation
Alarms 1 Input / 1 Relay
Internal memory MicroSD card, Max 256 GB
Degree of protection Waterproof IP66 / Vandal resistant IK10 / Overvoltages 6000V
Dimensions (without bracket) 162 (H) x 130(Ø) mm
Intelligent Tracking Intelligent tracking of humans and vehicles
Weight (without bracket) 2000 g
IR Distance Colour: 0.01 Lux @(F1.6, AGC ON), 0 Lux with IR
Compression H.265+/ H.265 / H.264+/ H.264
