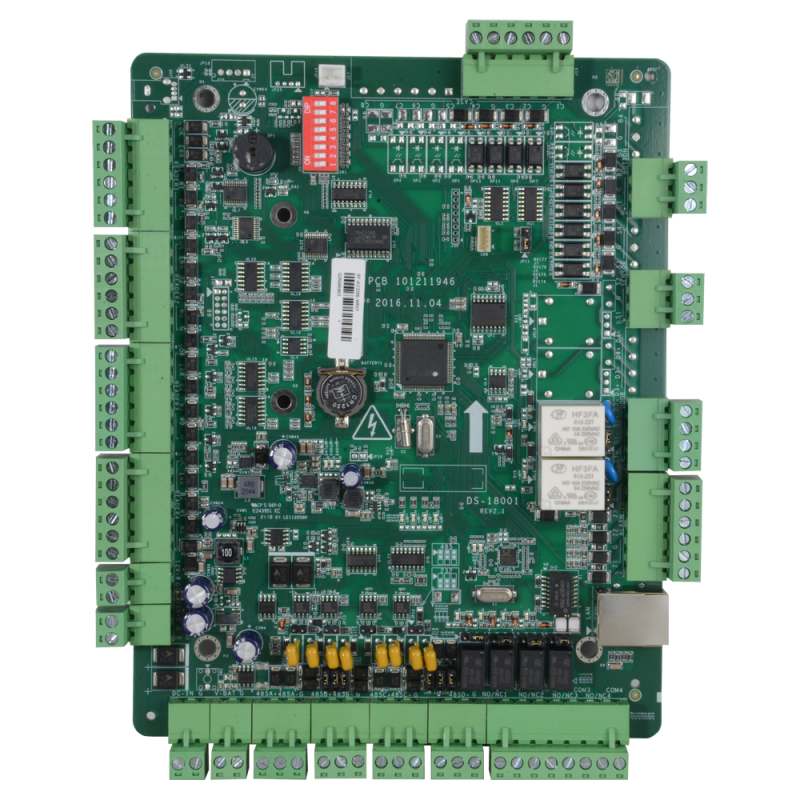

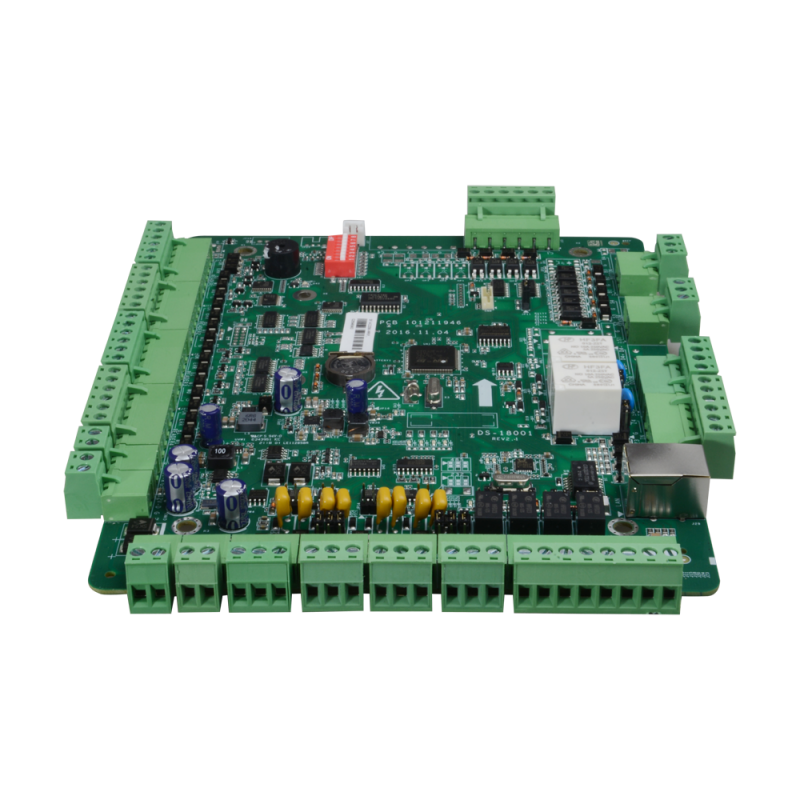

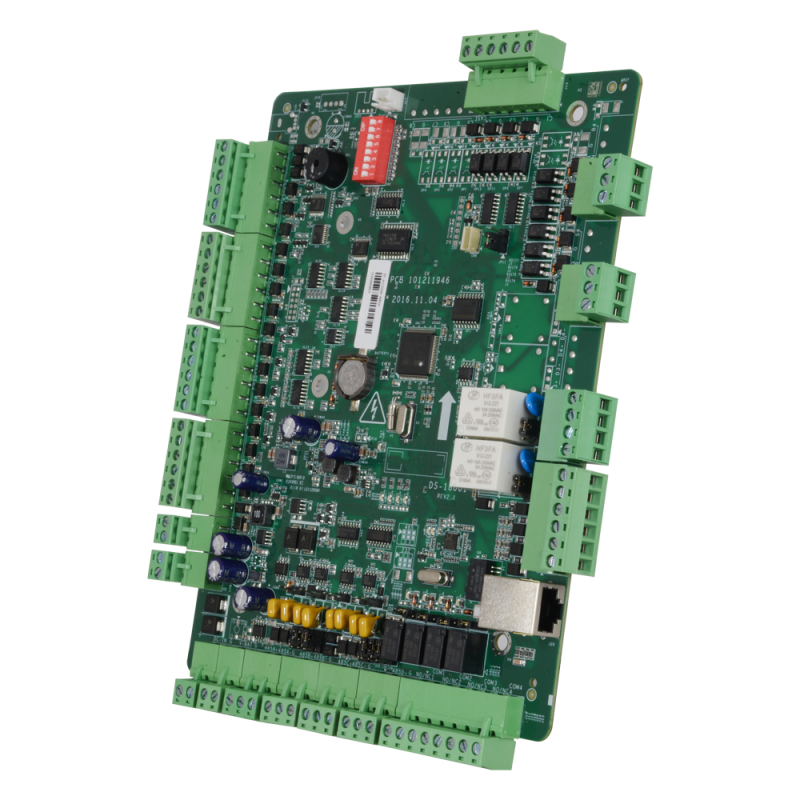

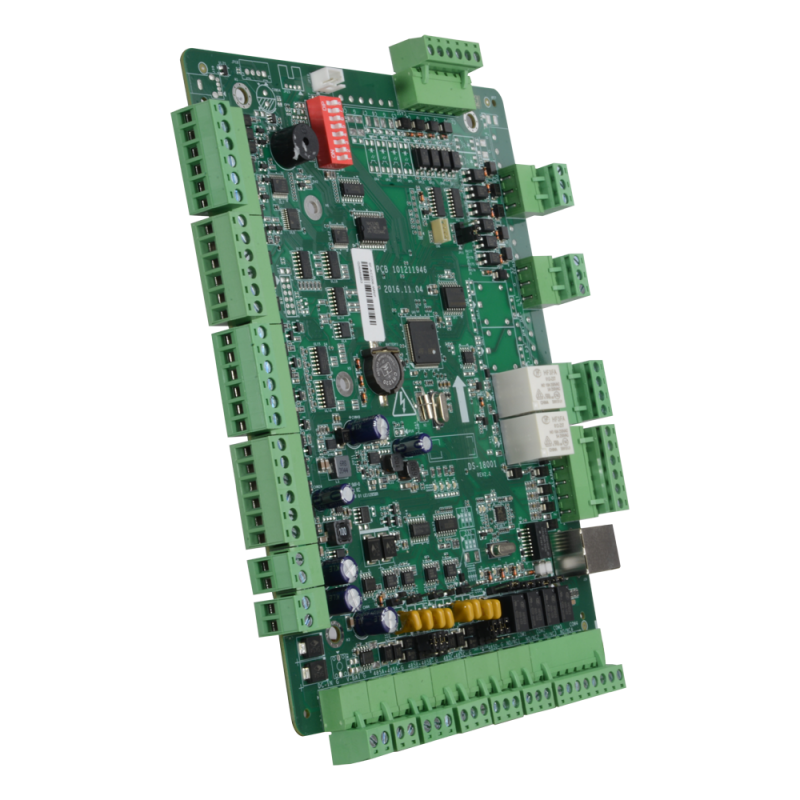

Biometric access controller - Access by fingerprint, facial, card or password - TCP/IP | eHome | ISAPI | OSDP communication - 4 Wiegand inputs 26 and 4 RS485 - Relay output for two doors
  • Brand: Safire
  • Product Code: SF-AC2206-WRIP
  • Availability: Discontinued
Om te bestellen en prijzen te kunnen zien moet u zich registreren of inloggen.
To order and view prices you must register or login.

Biometric access controller - Access by fingerprint, facial, card or password - TCP/IP | eHome | ISAPI | OSDP communication - 4 Wiegand inputs 26 and 4 RS485 - Relay output for two doors


  • Safire
  • Cashless biometric access controller
  • Management of 2 doors
  • Capacity for 100.000 cards & 300.000 registers
  • Supports up to 4 Wiegand readers and 4 per RS485
  • TCP/IP, OSDP, eHome, and ISAPI communication
  • Input of 2 push buttons, 2 door sensors, 4 alarm inputs and 4 auxiliary inputs
  • 2 relay outputs and 4 alarm outputs
  • Relay configuration NO/NC
  • Advanced features: locks, anti-passback and first user
  • Compatible with Safire Control Center-software



  • Safire PRO Access Controller without box
  • Mounting material
  • User instructions

alt


Article
Brand Safire
Model SF-AC2206-WRIP
General
Dimensions 215 (W) x 20 (H) x 180 (D) mm
Hardware CPU 32bit MIPS CPU
Power Supply DC 12 V / 1 A max.
Identification modes Fingerprint, facial, card and/or passwords
Weight 500 g
Communication TCP/IP | RS485 | ISAPI | eHome | OSDP
Functions Multi-door locks, anti-passback, multi-card, first opening card
Records 300.000 registers
Temp. operation -20º C ~ +65º C
Software Safire Control Center / Safire Control Center AC
Capacity Up to 100.000 users (97.000 users / 3.000 visitors / 5.000 footprints)
Inputs 4 x Wiegand 26, 2 x door sensor, 2 x open button, 4 x RS485, 4 x AUX, 4 x alarm, 1 x tamper
Proximity card EM RFID (125 kHz) or MF (13.56 MHz)
Outputs 2 x relay outputs, 4 x alarm outputs
