Streamax | Dashcam C6LITE-SA for vehicles | 1/2.8" 1080P CMOS sensor | Possibility of adding a second AHD camera | Installation on front window | Supports 2.4G and 4G Wifi
  • Brand: Streamax
  • Product Code: ST-C6LITE-SA
  • Availability: No Stock | Reserve
Om te bestellen en prijzen te kunnen zien moet u zich registreren of inloggen.
To order and view prices you must register or login.

Streamax | Dashcam C6LITE-SA for vehicles | 1/2.8" 1080P CMOS sensor | Possibility of adding a second AHD camera | Installation on front window | Supports 2.4G and 4G Wifi


  • Streamax
  • Dashcam for vehicles
  • Maximum resolution 1080P
  • Expandable with an additional 1CH AHD up to 1080P
  • 2.6mm lens
  • 0.05 Lux
  • Integrated Linux operating system
  • Compression H.265/H.264
  • Integrated microphone
  • Internal storage with 2x microSD memory up to 256GB
  • WiFi communication and 4G


  • Camera ST-C6LITE-SA
  • Power
  • Allen wrench

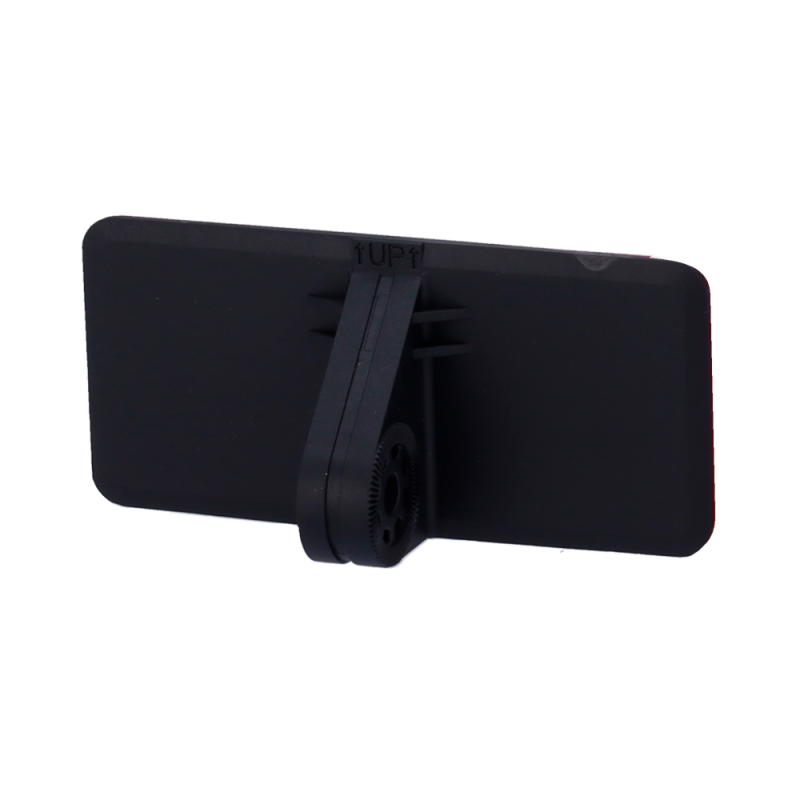

  • Mounting bracket
  • Installation quick guide


General
S/N > 48dB
Sensors Accelerometer: 6 axes (collision detection, hard cornering, hard braking) 1x RS232 1x CAN
Audio Compression APCM/G.711/G.726
Management Software Centralized CEIBA II or autonomous server
Vídeo 1 CH: Dashcam (Embedded)
Power DC 9-36V, Max. 11.5W
certificates Emark, CE-RED, FCC-ID, EN50155-EMC, UKCA, EN50155, ROHS, REACH, PTCRB, AT&T, Verizon
Maximum resolution 1080P
4G communication 1x SIM Slot: SIM card slot LTE FDD: B1/B3/B7/B8/B20/B28A LTE TDD: B38/B40/B41 WCDMA: B1/B8 GSM: B3/B8
Bluetooth communication Supported
Storage 2x microSD card slots up to 256GB per slot
Summary of Functions Live viewing, video recording, video playback, network streaming and GPS positioning
Wi-Fi communication 2.4 GHz
CAN Bus Supported
Sensor 1/2.8" CMOS
Video inputs 1 AHD Input
Video Output 1 CVBS
Image enhancements Brightness, Chroma, Contrast, Saturation, Sharpness, BLC and DWDR adjustment
Installation On windshield
Temperature Range -40ºC to 70ºC
Lens Dashcam: 2.6 mm (H: 113º, V: 71º, D: 143º)
Positioning GPS
Audio Microphone and Speaker
Network Protocols HTTP, TCP, ARP, UDP, UDP, FTP, DHCP, DNS, IPV4, NTP
Alarms 4 Inputs
Video Compression H.265 / H.264
Recording resolution Main stream: 1080P@20 FPS(Dashcam)+1080P@20 FPS(DSC)+ Sub-stream: 2 × CIF@30 FPS
