- Brand: ThermTec
- Product Code: THERMTEC-Y650
- Availability: On request
Om te bestellen en prijzen te kunnen zien moet u zich registreren of inloggen.
To order and view prices you must register or login.
To order and view prices you must register or login.
ThermTec Dual Thermal IP PTZ Camera - temperature sensor 640x512VOx - lens 50mm - visible sensor 4MPx - lens 6,5 - 240mm - Thermal sensitivity ≤50mK - Thermal accuracy ± 8ºC - Intrusion and temperature detection
- ThermTec
- Thermal Dual IP PTZ Camera
- Thermal sensor 640x512/12µm VOx
- Thermal Lens 50m
- Spectral range 8~14µm
- Thermal sensitivity <50mK
- Sensor visible 4MPx
- Lente visible 6,5-240mm
- H.265 / H.264
- RJ-45 10/100M BaseT
- Alarmas
- Detección de temperatura y alarma
- Compatible ONVIF

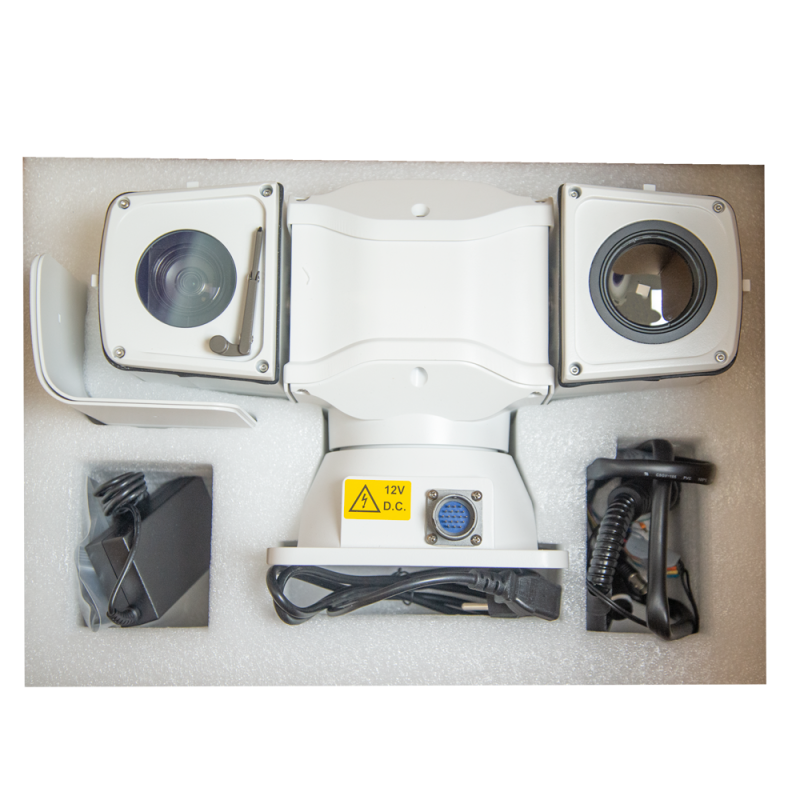

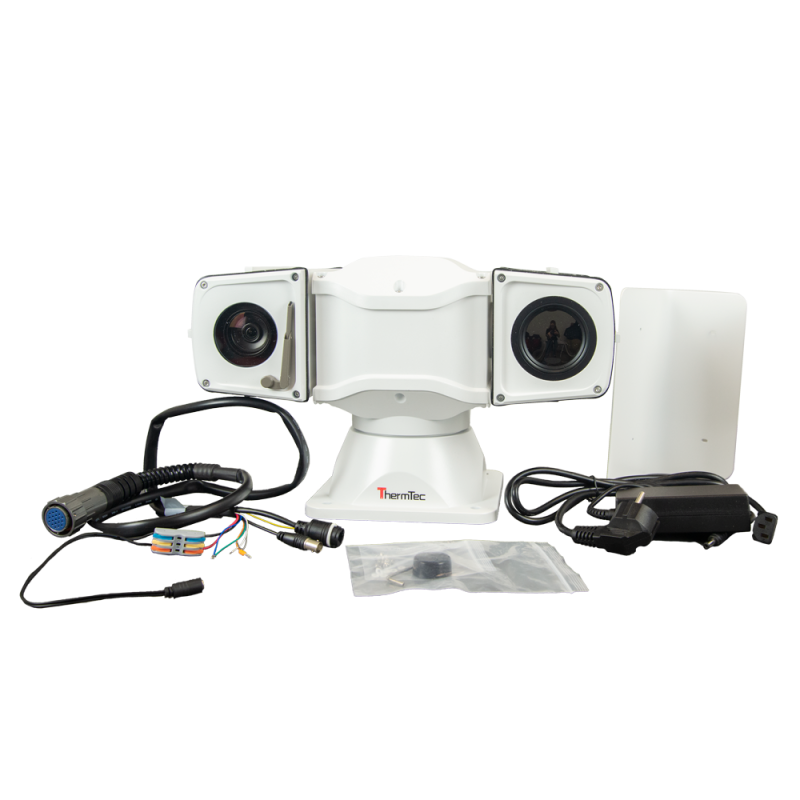

- Thermal Dual IP PTZ Camera
- Power supply 24V DC
- Installation material
- User instructions
| Article | |
| Brand | Thermtec |
| Product Code | THERMTEC-Y650 |
| General | |
| Protection Class | IP66 |
| Pan/Tilt Range | Horizontal: 0°~360° (endless), Vertical: 180° (-90° ~ 90°) |
| Sub Stream Rate | 768x576 (25fps)(term) / 1280x720 (25fps) (view) |
| Thermal sensor | 640x512/12µm VOx |
| Optical sensor | 4 MPx 1/1.8" Sony Progressive Scan CMOS |
| Power | 24 VDC / 5A / 30W |
| Detectable Temperature Range | -20 ℃ to 150 ℃ ( -4 ℉ to 302 ℉) |
| Main Stream Rate | 1280x720 (25fps)(term) / 2560x1440 (25fps)(view) |
| Network Interface | 1x Ethernet 10/100M BaseT |
| Precision | ± 8ºC |
| Remote Access | WEB interface, VMS |
| Interoperability | ONVIF, SDK, CGI |
| Preset positions | 200 preset |
| Weight | 15Kg |
| Angle of View | H: 8.8º (term) / H: 70.0º - 2.51º (view) |
| Image enhancements | AGC, NUC, IDE, HDE, DNR |
| Lens | 50mm (term) / motorized autofocus 6.5 ~ 240mm (view) 37X |
| Audio | 1 input / 1 output |
| Thermal sensitivity | ≤50mK |
| Manual speed | Horizontal: 0.1° ~ 30° /s, Vertical: 0.1° ~ 10° /s |
| Detection range | Person detection (1.8x0.5 m): 2083 m Vehicle detection(4x1.4m): 5833m Person recognition (1.8x0.5 m): 521 m Vehicle recognition (4x1.4 m): 1458 m Person Identification (1.8x0.5 m): 260 m Vehicle identification (4x1.4 m): 729 m |
| Spectral range | 8 ~ 14µm |
| Smart Features | Temperature detection, motion detection |
| Temp. operation | -20º C ~ +60º C |
| Dimensions | 458mm x 255mm x 290mm |
| Alarm | 1 Exit / 1 Entry |
| Others | RS-485 |
| Compression | H.265 / H.264 |
