- Brand: Energenie
- Product Code: EG-UPS-001
- Availability: In Stock
Om te bestellen en prijzen te kunnen zien moet u zich registreren of inloggen.
To order and view prices you must register or login.
To order and view prices you must register or login.
Single-phase Line Interactive UPS - Power 650 VA (390 W) - Input 220~240VAC / Output 220 VAC - 4 x Schuko (output) - Recharge time 8 h - sealed lead-acid 12 V DC / 7Ah
- Uninterruptable 650 VA power supply with modified sine wave output
- Automatic AC voltage regulation (AVR)

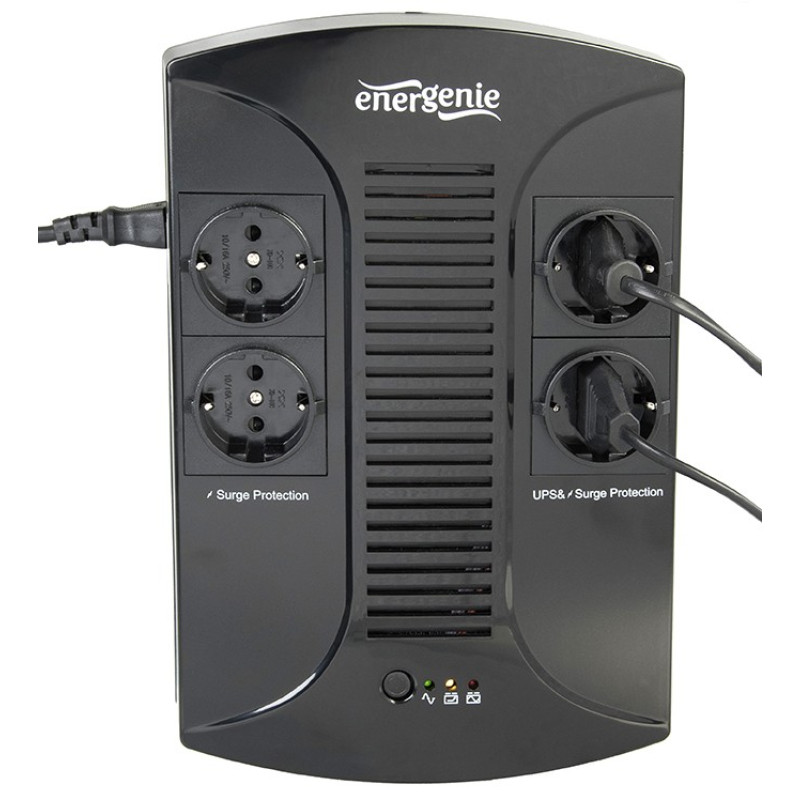

- Intelligent surge-, overload- and short-circuit protection on all 4 sockets
- UPS battery backup on 2 sockets ( optional 4 pcs )
- Audible and visual alarms
- LED status indication
- Intelligent battery management with overcharge and over-discharge protection
- Wall mountable
| Article | |
| Brand | Energenie |
| Product Code | EG-UPS-001 |
| INPUT / OUTPUT | |
| Output | 220 V AC ± 10%, 50 / 60 Hz ± 1% (220 V AC ± 5 % at inverter mode) |
| OPERATING ENVIROMENT | |
| Operating Conditions | 0°C~40°C, at humidity 20~90%RH non condensing |
| General | |
| Input | 220 V AC ± 25%, 50 / 60 Hz ± 10% |
| Product Weight | 4.5 kg |
| Sockets with UPS | 2 pcs ( optional 4 pcs ) |
| Power | 650 VA (390 W) |
| Backup time | 10...30 mins (depends on the load) |
| Battery | sealed lead-acid 12 V DC / 7Ah |
| Charge time | up to 8 hours |
| Charging current | up to 1.2 A |
| Switching time | less than 10 ms |

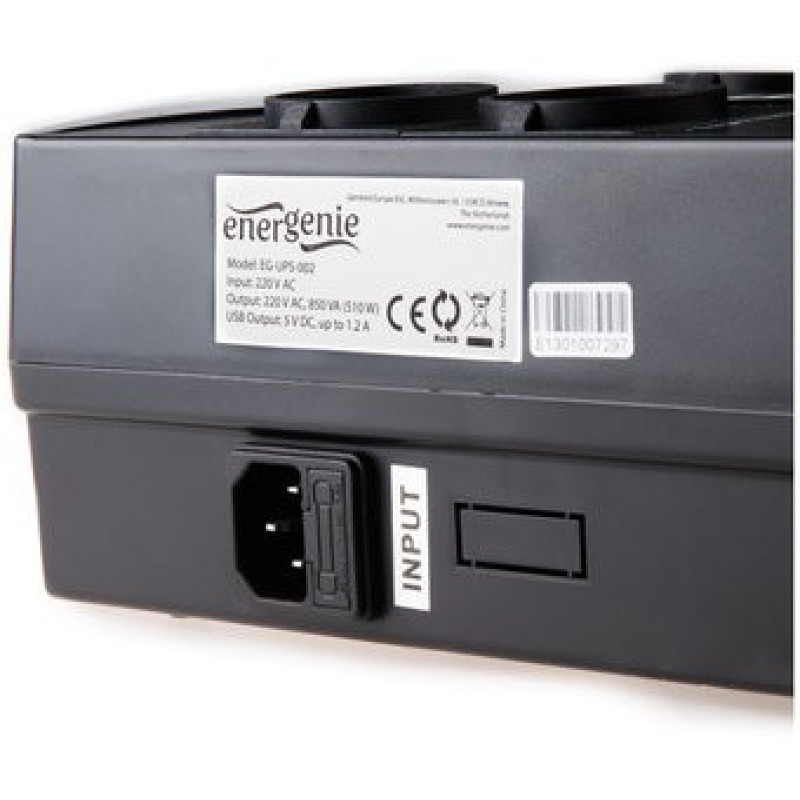

| Sockets | 1 x C13 (input), cable CEE 7/7P, 4 x Schuko (output) |
| Type | line interactive |
| Other functions | "Cold-start" function |
| Noise | < 45 dB at 1 m distance |
| Dimensions | 280 x 185 x 95 mm |
| Waveform | sine wave (AC mains), modified (square) sine wave (battery) |
