- Brand: White Label
- Product Code: HDMI-MX-4x4-4K60
- Availability: In Stock
Om te bestellen en prijzen te kunnen zien moet u zich registreren of inloggen.
To order and view prices you must register or login.
To order and view prices you must register or login.

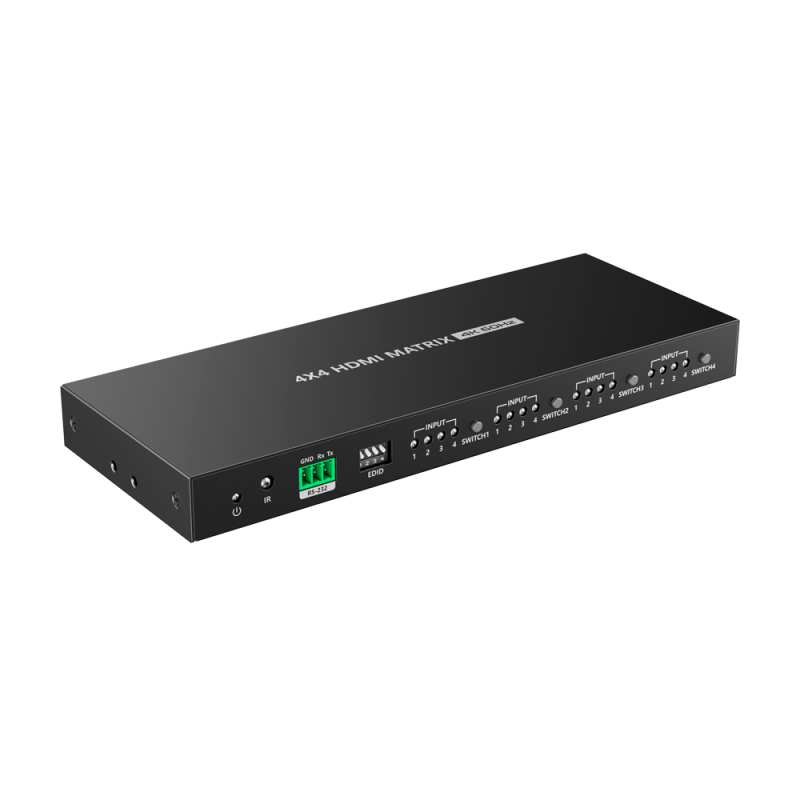

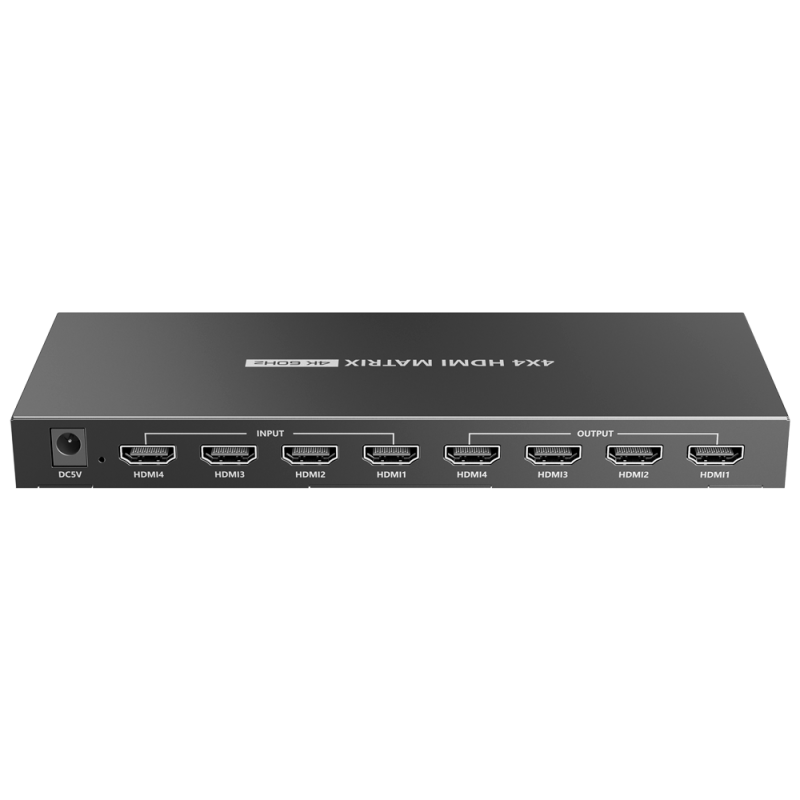

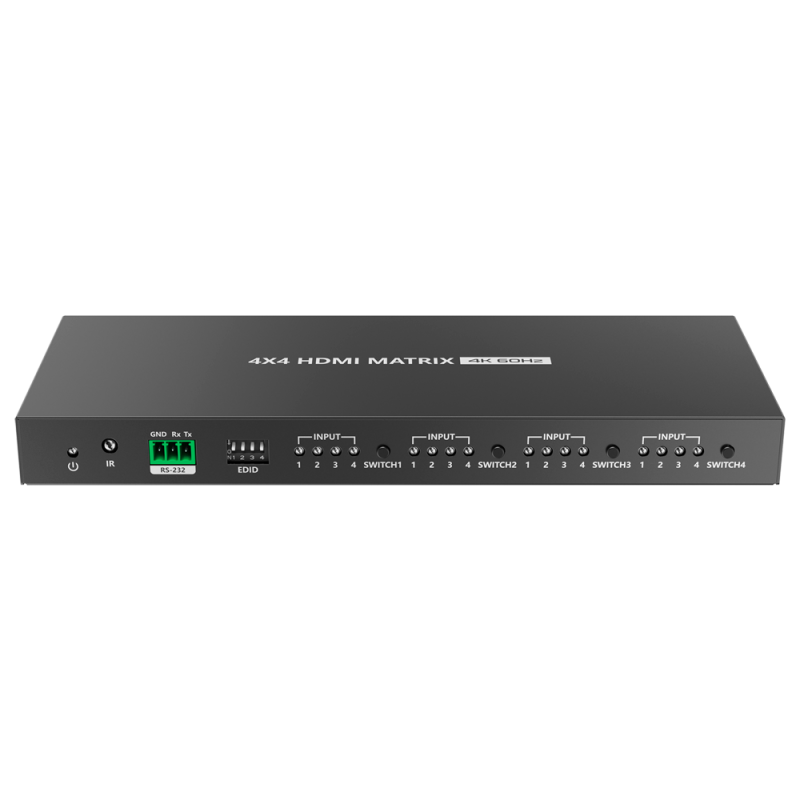

HDMI video matrix | 4 HDMI inputs | 4 HDMI outputs | Up to 4K (input and output) | Up to 4K (input and output) | Allows remote control
- HDMI Matrix 4 at 4
- 4 HDMI input
- 4 HDMI output
- Up to 4K@60Hz
- Allows remote control
- 1x Video Matrix
- 1x Power supply
- 1x User Manual
- 1x Remote control
- 2x Mounting Ear
- 6x Screw
- 2x Rounded Screw
- 1x Terminal block
| General | |
| Audio supported | LPCM7.1 DTS-HD DTS-Audio Dolby Digital plus Dolby TrueHD 7.1 Dolby Digital Dolby Atmos |
| Power | DC 5V/1A |
| Transmission speed | 18Gbps |
| Compatibility | HDMI 2.0 (HDR, YUV4):4:4) |
| Bandwidth | 600MHz |
| Video Resolution | Up to 4K@60Hz |
| Control | RS232 IR Buttons |
| Consumption | <4W |
| Inputs | 4 HDMI inputs |
| Protections | ESD Download per contact level 2 (±4KV) Air level discharge 3 (±8KV) IEC61000-4-2 Protection against lightning Surge protection |
| Dimensions | 210mm (H) x 80mm (W) x 21mm (D) |
| Outputs | 4 HDMI outputs |
