Advanced control module - Compatible with IP50 and IP200 series - IR, RS232 and KVM signal management - Video and audio signal management
  • Brand: BluStream
  • Product Code: ACM200
  • Availability: In Stock
Om te bestellen en prijzen te kunnen zien moet u zich registreren of inloggen.
To order and view prices you must register or login.

Advanced control module - Compatible with IP50 and IP200 series - IR, RS232 and KVM signal management - Video and audio signal management


  • BLUSTREAM
  • Advanced control module for video over IP of the IP50HD and IP200UHD series

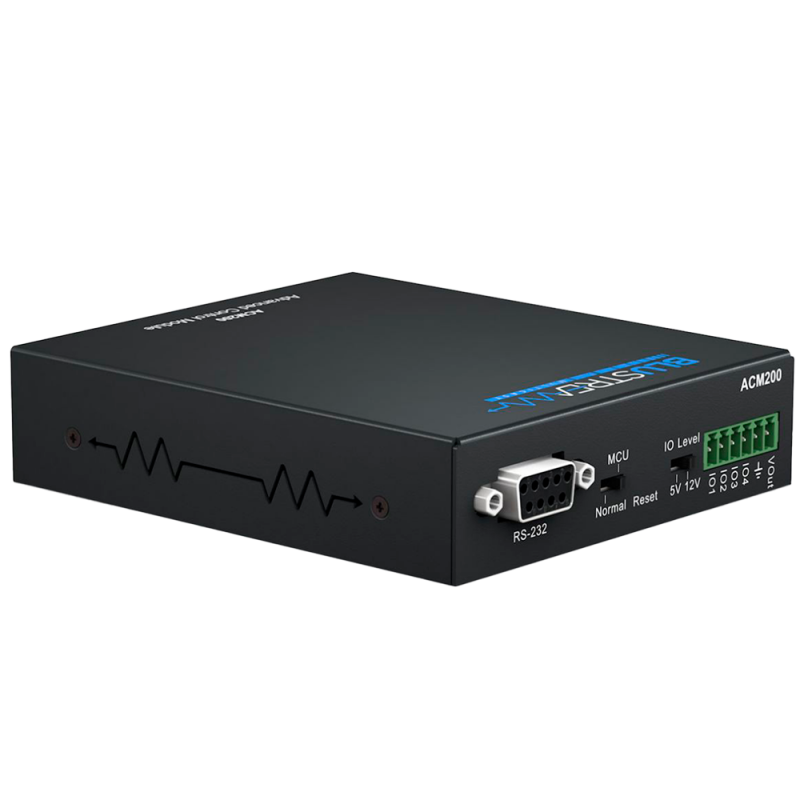

  • Control module ACM200
  • 1x IR control cable (3.5mm to 3.5mm)
  • 1x 6 Phoenix connector of [%VAR%] pins
  • 1x Mounting kit

alt


General
Control applications - iOS - Android
Dimensions 96mm (W) x 101mm (H) x 26mm (D)
Functionalities - Font selection by drag and drop - Video preview for active monitoring of system status - Advanced signal management for independent routing of IR, RS232, USB/KVM, audio and video - Automatic system configuration' - Video Wall for a matrix 9x9 (maximum)
Integration RS232 Multicast system control
IR Integration Multicast system control
LAN Inputs Connecting the existing network to the multicast video distribution network: - Improved performance - No advanced network configuration - Independent IP address per LAN connection - Simplified TCP/IP control of multicast system
PoE - 4.0W (Typical) - 4.5W (Maximum load)

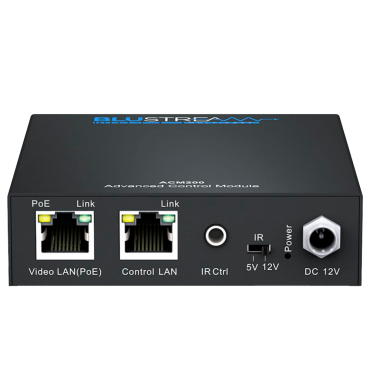

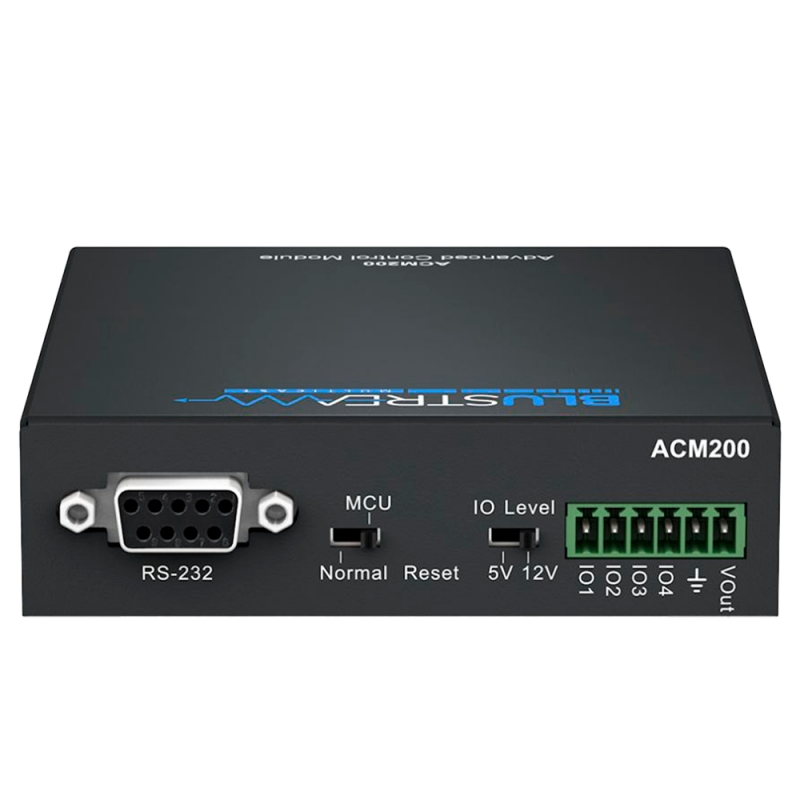

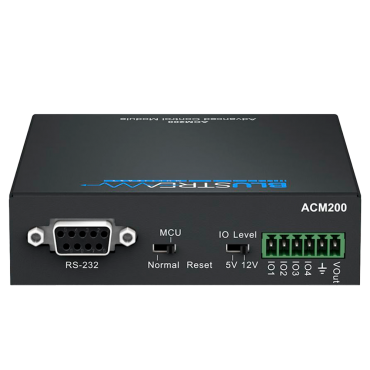

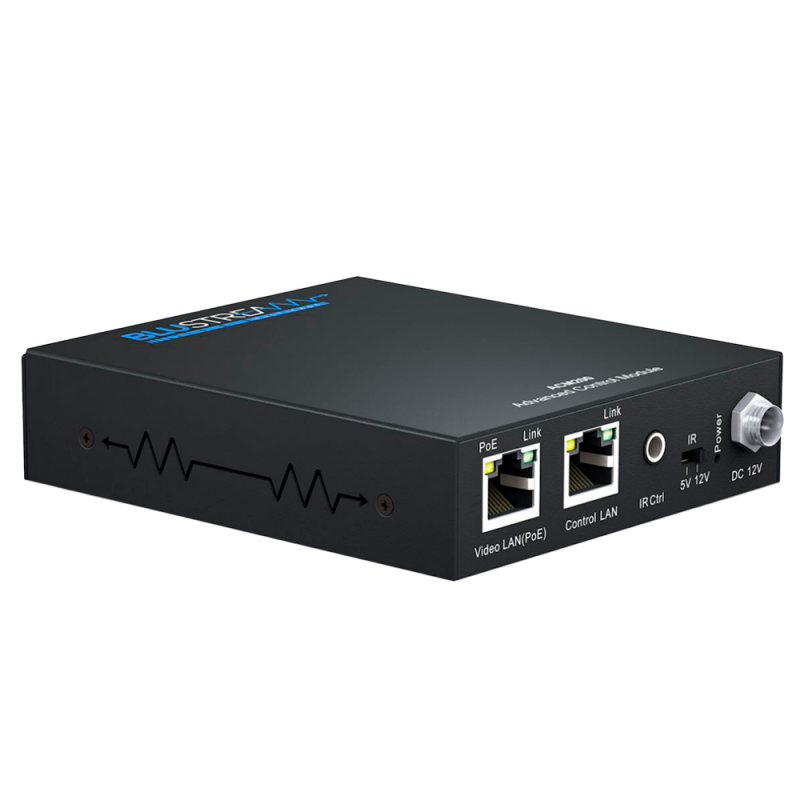

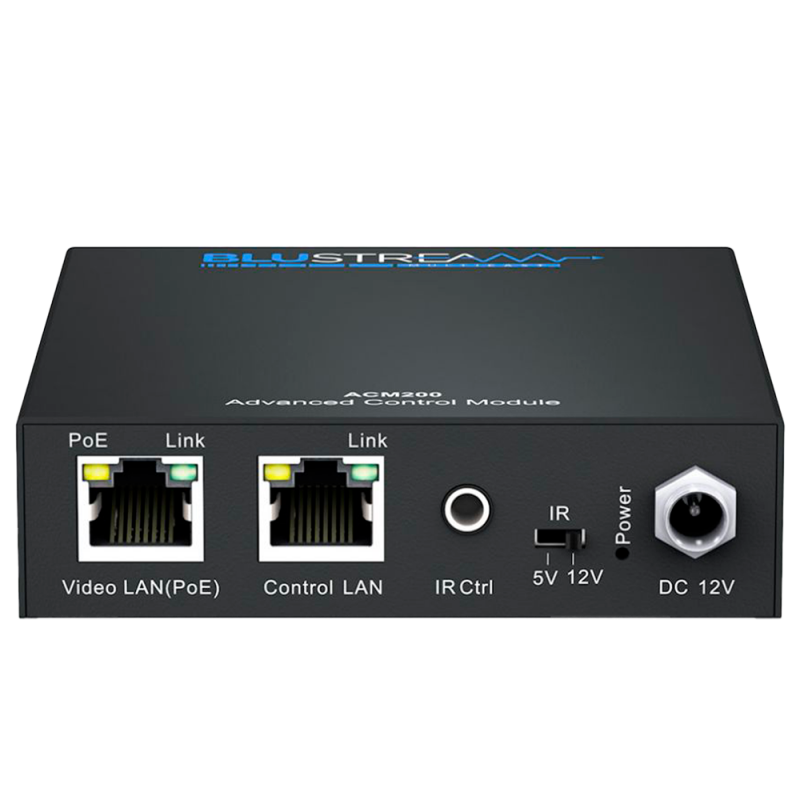

Ports - 2x LAN (RJ45) - 1x DB-9 female (RS232) - 1x Phoenix connector of 6 pins (RS232) - 1x 3.5mm (stereo jack)
Power Supply 12V/2A
Weight 0.6kg
Temp. operation 0ºC ~40ºC
