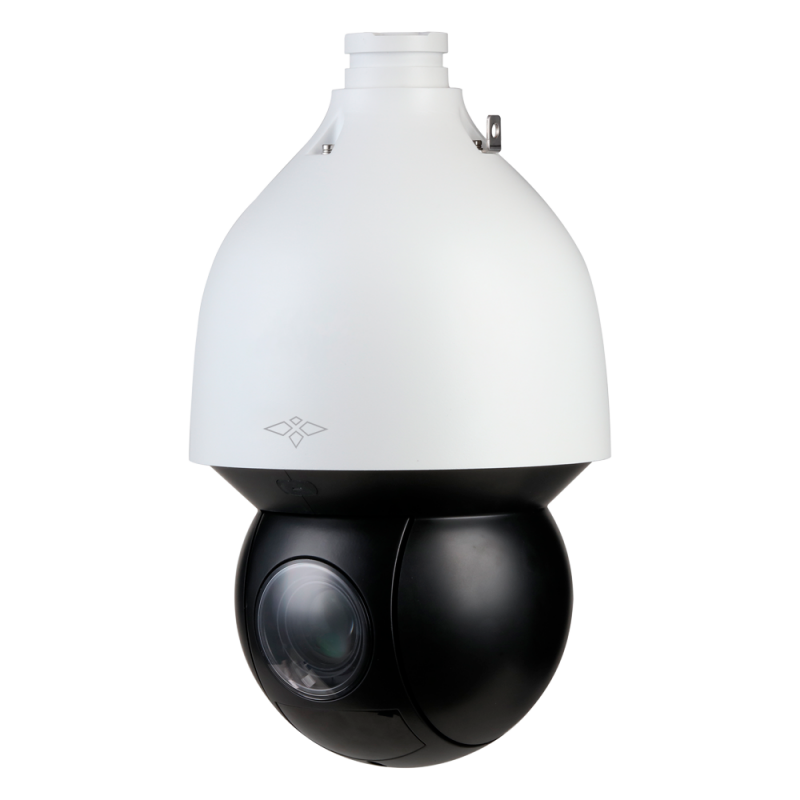

X-Security 4 Mpx Pro Range IP PTZ Camera - Varifocal lens 5.4~135 mm (optical zoom 25x) - IR 150 m | Starlight - IVS (Perimeter Protection) | SDM 4.0 - Face detection : Counting : Auto Tracking - IP67 | IK10 | Audio | Alarms | PoE+ | MicroSD
  • Brand: X-Security
  • Product Code: XS-IPSD5025ITA-4U-WIZ
  • Availability: In Stock
Om te bestellen en prijzen te kunnen zien moet u zich registreren of inloggen.
To order and view prices you must register or login.

X-Security 4 Mpx Pro Range IP PTZ Camera - Varifocal lens 5.4~135 mm (optical zoom 25x) - IR 150 m | Starlight - IVS (Perimeter Protection) | SDM 4.0 - Face detection : Counting : Auto Tracking - IP67 | IK10 | Audio | Alarms | PoE+ | MicroSD


  • X-Security
  • WizSense PTZ IP Camera
  • 4 Megapixel (2560x1440)
  • Pro range
  • 1/1.8" Progressive Scan CMOS
  • 5.4–135 mm Varifocal lens
  • 25X Optical zoom
  • Starlight technology, color image in low light conditions
  • 0 lux
  • IR Range 150 m
  • Compression H.264H / H.264B / Smart H.265+ / Smart H.264+ / H.265 / H.264 / MJPEG
  • IVS (Perimeter protection)
  • SMD Smart Search 4.0
  • Face detection
  • People count
  • Acupick
  • Video metadata
  • Auto Tracking
  • Audio
  • Alarms
  • WDR (120 dB)
  • 3D DNR
  • IR Cut
  • MicroSD card slot up to 512GB
  • WEB, CMS (DSS/ Smart PSS Lite/ DMSS), Smartphone and NVR interface
  • ONVIF Compatible
  • RJ-45 10/100 BaseT
  • PoE+ (IEEE802.3at)
  • Weatherproof IP67
  • Vandal proof IK10
  • Surge protection 6000 V
  • Wall bracket included PFB305W



  • IP motorised dome camera
  • CD with software and instructions
  • Bracket PFB305W included
  • Power adapter

alt


General
Acupick Uses deep learning algorithms and works with backend devices to accurately match targets, such as people and motor vehicles, and search live and recorded video to quickly locate targets.
Dimensions 332 mm (H) x 190 (Ø) mm
EIS (Image Stabilizer) Yes
Focus Auto; semi-auto; manual
SMD (Smart Motion Detection) SMD 4.0, advanced motion detection
Video Metadata Detects motorized and non-motorized vehicles, human faces and bodies. It also tracks, takes snapshots, uploads high quality face images and optimizes images. Extracts motor vehicle attributes, detecting up to 10 attributes.
Viewing Angle (FOV) H: 61.6º~3.6º, V: 35.7º~2º, D: 66.6º~4º
Audio Compression G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1; PCM
Image sensor 1/1.8" Progressive Scan CMOS
IVS (Perimeter Protection) Tripwire; intrusion; fence crossing detection; loitering detection; abandoned/lost object; fast movement; parking detection; people gathering; vehicle/human alarm classification
Pan/Tilt Range Horizontal: 0°~360° no end Vertical: -15°~90°, auto flip 180º
Auto Tracking Yes
Range performance 1724 m (D), 689 m (O), 344 m (R), 172 m (I)
Main Stream Rate 4Mpx/3Mpx/1080p/1.3Mpx/720p @(1–25/30 fps)
Power Supply DC 24 V / 2.5 A, max. 21 W PoE+ (IEEE802.3at)
Resolution 4 Megapixel (2560x1440)
Extra Stream rate 1: D1/VGA/CIF @(1–25/30 fps) / 2:1080p/1.3Mpx/720p @(1–25/30 fps)
Network Interface Ethernet 10/100 BaseT
Remote Access WEB, CMS (DSS/PSS), Smartphone and NVR interface
Preset positions 300, 8 tour, 5 Pattern, 5 Scan
Weight 4.7 Kg
Communication ONVIF (profile S, G, T), CGI, SDK
Bitrate H264: 96 Kbps~14848 Kbps H265: 38 Kbps~8960 Kbps
Electronic shutter 1 s~1/30.000 s
Lens Varifocal 5.4~135 mm (optical zoom 25x))
Speed between Presets Horizontal: 400°/s Vertical: 300°/s
Audio 1 Input / 1 Output
Day / Night Removable mechanical ICR filter
Minimum illumination 0.001 Lux @(F1.6, AGC ON) 0 lux with IR range 150 m
Digital Zoom 16X
Manual speed Horizontal: 0.1°~300°/s Vertical: 0.1°–140°/s
Image improvements WDR (120dB), 2D/ 3DNR, HLC, BLC, AWB, AGC, ROI, Rotation 180º, Privacy masking
Temp. operation -40º C ~ +70º C
Alarms 2 inputs/ 1 outputs
Face Detection Supports face detection, face bounding box, snapshot capture, facial snapshot uploading, facial image enhancement and selection of a preferred image from a group of snapshots. It also supports attribute extraction, which allows 6 attributes and 8 expressions to be detected. Attributes are gender, age, glasses, mask, mustache and expressions. The expressions are anger, sadness, hatred, fear, surprise, calm, happiness and confusion. A face cropping feature is also available, which allows you to crop one face at a time and customize the size to be a one-inch photo. Supported methods for capturing snapshots are real-time capture, quality first and selection of a preferred image from a group of snapshots.
Internal memory MicroSD card slot up to 512 GB
People Counting Uses advanced image processing technology to extract detailed information from images. The extracted information is then processed by advanced deep learning algorithms to analyze and detect human bodies and track targets in real time. The camera provides separate individual input and output statistics with a count accuracy of up to 95 %.
Degree of protection Weatherproof IP67 Vandal proof IK10 Surge protection 6000 V
Compression H.264H; H.264B; Smart H.265+; Smart H.264+; H.264; H.265; MJPEG (ExtraStream); Smart H.264+ Smart
