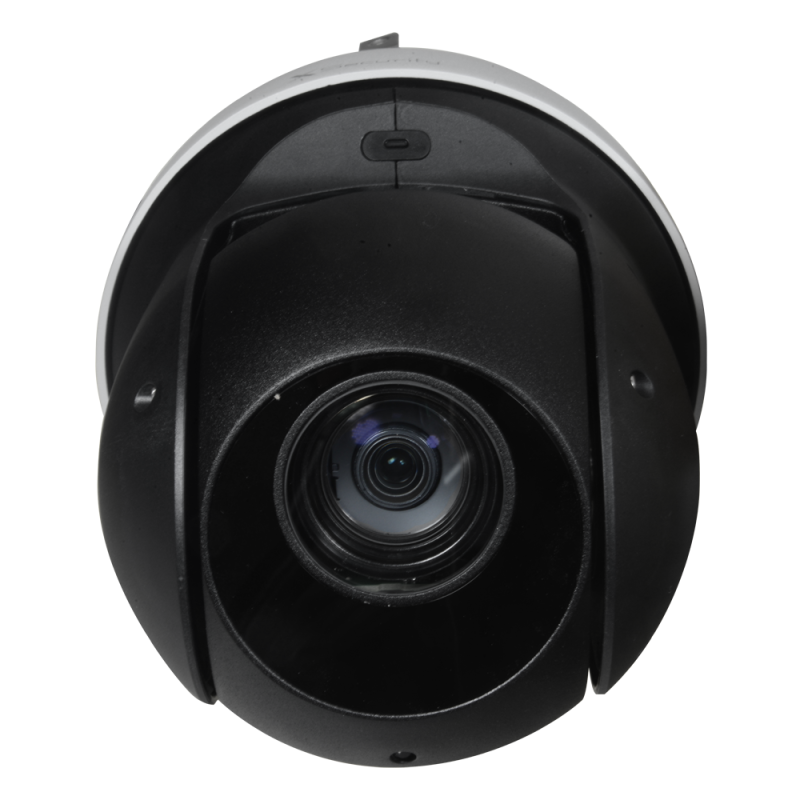

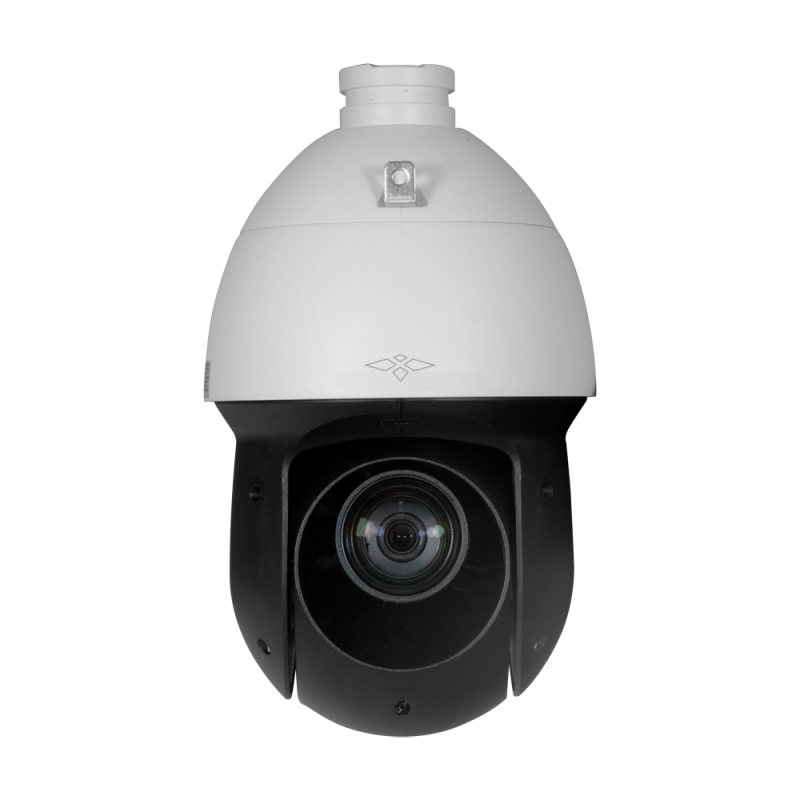

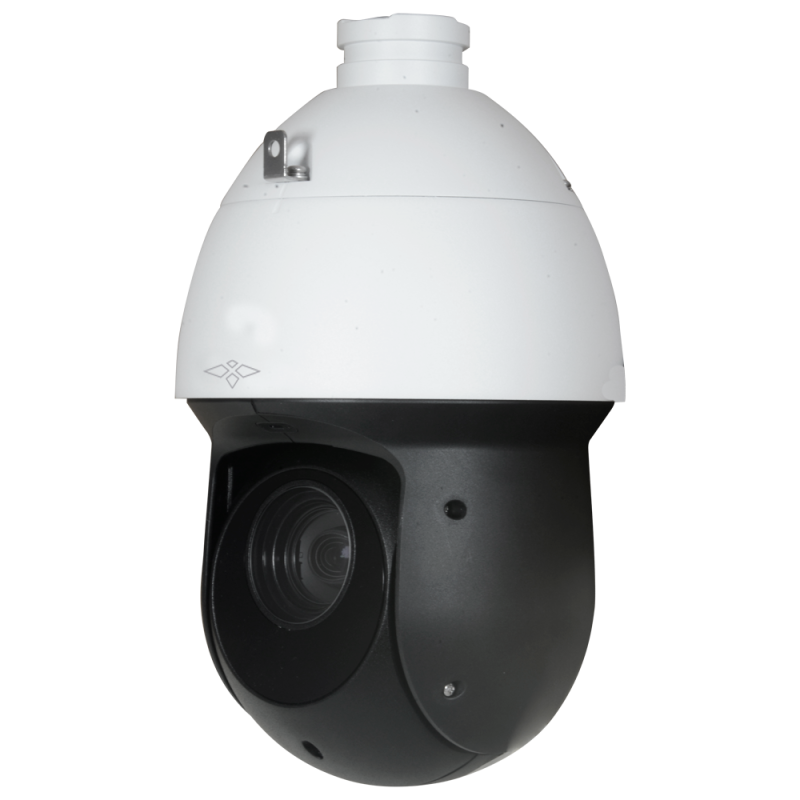

PTZ X-Security 2 Mpx Ultra Range IP Camera | 1/2.8” STARVIS CMOS | 5-80mm (16x) Vari-focal lens | 100 m IR distance. > H.265+ coding | Smart Features | IP66 | Audio | Alarms
  • Brand: X-Security
  • Product Code: XS-IPSD6316SIWHA-2U-AI
  • Availability: In Stock
Om te bestellen en prijzen te kunnen zien moet u zich registreren of inloggen.
To order and view prices you must register or login.

PTZ X-Security 2 Mpx Ultra Range IP Camera | 1/2.8” STARVIS CMOS | 5-80mm (16x) Vari-focal lens | 100 m IR distance. > H.265+ coding | Smart Features | IP66 | Audio | Alarms


  • X-Security
  • PTZ IP Camera
  • 2 Megapixel (1920 × 1080)
  • Ultra Range
  • 1/2.8" Progressive Scan CMOS
  • 16X Optical zoom
  • 5–80 mm Varifocal lens
  • High sensitivity Starlight
  • 0.005 Lux
  • IR Range 100 m
  • Compression H.264H/H.264B/Smart H.265+/H.265/MJPEG
  • RJ-45 10/100 BaseT
  • PoE+ 802.3at
  • IVS (Perimeter protection)
  • Face detection
  • SMD
  • Weatherproof IP66
  • Alarms
  • SD card recording
  • WEB, CMS (DSS/PSS), Smartphone and NVR interface
  • ONVIF Compatible
  • Wall bracket included



  • IP motorised dome camera
  • CD with software and instructions
  • Wall bracket

alt


General
Internal storage Micro SD card slot (Max 256 GB)
Protection IP66, TVS 6000V lightning proof; surge protection; Transient voltage protection
SMD (Smart Motion Detection) Yes
Temp. functioning -40º C ~ +70º C
Image sensor 1/2.8" STARVIS™ CMOS
IVS (Perimeter Protection) Tripwire; intrusion; cross-fence detection; loitering detection; abandoned/lost object; fast motion; parking detection; people gathering; vehicle/human alarm classification
Power DC 12 V / 3 A, PoE+(802.3at)
Main Stream Rate 1080p / 960p / 720p (1-25/30 fps) Sub flow 1: D1 / VGA / CIF (1-25/30 fps)
Resolution 1080p (1920 × 1080); 960p (1280 960); × 720p (1280 720); × D1 (704 576/704 × 480); × (640 VGA 480)
Compatibility DH-SD, Compatible ONVIF
Extra Stream rate 1080p / 960p / 720p (1-25/30 fps)
Network Interface Ethernet 10/100 BaseT
Remote Access WEB interface, CMS software, mobile application and NVR
Preset positions 300, 5 auto pattern, 8 auto tour, 5 auto scan
Weight 2,4 Kg
Bitrate H.264: 1792 kbps–8192 kbps H.265: 512 kbps–5632 kbps
Lens Varifocal 5 ~ 80 mm (Optical zoom 16X) Auto Iris, Auto Focus
Speed between Presets Horizontal: 240° /s, Vertical: 200° /s
Day / Night Removable ICR mechanical filter
Minimum illumination Colour: 0.005 lux@F1.6 B/W: 0.0005 lux@F1.6 0 lux (IR light on)
Pan/Tilt Range Horizontal: 0°~360°, Vertical: -15°~90° auto flip 180°
Digital Zoom 16 X
Manual speed Horizontal: 0.1°~200° /s, Vertical: 0.1°~120° /s
Image improvements WDR (120dB),2D/ 3DNR, HLC, BLC, ATW, AGC, Privacy Mask
Audio compression PCM; G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1; G729; G723
Face Detection Supports face detection, optimization, tracking, image capture, high quality facial snapshot uploading and facial enhancement; Supports attribute extraction. 6 attributes and 8 expressions: Gender, age, glasses, expressions (angry, sad, hate, fear, surprise, calm, happy and confused), mask, mustache; supports facial cropping: Face, one inch photo. Capture strategies include real-time capture, optimization and quality first. Supports up to 5 facial databases; records people either one by one or in batches; establishes face similarity; compares faces with 10.000 faces.
Dimensions 270 mm (H) x 160 (Ø) mm
Alarm 2 inputs / 1 NO/NC relay
Compression H.264H; H.264B; Intelligent H.265+; H.265; MJPEG (Undercurrent 1); Intelligent H.264+; H.264M
