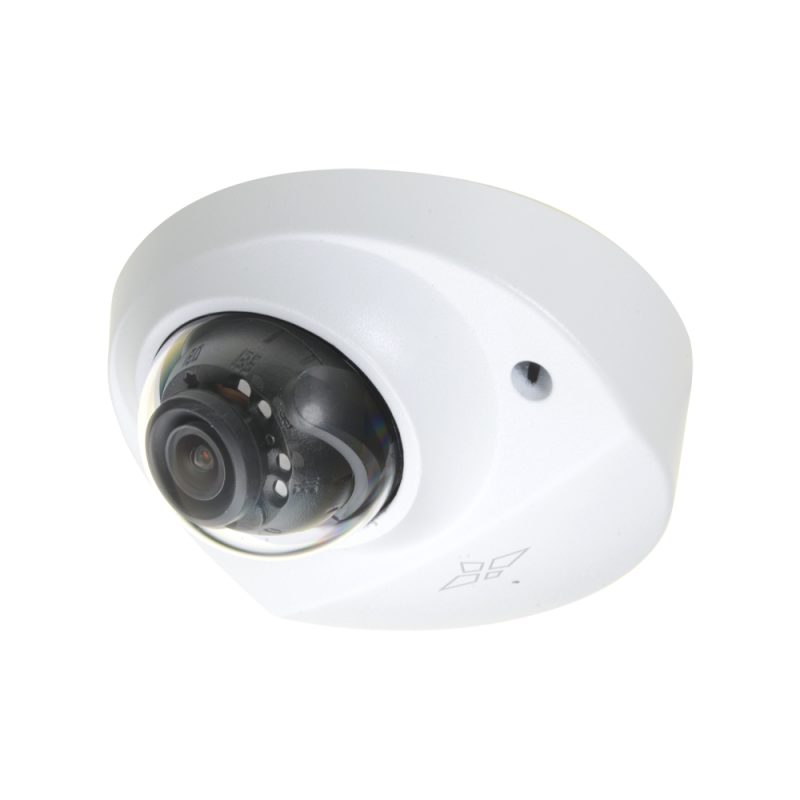

X-Security IP Dome Camera - 4 Megapixel (2688x1520) - 2.8 mm Lens - PoE IEEE802.3af | H.265+ | Integrated microphone - Weatherproof IP67 Anti-vandal IK10
  • Brand: X-Security
  • Product Code: XS-IPD909SWHA-4U
  • Availability: Discontinued
Om te bestellen en prijzen te kunnen zien moet u zich registreren of inloggen.
To order and view prices you must register or login.

X-Security IP Dome Camera - 4 Megapixel (2688x1520) - 2.8 mm Lens - PoE IEEE802.3af | H.265+ | Integrated microphone - Weatherproof IP67 Anti-vandal IK10


  • X-Security
  • IP camera
  • ULTRA Range
  • 1/3" Progressive CMOS
  • 4 Megapixel (2688x1520)
  • 2.8 mm Lens
  • High sensitivity Starlight
  • 0.005 Lux
  • IR Array Range 50 m
  • Compression H.265+/H.265/H.264+/H.264
  • RJ-45 10/100 BaseT
  • PoE IEEE802.3af
  • Weatherproof IP67
  • Vandal proof IK10
  • Recognition of humans and vehicles
  • Intelligent motion detection
  • WDR
  • IR Cut
  • Integrated microphone
  • WEB Interface, CMS (DSS/ PSS), Smartphone and NVR
  • ONVIF Compatible


  • X-Security IP camera
  • User instructions
  • CD with software and instructions
General
Dimensions 55 mm (D) x 109 (Ø) mm
Image sensor 1/3” Progressive CMOS
Main Stream Rate 2688x1520 (1~25/30 FPS)
Maximum resolution 4 Megapixel (2688x1520)
Power Supply DC 12 V / 475 mA, PoE IEEE802.3af
Extra Stream rate 2º: 704x576 (1~25 FPS), 704x480 (1~30 FPS); 3º: 1280x520 (1~25/30 FPS)
Network Interface Ethernet 10/100 BaseT
Remote Access WEB, CMS (DSS/PSS), Smartphone and NVR interface
Interoperability ONVIF
Weight 380 g
Memory Slot for Micro SD card (Max 256 GB)
Lens 2.8 mm (H: 103º)(V:55º)
Audio Built-in microphone
Day / Night Removable mechanical ICR filter
Minimum illumination 0.005 Lux (Colour)
Image improvements WDR, BLC, HLC, AWB, AGC, 3D-DNR, ROI , Smart IR
Infrared lighting 0 Lux / IR LEDs (30 m)
Temp. operation -40º C ~ +60º C
Alarm No
Degree of protection Weatherproof IP67, Anti-vandal IK10
Compression H.265+/H.265/H.264+/H.264
