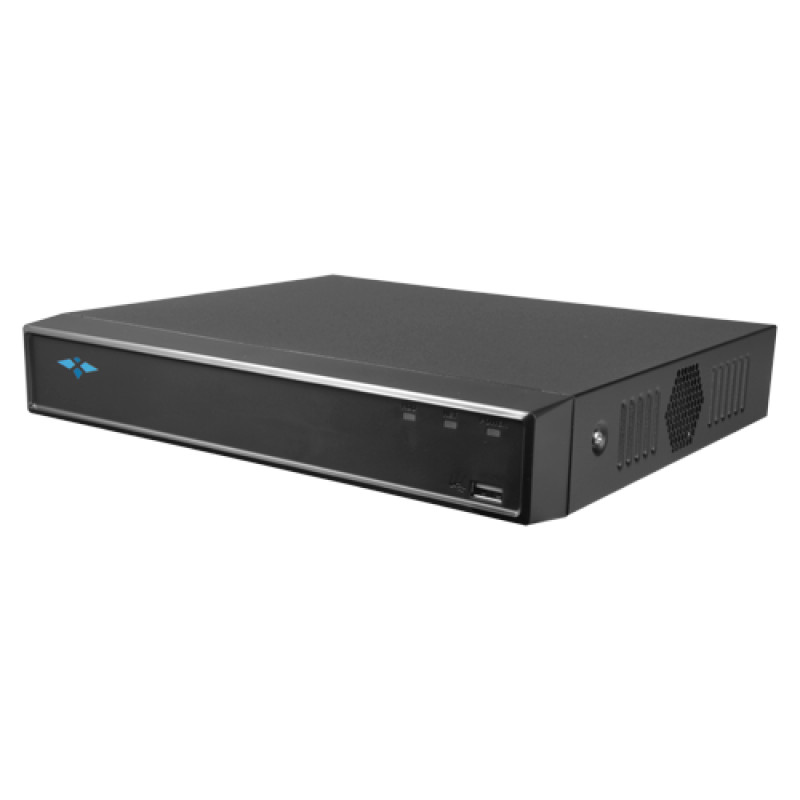

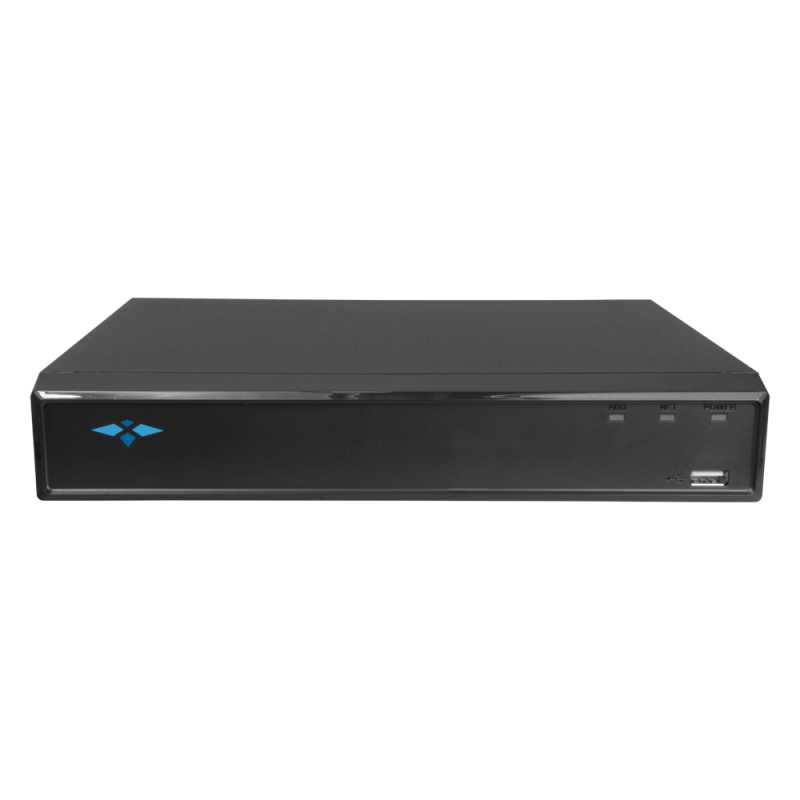

X-Security NVR for IP cameras - 8 CH IP and 8 PoE ports - Maximum recording resolution 8 Mpx - Compression H.265 / H.264 - Outputs 4K HDMI & VGA - Supports 1 hard disk
  • Brand: X-Security
  • Product Code: XS-NVR2108-S38P
  • Availability: In Stock
Om te bestellen en prijzen te kunnen zien moet u zich registreren of inloggen.
To order and view prices you must register or login.

X-Security NVR for IP cameras - 8 CH IP and 8 PoE ports - Maximum recording resolution 8 Mpx - Compression H.265 / H.264 - Outputs 4K HDMI & VGA - Supports 1 hard disk


  • X-Security
  • NVR Recorder for IP
  • 8 CH
  • 80 Mbps bandwidth supported
  • Maximum resolution 8 Megapixel
  • Compression H.265 / H.264
  • VGA and HDMI 4K output
  • IP Dual Stream Access
  • Mouse
  • Space for 1 HDD
  • 8 PoE ports IEEE802.3af/at
  • WEB, CMS (DSS/PSS), Smartphone and NVR interface
  • ONVIF Compatible



  • X-SECURITY NVR
  • Mouse
  • Ethernet Cable
  • AC/DC adapter 48 V-53 V / 2.0 A
  • User instructions
  • CD with manual and software

alt


General
AI functions Perimeter protection / SMD Plus
Dimensions 47,6 (H) x 260 (W) x 232,7 (D) mm
ONVIF T/S/G Profile
Perimeter performance of AI per camera (Number of Channels) 4
SMD Plus through camera SMD Plus of 4 channels (AI per camera), secondary filtering for humans and motor vehicles
Inputs for IP cameras LAN port up to 8 channels
PoE 8 PoE ports IEEE802.3at/af
Power Supply DC 48 V-53 V / 2.0 A
Remote Access Web browser, mobile phone application or PSS software
Weight 1,94 Kg (without HDD)
Communication 2x USB 2.0 (Mouse and backup) /1 RJ45 10/100M (Ethernet)
Video compression format Smart H.265 / H.265 / Smart H.264 / H.264
Video outputs 1 HDMI Full HD, 1 VGA
Total bandwidth 80 Mbps record
Bidirectional audio 1 input, 1 output, RCA
Decoding capacity 1-channel 12MP@30 fps; 1-channel 8MP@30 fps; 2-channel 5MP@30 fps; 3-channel 4MP@30 fps; 6-channel 1080p@30 fps
Recording resolution 12MP / 8MP /5MP / 4MP / 3MP / 2MP / 720p / D1
Internal memory 1 SATA HDD 3.5" of up to 16 TB (not included)
