Explosion-Proof Cable - Length 1.5m - 316L Stainless Steel - Degree of Protection IP68 - ATEX certified
  • Brand: Zuoan
  • Product Code: CB-ZANXG-ATEX
  • Availability: On Request
Om te bestellen en prijzen te kunnen zien moet u zich registreren of inloggen.
To order and view prices you must register or login.

Explosion-Proof Cable - Length 1.5m - 316L Stainless Steel - Degree of Protection IP68 - ATEX certified


  • Explosion-Proof Cable
  • Length 1.5 m
  • Flexible
  • Special for installations in explosive atmospheres or corrosive environments
  • 316L Stainless Steel
  • Air pressure up to 106 Kpa
  • Outlet port G3/4
  • Degree of protection IP68
  • ATEX certified

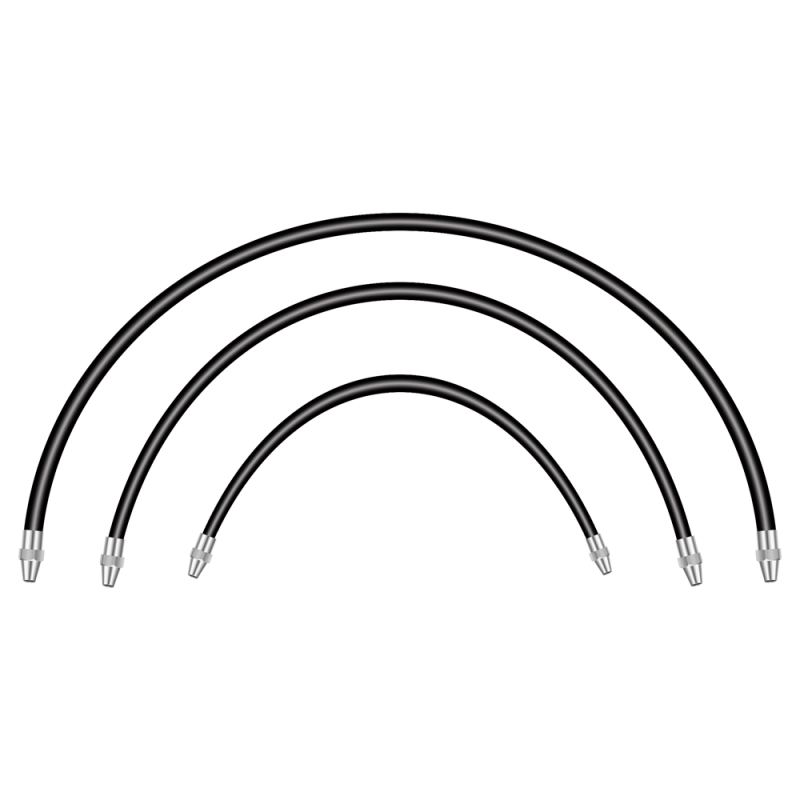

This Explosion proof flexible tube is used between explosion-proof cameras and explosion proof junction box.


It is made of stainless 316L.



  • cable hose

alt


Article
Brand Zuoan Electronics Co., Ltd.
Product Code CB-ZANXG-ATEX
General
Material 316L Stainless Steel
Protection Class IP68
Air pressure 80Kpa ~ 106Kpa

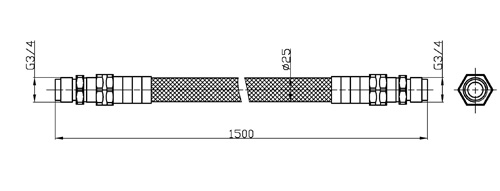

Connector size G3/4 (NPT3/4)
Ambient Temperature -25 to +60℃
Length 1.5m
Relative humidity ≦95% (no condensation)
Weight 1.2 Kg
Certificate Mark Ex e IIC Gb
Standards IEC/EN60079
