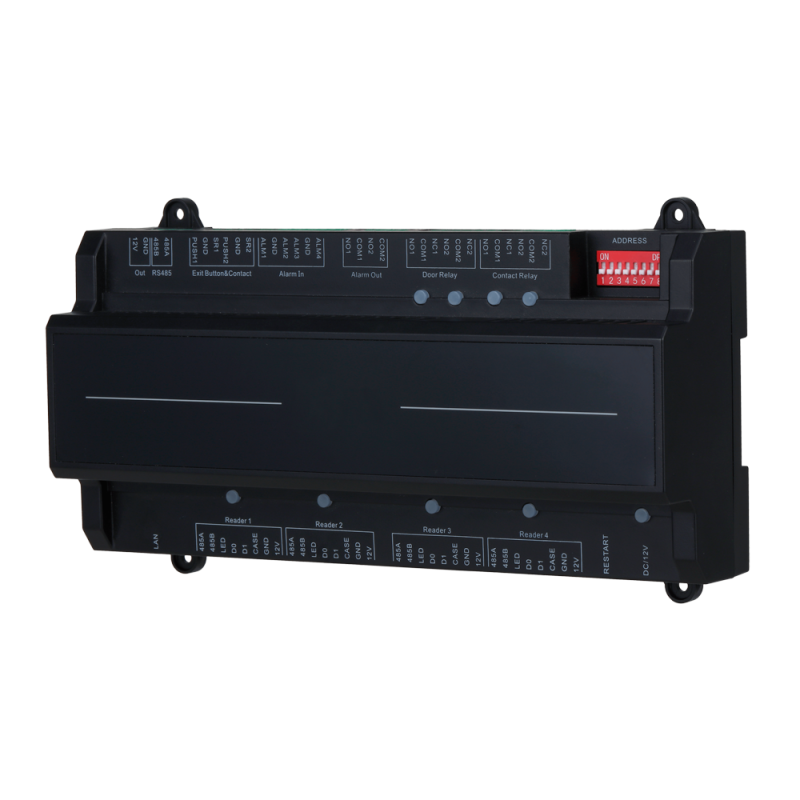

Biometric access controller - Access by fingerprint, card or password - TCP/IP communication | PoE - 4 readers by Wiegand | 4 readers by OSDP - Relay output for two doors - SmartPSS Software
  • Brand: X-Security
  • Product Code: XS-AC1202-C
  • Availability: Discontinued
Om te bestellen en prijzen te kunnen zien moet u zich registreren of inloggen.
To order and view prices you must register or login.

Biometric access controller - Access by fingerprint, card or password - TCP/IP communication | PoE - 4 readers by Wiegand | 4 readers by OSDP - Relay output for two doors - SmartPSS Software


  • X-Security
  • Access Controller
  • Management of 2 doors
  • Capacity 100.000 users and 500.000 records
  • Supports up to 4 Wiegand or OSDP readers
  • TCP/IP Communication
  • Input of 2 pushbuttons, 2 door sensors and 4 auxiliary inputs
  • 2 relay outputs and 4 alarm outputs
  • Relay configuration NO/NC
  • Compatible with SmartPSS software for management of access control and reports


  • X-Security Access Controller
  • Mounting material
  • User instructions


General
Power DC 9~15 V / 500 mA max.
Hardware CPU 32bit CPU
Identification modes Fingerprints, Card and/or passwords
Weight 6000 g
Communication TCP/IP | OSDP | Wiegand
Records 500.000 registers
Temp. operation -30º C ~ +60 ºC
Software SmartPSS
Capacity Up to 3.000 fingerprints and 100.000 cards/passwords Up to 100.000 users
Inputs 4 x Wiegand 26/34 IN, 4 x OSDP, 2 x door sensor, 2 x open button, 4 x alarm input
Proximity card EM RFID (125 KHz) / MF (13,56MHz)
Dimensions 210 (W) x 116 (H) x 51 (D) mm
Outputs 2 x relay output, 4 x alarm output, 1 x 12 V DC
